8P排針母座 間距:1.27mm【ROHS】
NT$50
Part No：
10485
Product No：
DS1065-01-1*08S8BV
品牌：
說明：
技術文件：
包裝單位：
5 只
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 205 | 167-3-32 |  | 167-3-45A | |
| 光復門市 | 431 | 170-2-29-A | | 170-2-02旁 | |
產品特性
- 特性
排針母座 Pitch:1.27mm (黑座高4.3mm) 180°
Material
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass
Plating: Gold plated: 2u" over 50u" nickel
Tin plated: 50u" over 100u" nickel
Electrical Characteristics
Current Rating: 1 AMP
Insulator Resistance: 5000MΩmin. at DC 500V
Contact Resistance: 20mΩmax. at DC 100mA
Operating Temperature: -55℃~+105℃
Features
●Custom design offered.
●Two different print for surface mount desing.
●Choice of through-hole and surface mount.
●Staright type
●Mates with 0.46mm square pin.

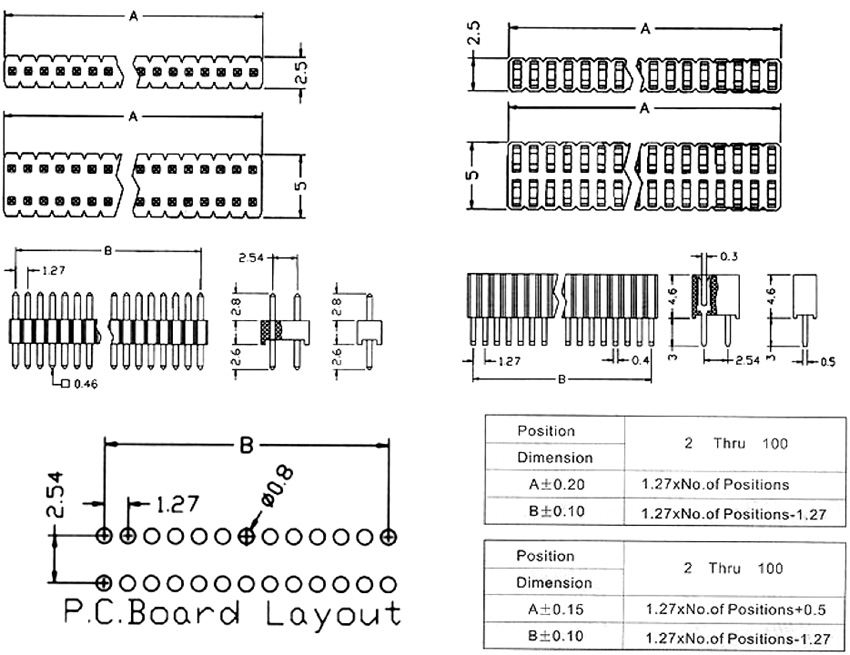

Dimensions
