90° 滑動開關 ON-ON
NT$67
Part No：
10745
Product No：
5MS1S120M6QE
品牌：
TAIWAY
說明：
技術文件：
包裝單位：
2 個
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 109 | 167-2-09 |  | 167-2-36A | |
| 光復門市 | 198 | 168-1-32-J | | 168-1-32A下 | |
產品特性
- 特性

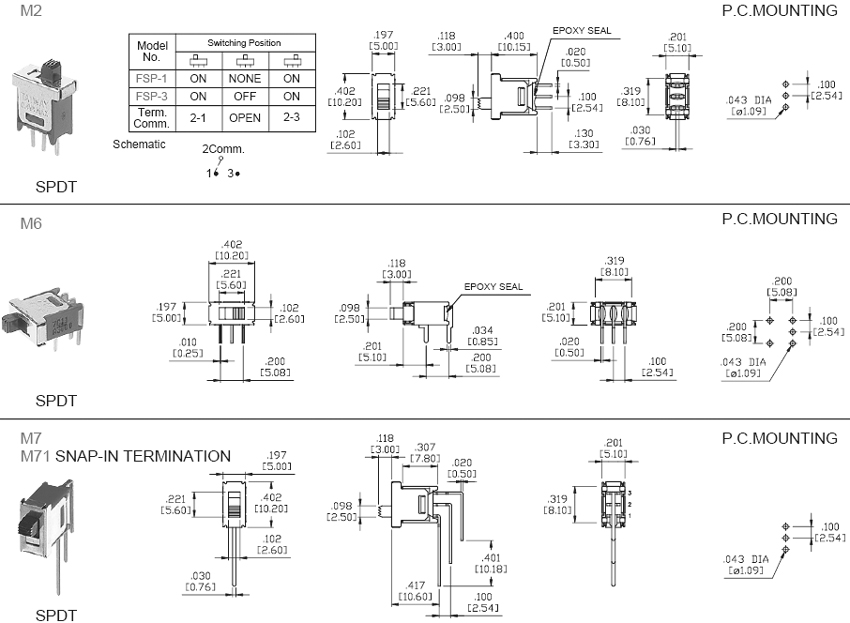

Sub-Miniature Slide Switches Series 500A
SPECIFICATIONS
CONTACT RATING: Refer to "Contact Material Options" for more info.
CONTACT RESISTANCE: 20m max. initial @ 2-4VDC
100mA for both silver and gold plated contacts.
ELECTRICAL LIFE: 30,000 actuations at full load.
INSULATION RESISTANCE: 1,000M min.
DIELECTRIC STRENGTHS: 1,500V RMS @ sea level.
OPERATION TEMPERATURE:-30°C to +85°C.
MATERIALS
CASE: Diallyl phthalate(DAP)(UL 94V-0).
HOUSING: Brass, tin plated.
SLIDE HANDLE: Nylon 6/6, black standard.
TERMINAL SEAL: Epoxy.

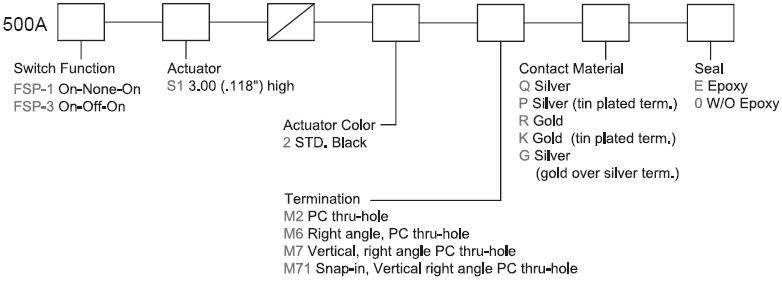

HOW TO ORDER SYSTEM

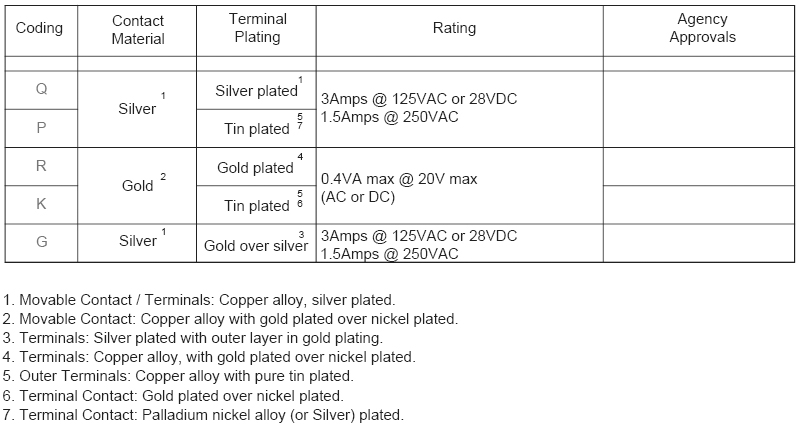

CONTACT MATERIAL OPTIONS
