單面鋁箔膠帶(單面膠導電)
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 0 | 167-2-41 |  | | |
| 光復門市 | 3 | 170-1-31 | | |
- 特性

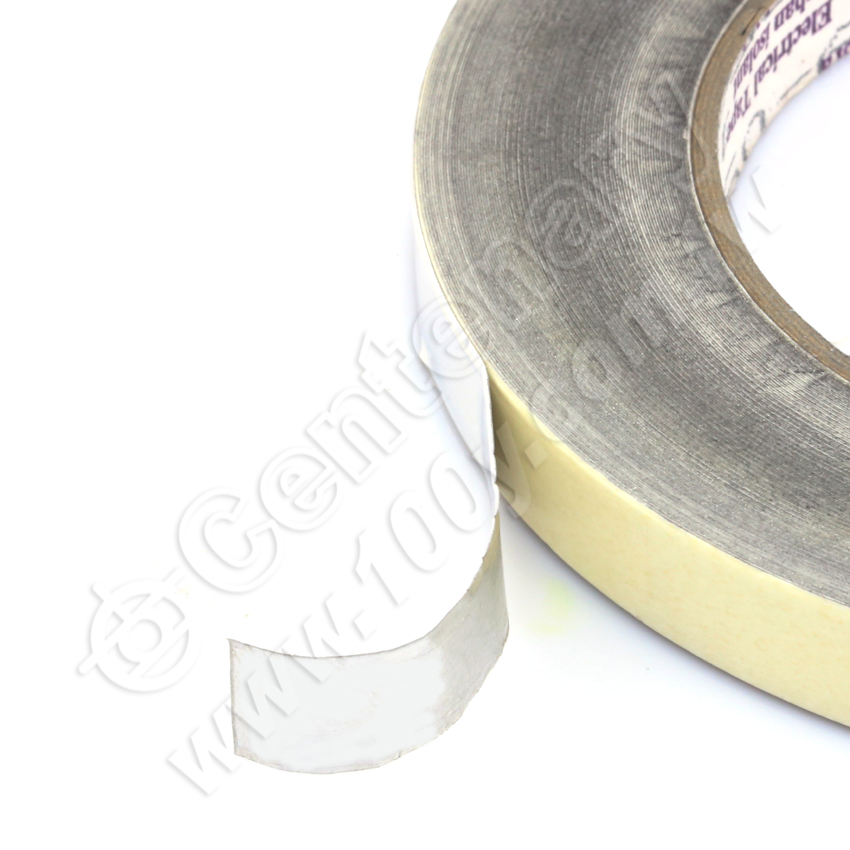

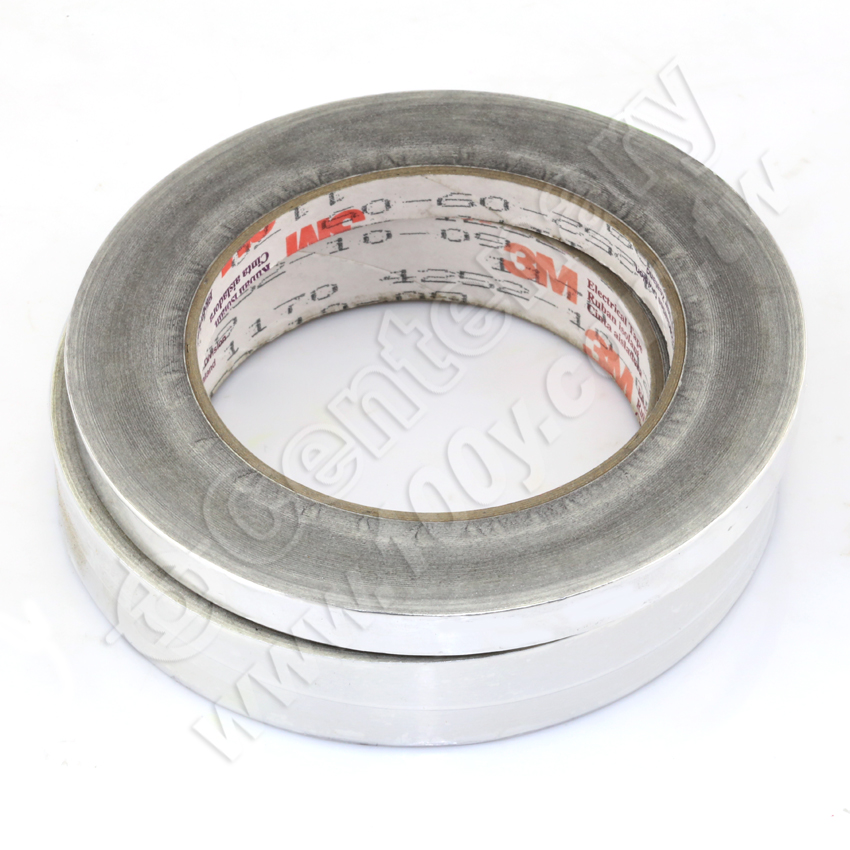

3M 1170 單面鋁箔膠帶
Product Description
3MTM 1170 Tape consists of a 1-ounce deadsoft aluminum foil backing and a unique electrically conductive pressure-sensitive acrylic adhesive.
• Deadsoft 1-ounce aluminum foil backing
• Conductive acrylic adhesive
• Supplied on a removable liner for easy handling and diecutting
Like all 3M shielding tapes, 3M 1170 is available in standard and custom widths and lengths. Standard length is 18 yards.
• Widths from 1/4” to 23”
• Longer lengths up to several times normal length, dependent upon width. Check with Customer Service.
Applications
3M 1170 Tape is typically used for applications requiring excellent electrical conductivity from the application substrate through the adhesive to the foil backing. Common uses include grounding and EMI shielding in equipment, components, shielded rooms, etc.
Shielding Effectiveness
Many factors determine the true shielding effectiveness of a shielding tape, including
type and thickness of foil, adhesive type, intimacy of contact, smoothness of application surface, strength and frequency of the EMI signal, etc. However, using standard tests and fixtures, it is possible to determine a value for the attenuation.
For 3M 1170 Tape, typical shielding effectiveness (far field) is in the range of 60dB to 75dB (30 MHz to 1 GHz).
