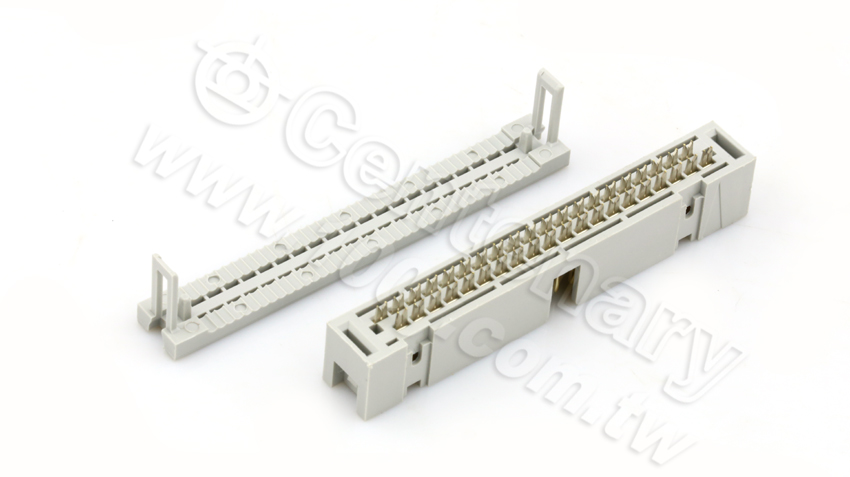

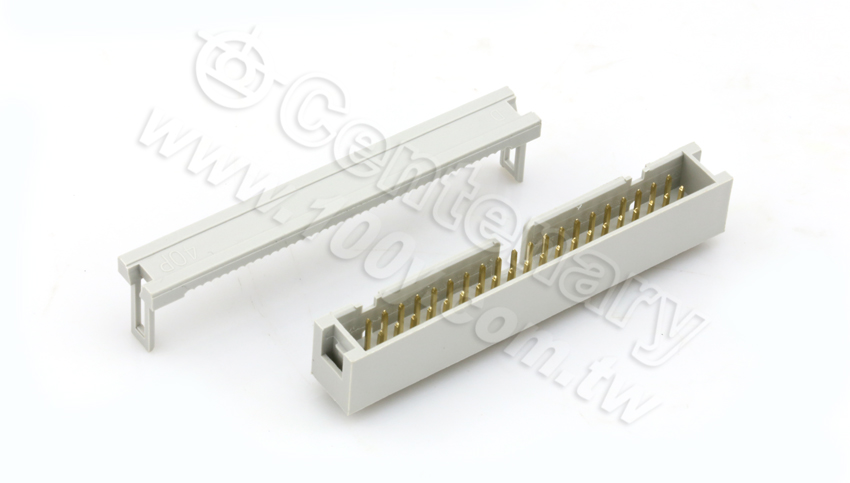

34P簡易壓排公頭 P:2.54mm【ROHS】
NT$60
Part No：
12062
Product No：
DS1015-34N
品牌：
說明：
技術文件：
包裝單位：
2 個
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 26 | 167-3-32 |  | | |
| 光復門市 | 50 | 170-2-32-C | | 170-2-06-C | |
產品特性
- 特性
D09-34P簡易壓排公頭
Features
● Fully shrouded provides ultimate reliability
● With polarization.
● Mounting ears optional
Mates with:101 102 104 520Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass
Plating: Selective gold plated: gold plated on
mating area and nickel plated on wire
Cutting area
Cable: 1.27mm (0.050") pitch flat cable
Electrical Characteristics:
Current Rating: 1 AMP Insulator Resistance: 5000MΩmin. at DC 500V
Contact Resistance: 20mΩmax. at DC 100mA
Operating Temperature: -55℃~+105℃
