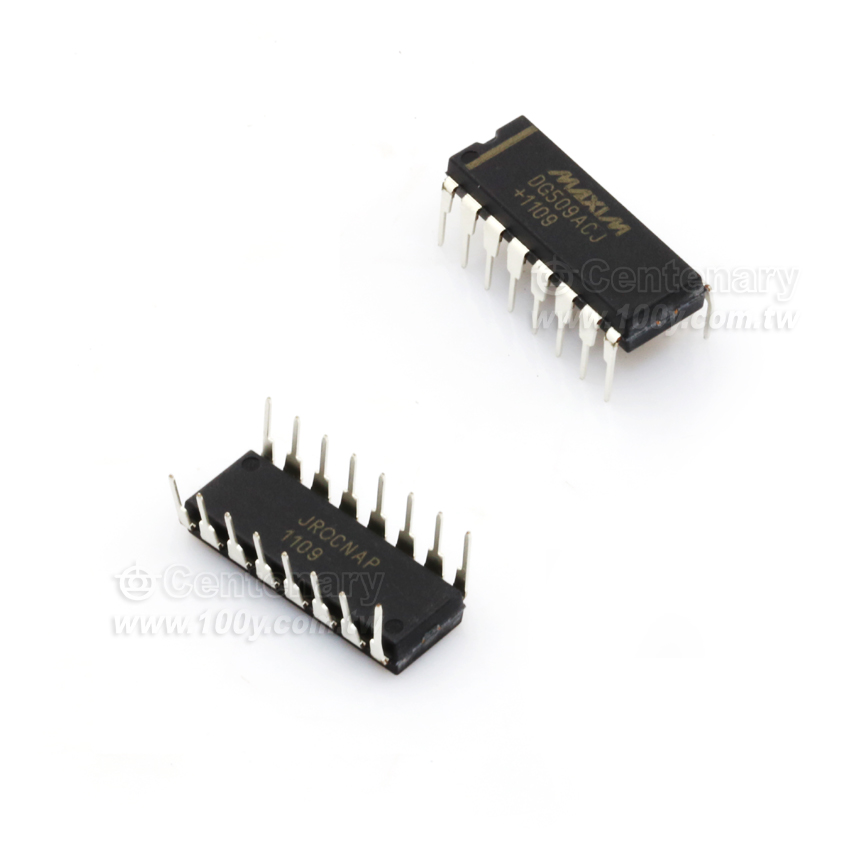

16P/DIP (ROHS)

MAXIM-DG509ACJ+




General Description



Maxim’s DG508A and DG509A are monolithic CMOS analog multiplexers (muxes): the DG508A is a single 8-channel (1-of-8) mux, and the DG509A is a differential 4-channel (2-of-8) mux.
Both devices guarantee break-before-make switching. Maxim guarantees these muxes will not latch up if the power supplies are turned off with the input signals still present. Maxim also guarantees continuous operation when these devices are powered by supplies ranging
from ±4.5V to ±18V.
The DG508A/DG509A are plug-in upgrades for the industry-standard DG508A/DG509A, respectively. Maxim’s parts have faster enable switching times and significantly lower leakage currents. The DG508A/ DG509A also consume significantly lower power, making them ideal for portable equipment.




Applications



Control Systems
Data Logging Systems
Aircraft Heads-Up Displays
Data-Acquisition Systems
Signal Routing




Features



● Improved Second Source
● Operate from ±4.5V to ±18V Supplies
● Symmetrical, Bidirectional Operation
● Logic and Enable Inputs, TTL and CMOS Compatible
● Latchup-Proof Construction
● Monolithic, Low-Power CMOS Design

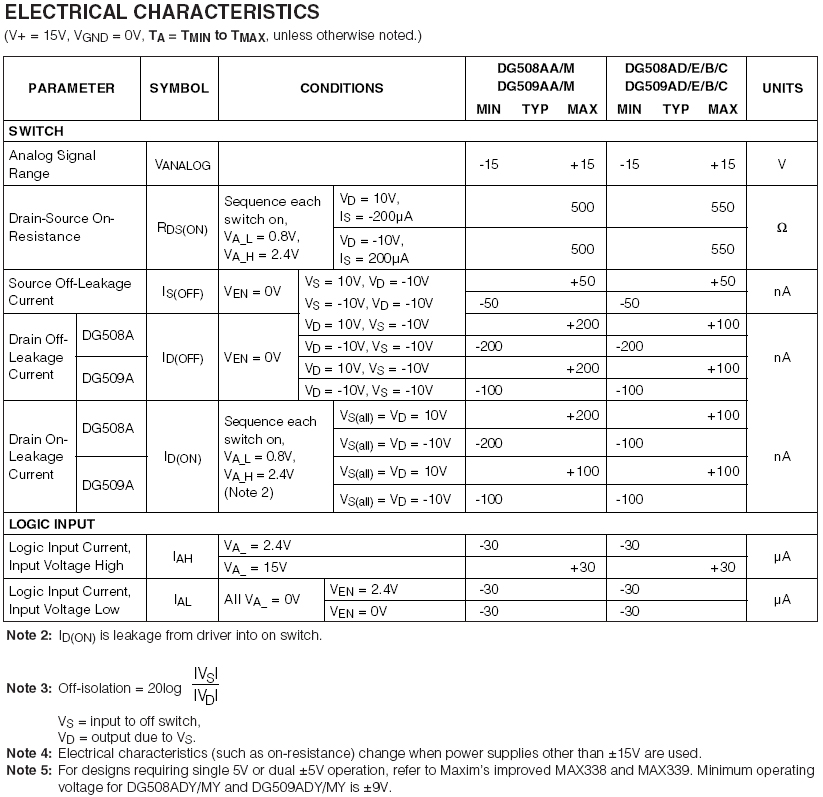

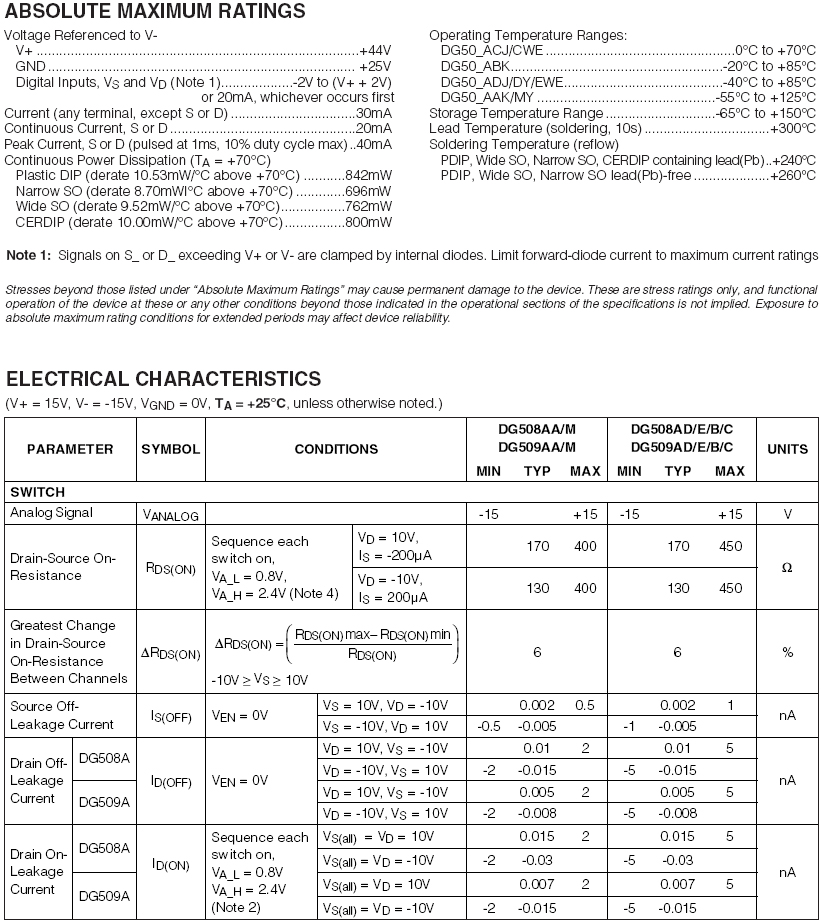

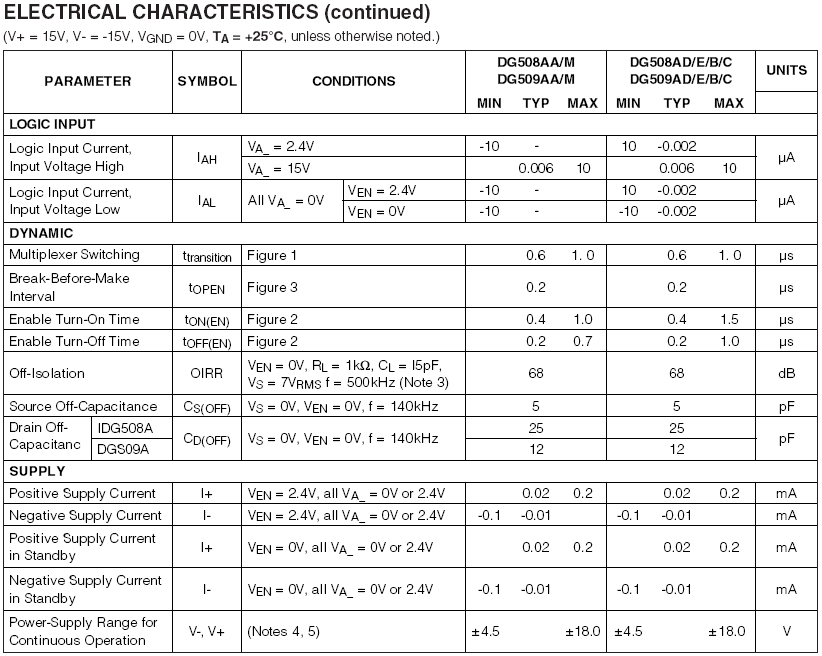

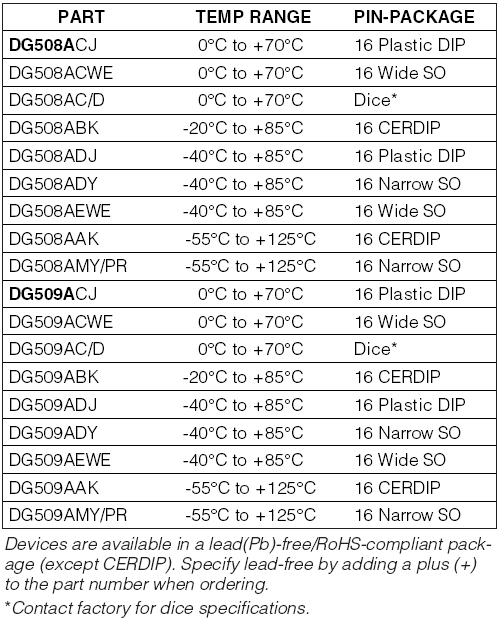

Ordering Information

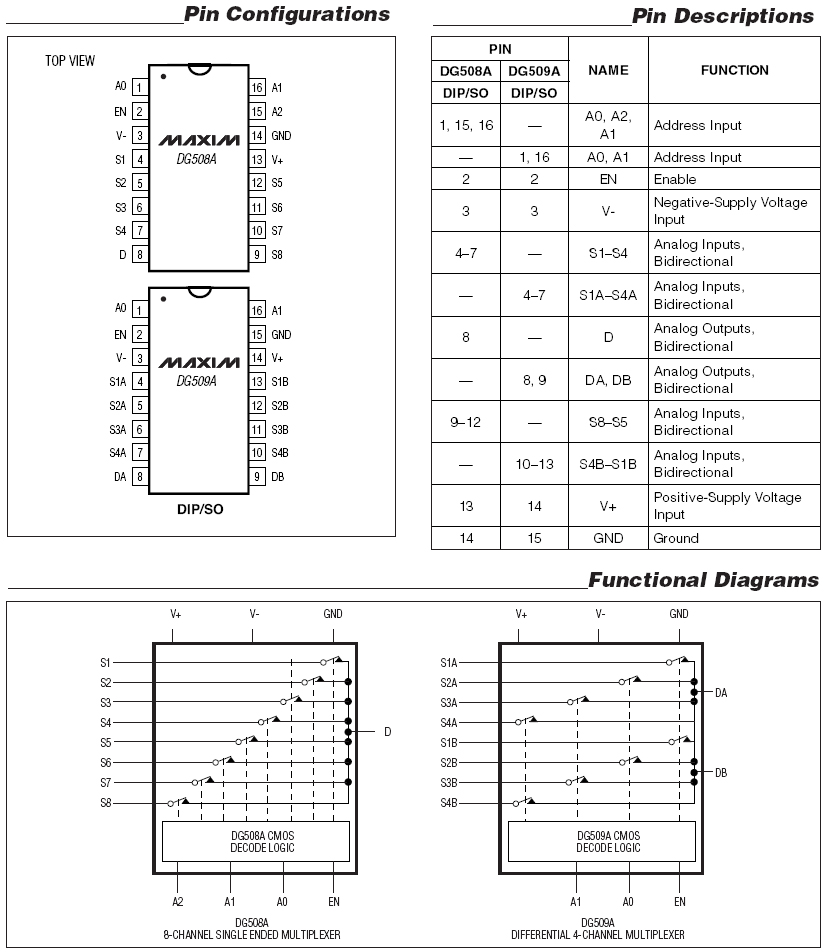

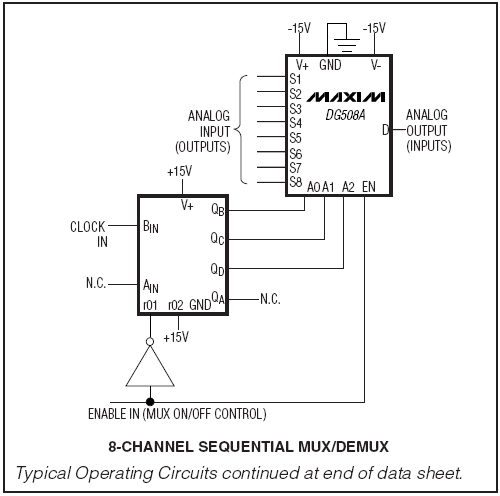

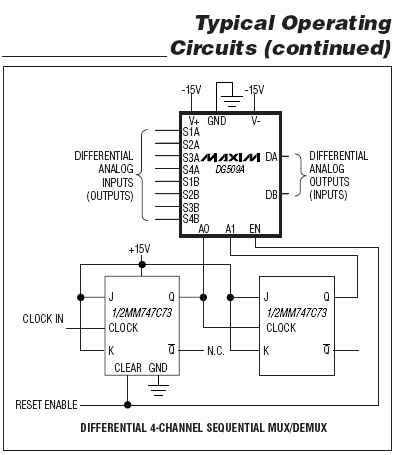

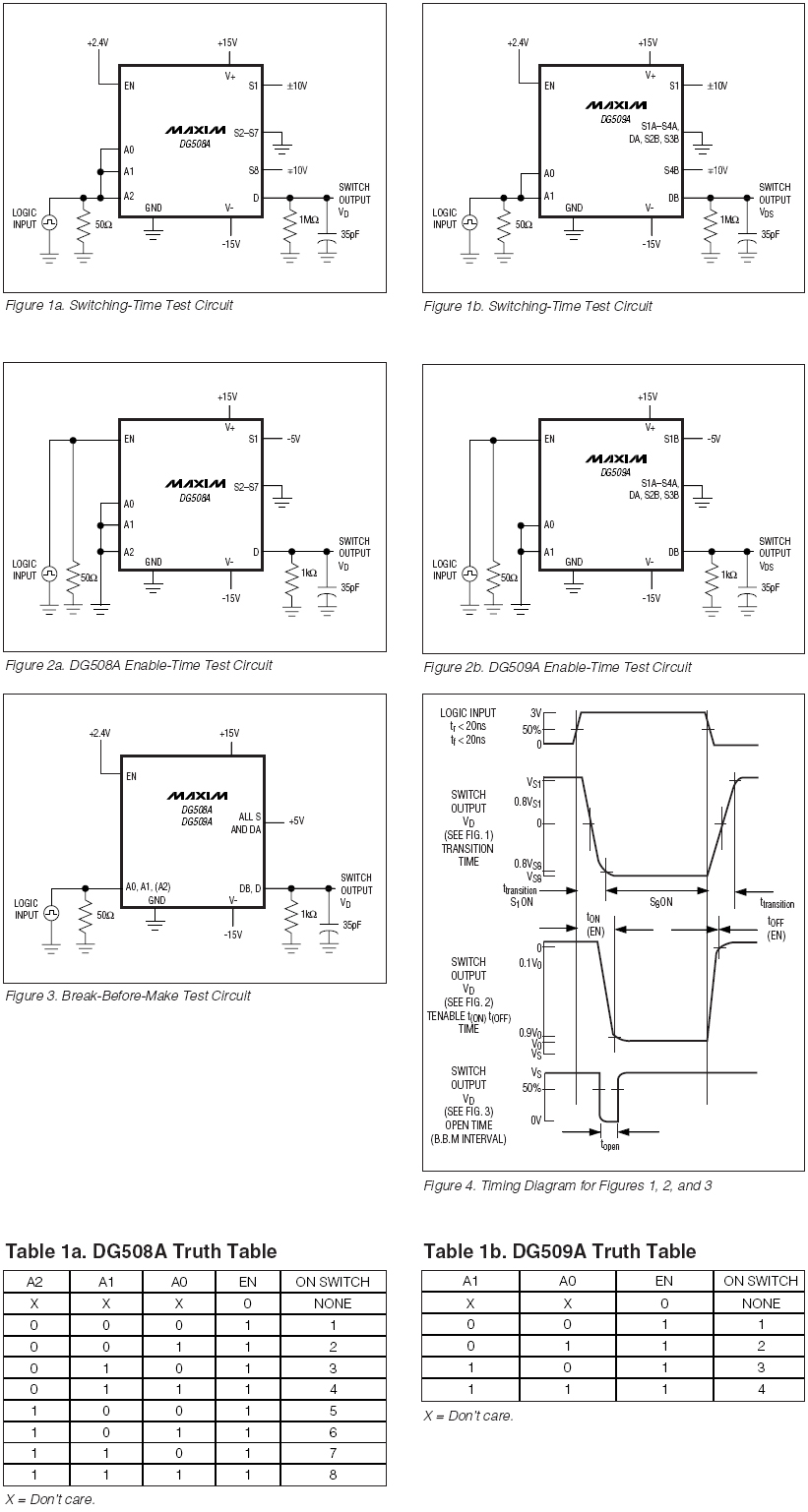

Typical Operating Circuits
