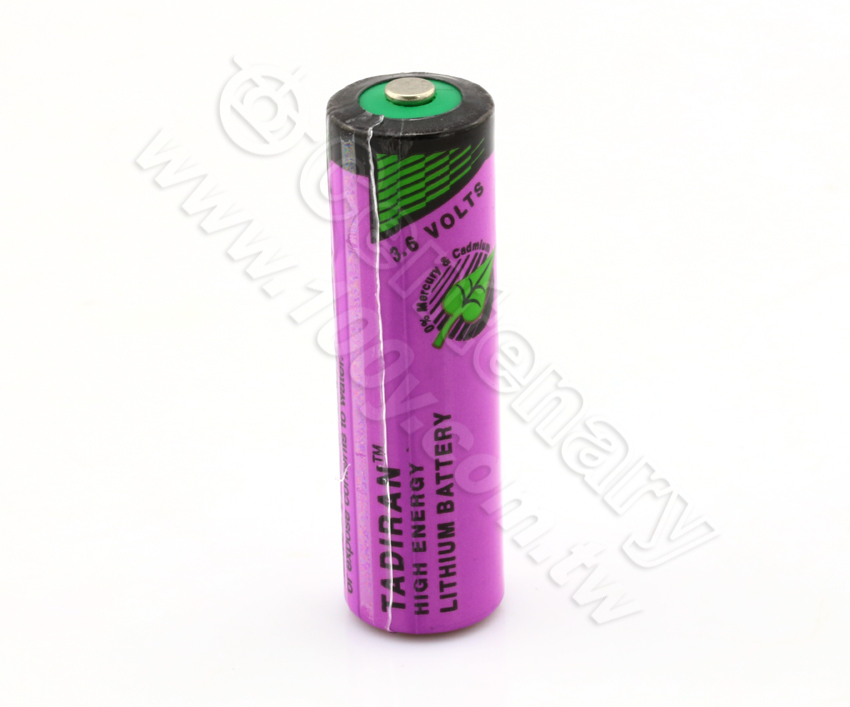

3.6V/2.4Ah 鋰電池 AA

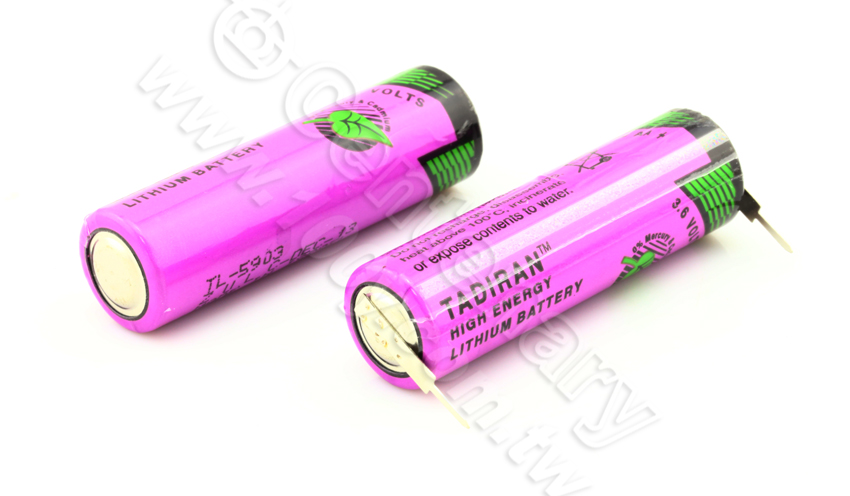

TADIRAN-TL-5903 鋰電池




TECHNICAL DATA



(Typical values @+ 25oC for batteries stored for one year or less)

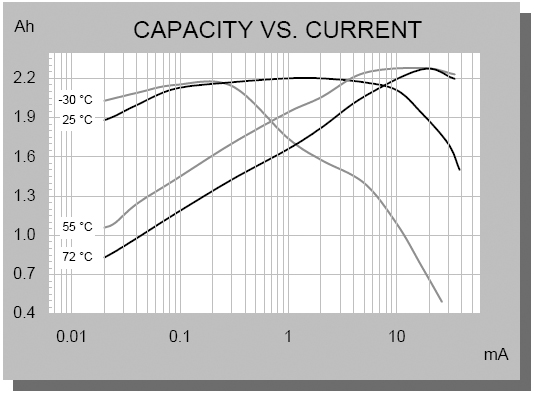

●Nominal capacity 2.4 Ah
●Rated voltage 3.6 V
●Maximum recommended continuous current 100 mA
●Maximum pulse current capability 200 mA
●Weight 18 g (0.635 oz)
●Volume 8 cc
●Operating temperature range -55 oC to +85 oC
●Li metal content approx. 0.65 g
●U.L. Component Recognition, MH 12193




TERMINATIONS & ORDERING NO.



SUFFIX- /S STANDARD：15-5903-21500

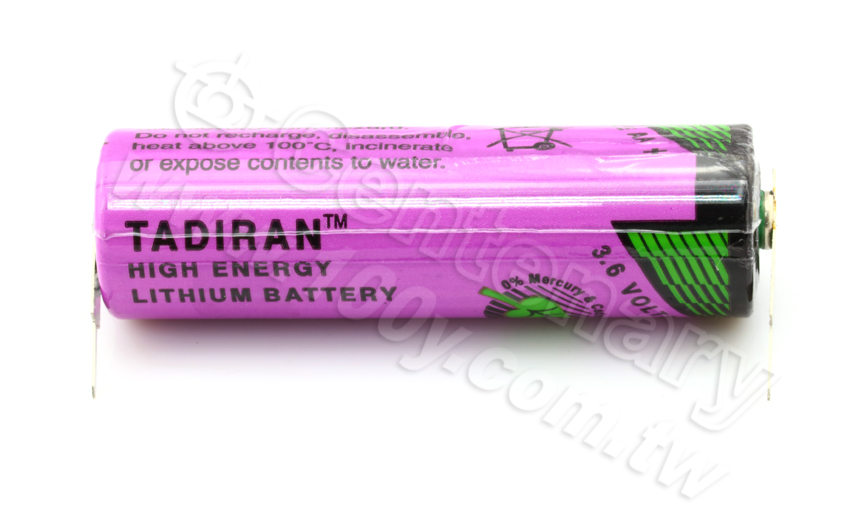

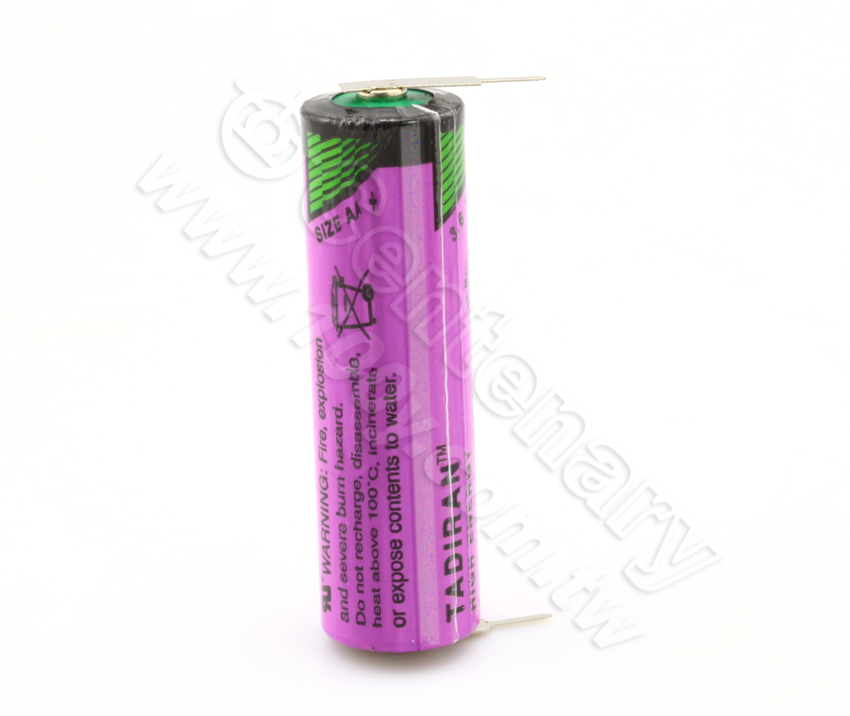

SUFFIX- /T SOLDER TABS：15-5903-31500
SUFFIX- /P AXIAL PINS：15-5903-41500
SUFFIX- /PT2 RADIAL PINS：15-5903-36500
SUFFIX- /TP POLARIZED TAB： 15-5903-52500
SUFFIX- /PT POLARIZED TABS：15-5903-53500




CELL FEATURES



●3.6 V Primary lithium-thionyl chloride (Li-SOCl2)

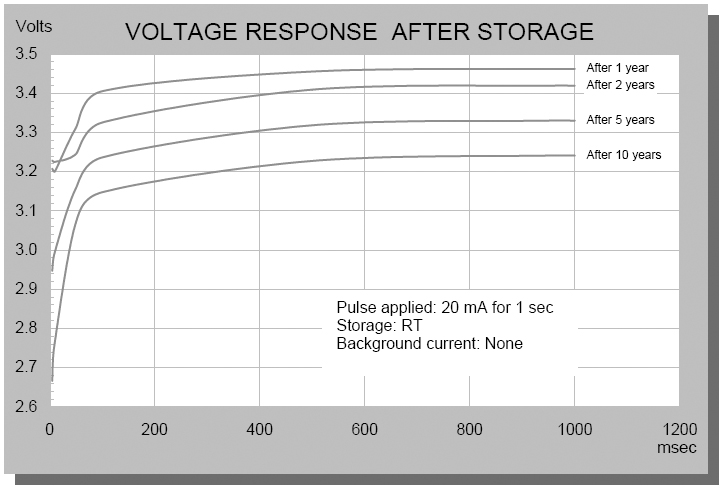

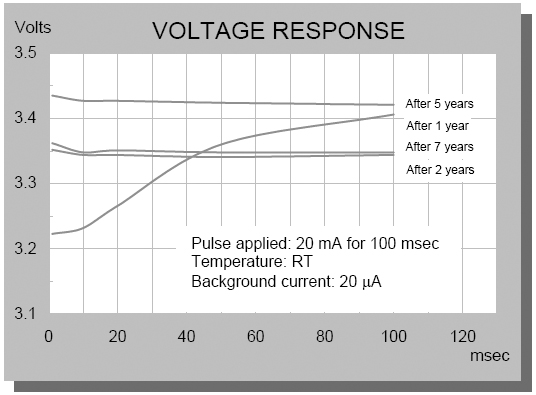

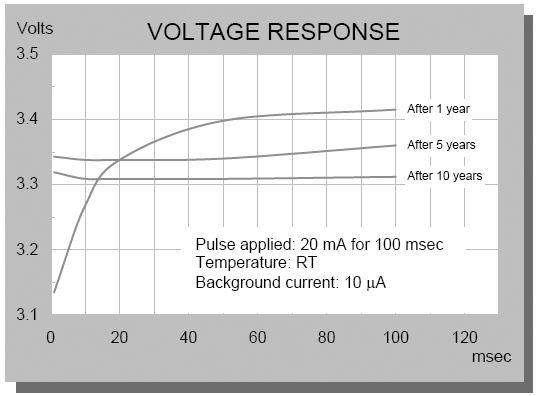

●Fast voltage recovery after long term storage and/or usage
●High energy density
●High and stable operating voltage
●Low self discharge rate
●Bobbin construction
●Hermetic glass-to-metal-sealing
●Non-flammable electrolyte




MAIN APPLICATIONS



●Utility meters (elect., water & gas)
●Automatic meter reading
●RF systems
●Sensors & monitoring systems
●Tracking systems
●Wireless security systems
●Automotive electronics
●Industrial electronics
●Ultra Low Power (ULP)




STORAGE CONDITIONS



Cells should be stored in a clean & dry (less than 30 % RH) area
