RS232 TO 422/485轉換

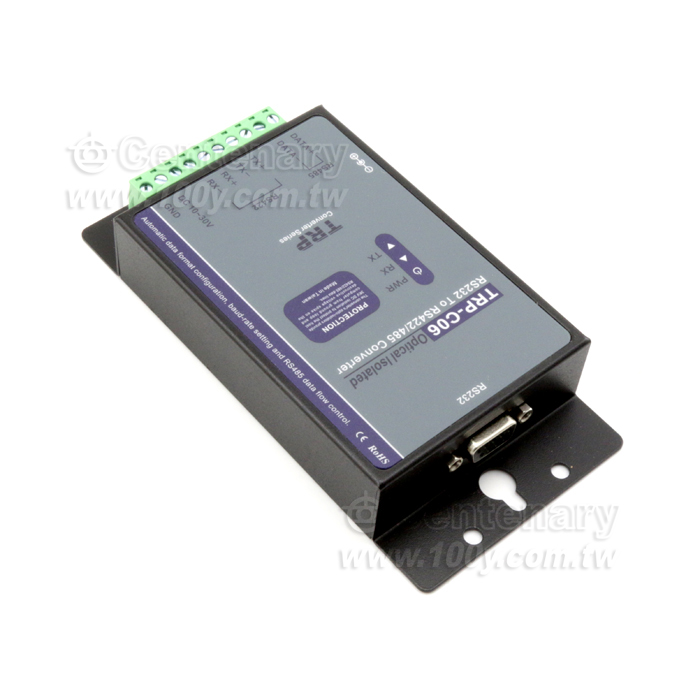

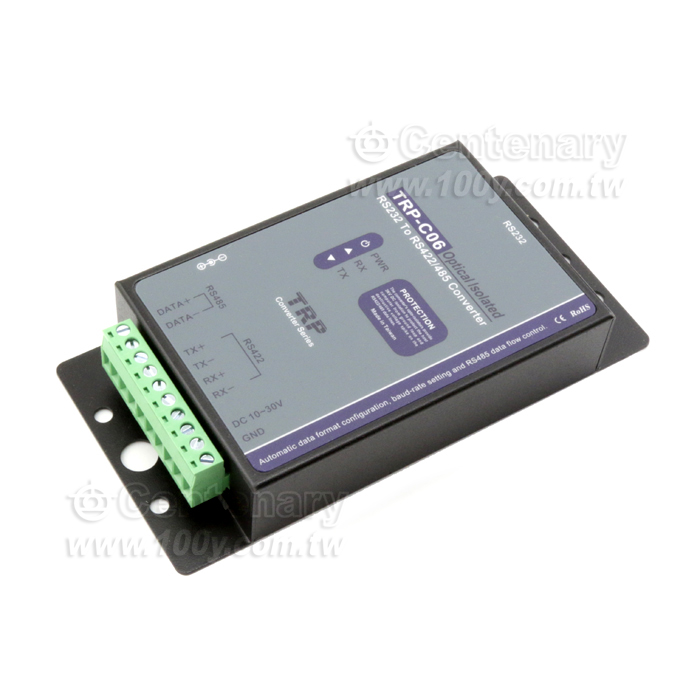

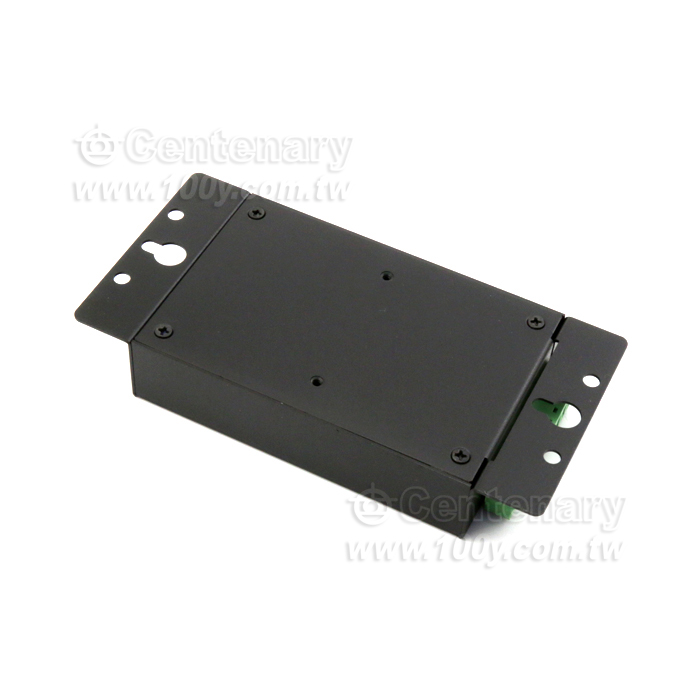

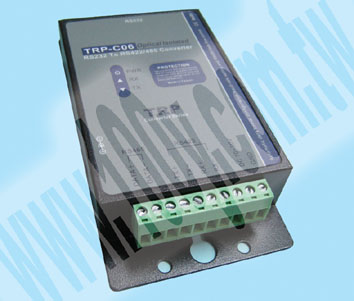

Trycom-TRP-C06

RS232 TO 422/485 防止干擾轉換器

1 Introduction

The TRP- C06 allows RS232 devices to connect directly to an industrial isolated RS422 or RS485 network and transmit data up to 1.2km. Automatic baud rate detection means that no software or hardware changes are required. Just plug in the unit and go. The TRP-C06 provides up to 3kV of isolation. This is recommended over longer cable runs or where ground potential differences can occur between host and client devices. Industry standard DIN rail or panel mount options enable fast and professional installation

2 Features

Minimum 3000V DC isolation protection.Transient suppression on RS-485 data line.Built-in termination resistor (selectable).Accept industrial standard +24V DC Unregulated power.RS422/485/PWR/TX/RX mode LED indicates.Power requirement: +10V to +30V.Support external standard +12V DC power adapter input.Two wire RS485 operation with automatic turnaround or four wire full duplex.

3 Specifications

Input: Standard D-Sub 9 pin female Connector.Output: RS485 differential 2 half-duplex wires.RS422 differential 4 full-duplex wires.Distance: RS422/485 up to 4000ft. (1250 meters)LEDs: PWR, TX, RX, and RS422, 485 statuses LED.Format: Asynchronous data with any combination of bits, parity, stop.Temperature: 0-65C (32-150F) ambient.Humidity: 10-90% non-condensing.Voltage: 10-30VDC.Power: Under 1 Watt (typical) + external load.Size: 742(W) X 111(L) X265(H) (FRAME), with connectors: 52(W) X85/mm.
