USBRS232/422/485 隔離轉換器
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 1 | 167-1-03 |  | | |
| 光復門市 | 1 | 166-1-18 | | C7-09 | |
- 特性
隔離轉換器
Introduction

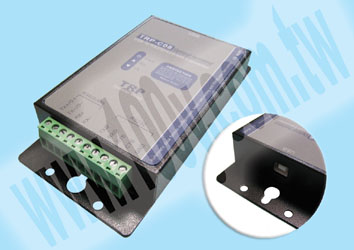

The TRP-C08 converter is an intelligent, stackable expansion module thatconnects to a PC USB port or USB Hub via the Universal Serial Bus(USB) port,providing one High-Speed RS-232/RS-422 or RS-485 serial port (jumper less)The TRP-C08 features easy connectivity for traditional serial devices.The RS-232 standard supports full-duplex communication and handshaking signals (such as RTS, CTS) and The RS-485 control is completely transparent to the user and software written for half -duplex COM works without anymodification.The TRP-C08’s OPTO-isolators provide 3000 Vdc of isolation to protect the host computer from ground loops and destructive voltage spikes on the RS-232/RS-422 and RS-485 data lines.TRP- C08 also offer internal surge-protection on their data lines. Internal highspeed transient suppressors on each data line protect the modules from dangerous voltages levels or spikes.The TRP-C08 module derives the power from USB port and doesn’t need any power
adapter
Features
Specifications
Converted signals: RS-232/RS-422 or RS-485 Auto switching (jumper less)USB interface connector: USB type BUSB Controller: Compatibility USB Specification 1.1 Standard Isolation voltage: 3000VDC Power requirement: By USB bus power Handshake: RS-232 support RTS & CTS handshake signals Auto Switching Baud rate (bps): 300~115.2Kbps RS-232/RS-422/RS-485 connector: plug-in screw terminal Isolation Side: RS-232/422/485 Power consumption:0. 65W Operating temperature:0~70℃ (32~158℉) Storage temperature:-25~85℃ (13~185℉) Humidity:5~95%, non-condensing Transmission and Receiving LED indicator
