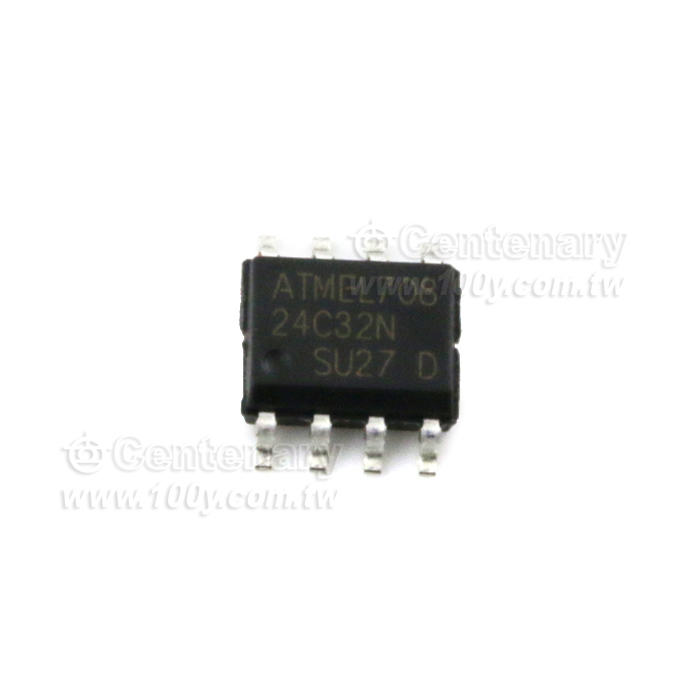

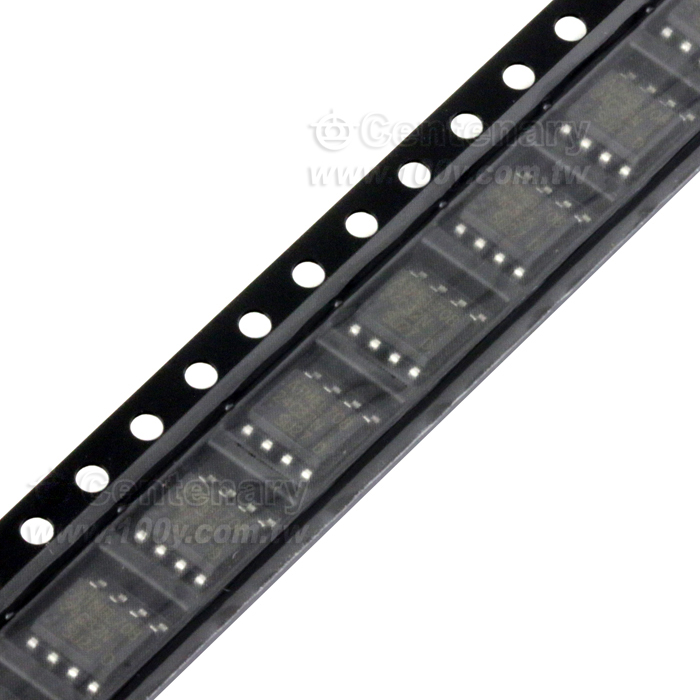

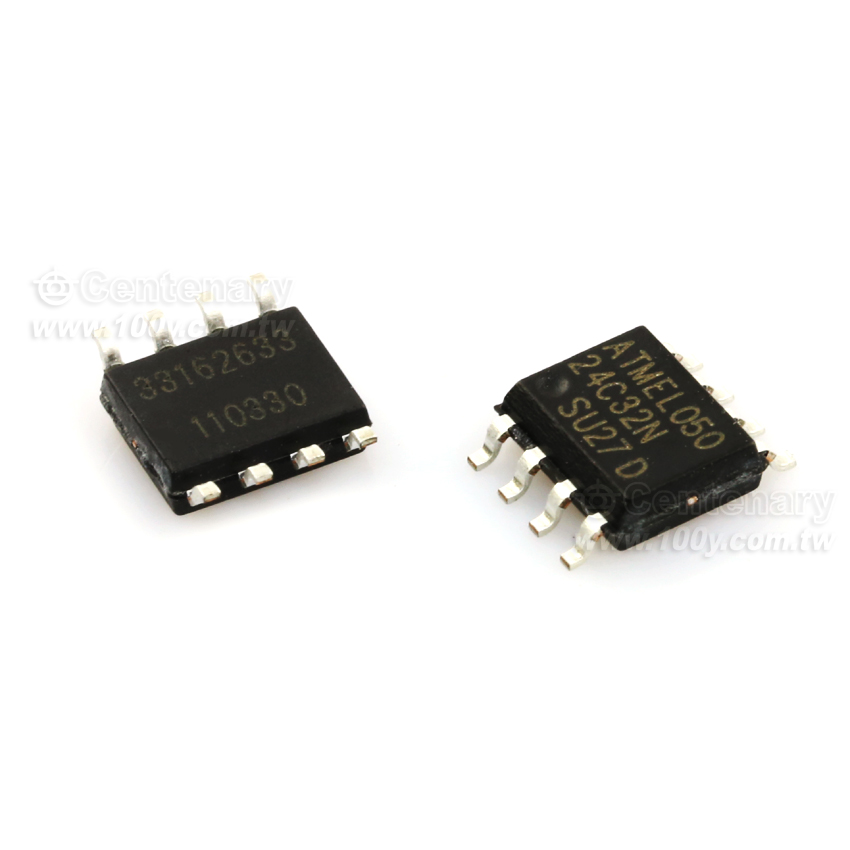

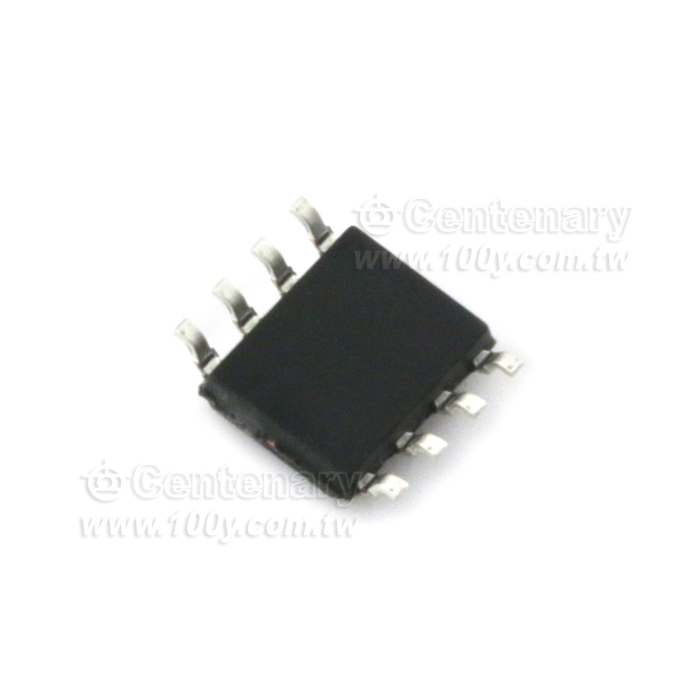

8P/SOIC (ROHS)
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 0 |  | | ||
| 光復門市 | 110 | 170-2-06-D | | |
- 特性
ATMEL- AT24C32A、AT24C64A
Features
●Standard-Voltage Operation – 2.7 (VCC = 2.7V to 5.5V)
●Internally Organized 4096 x 8 (32K), 8192 x 8 (64K)
●Automotive Temperature Range –40C to +125C
●Two-wire Serial Interface
●Schmitt Trigger, Filtered Inputs for Noise Suppression
●Bidirectional Data Transfer Protocol
●400 kHz Clock Rate
●Write Protect Pin for Hardware Data Protection
●32-byte Page Write Mode (Partial Page Writes Allowed)
●Self-timed Write Cycle (5 ms Max)
●High Reliability
– Endurance: 1 Million Write Cycles
– Data Retention: 100 Years
●Lead-free/Halogen-free Devices Available

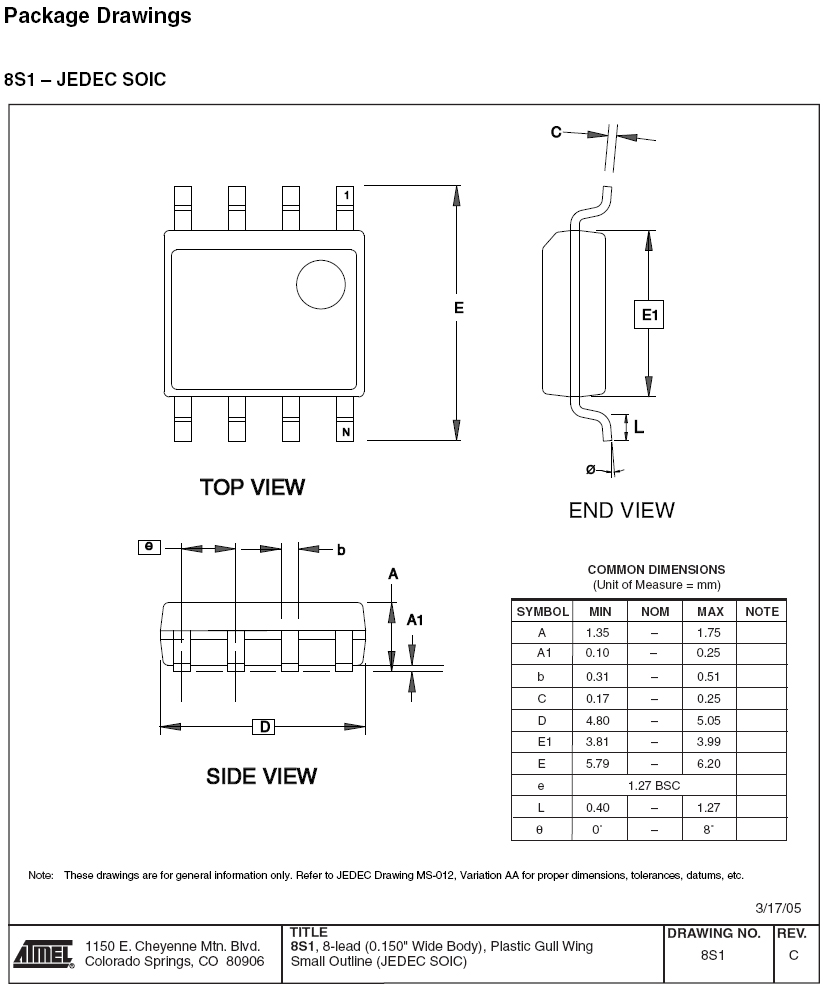

●8-lead JEDEC SOIC and 8-lead TSSOP Packages
Description
The AT24C32A/64A provides 32,768/65,536 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 4096/8192 words of 8 bits each. The device’s cascadable feature allows up to 8 devices to share a common twowire bus. The device is optimized for use in many automotive applications where low power and low voltage operation are essential. The AT24C32A/64A is available in space saving 8-lead JEDEC SOIC and 8-lead TSSOP packages and is accessed via a 2-wire serial interface and is available in a 2.7V (2.7V to 5.5V) version.
