32P寬短圓腳IC座【ROHS】
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 10 | 167-3-33 |  | | |
| 光復門市 | 20 | 170-2-29-D | | F1-01旁 | |
- 特性

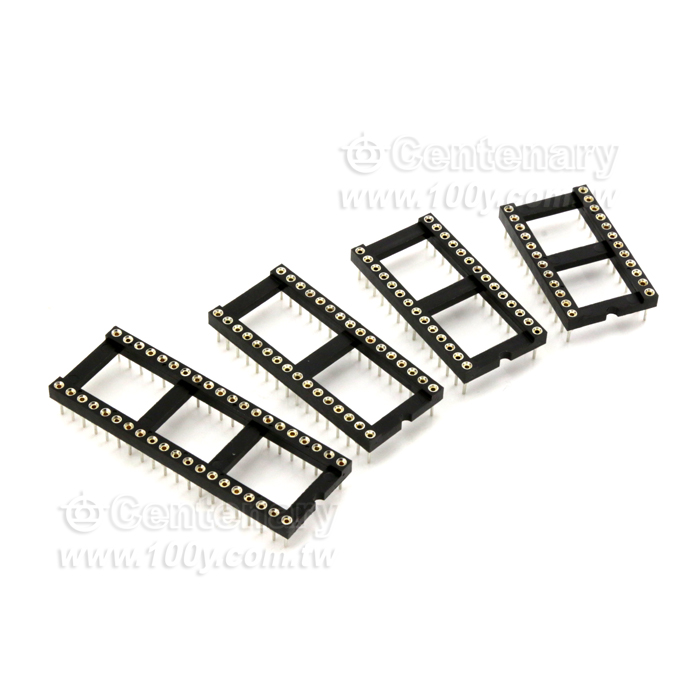

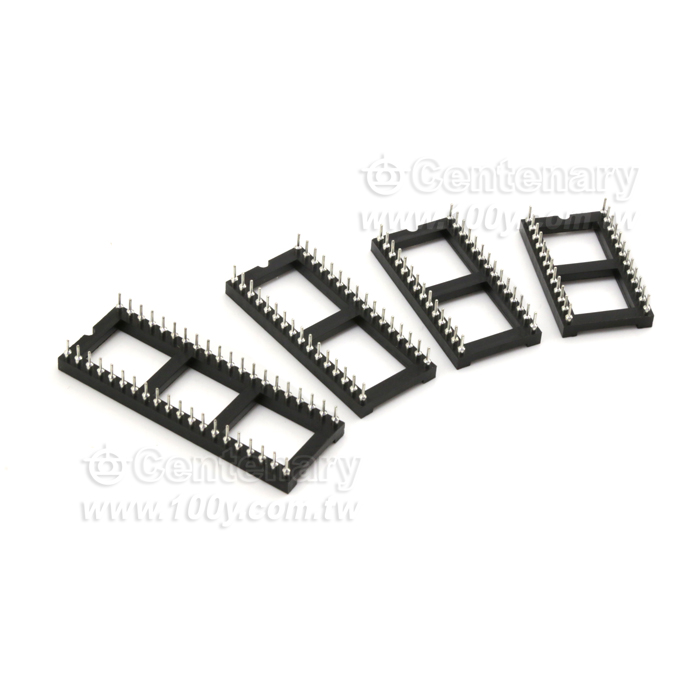

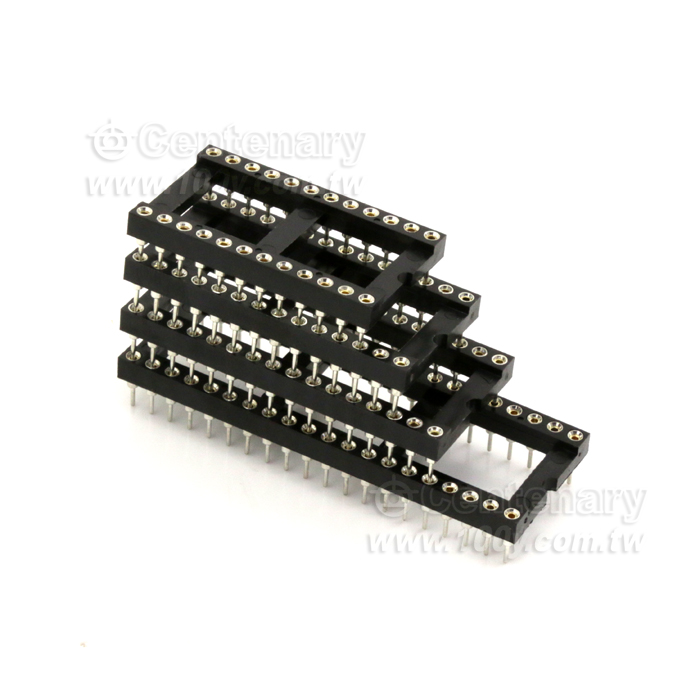

C07圓孔鍍錫短腳(0.1*0.6):24P,28P.32P,40P
Matierial
Pin(outer sleeve): Brass,machined
Clip(cotact 4 finger): Beryllium Copper,heat treated
Plating(outer sleeve):
Tin plated: 2mm/80u"Ni, 5mm/200μ"Sn
Plating(coctact): 2mm/80u"Ni, gold or Tin plated
Insulator(black): Glass filled thermoplastic polyester UL94V-0
Electrical
Current rating: 3Amps/contact max.
Contact resistance: ≤4mΩ/contact
Insulation resistance: ≥1000MΩ at V=100V
Operaing voltage: 60VAC/DC
Mechanical
Average insertion force with steel pin of Φ0.43mm/0.017": <250g
Average withdrawal force with steel pin of Φ0.43mm/0.017": >50g min.
Mechanical life cycle: min.200
Operaing temperatures
Gold Plsted:-55°C to+ 150°C
Tin plated:-40°C to+ 150°C
Soldering temperature: +260°C,10s max.
