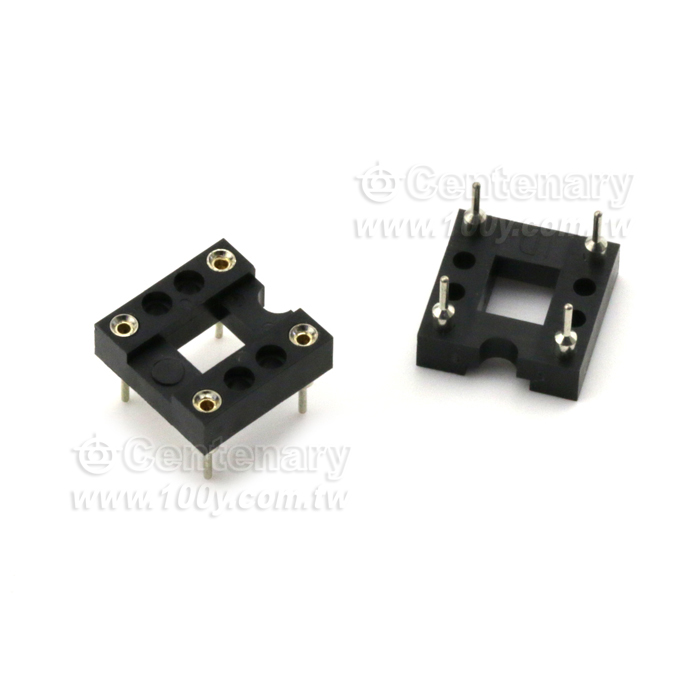

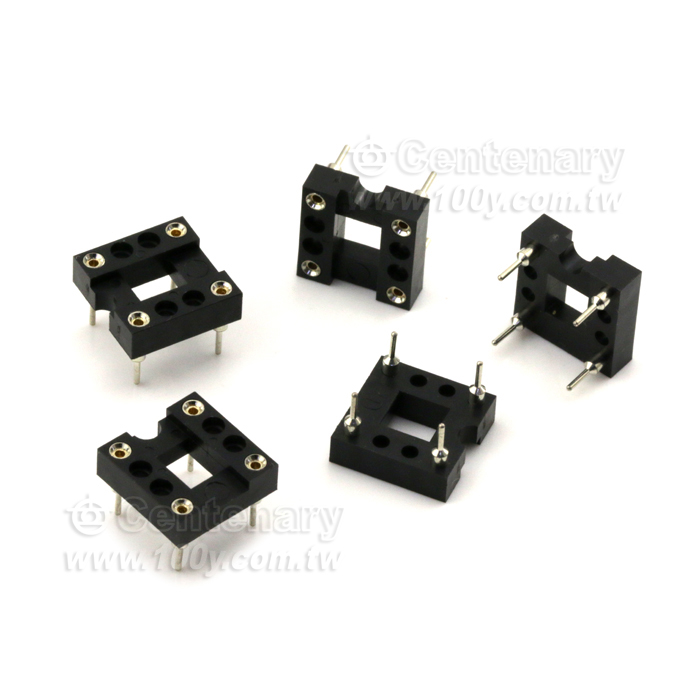

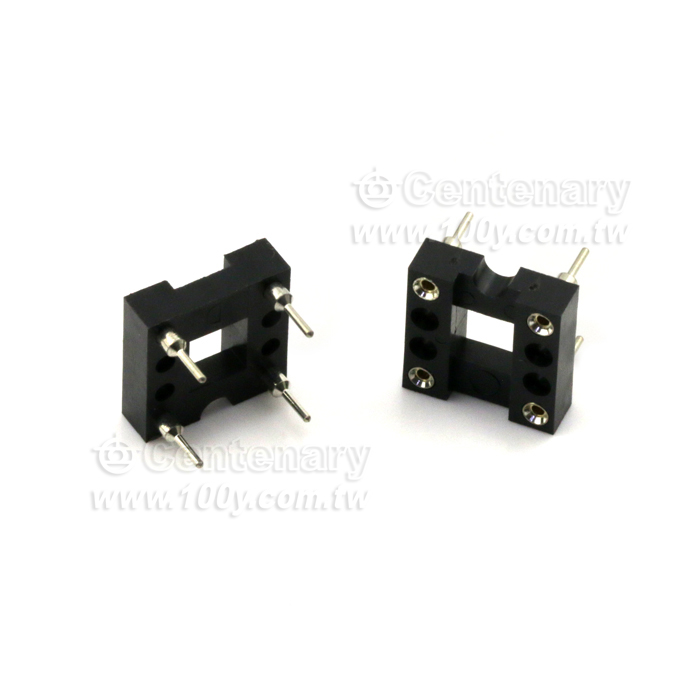

振盪器腳座8P插4【ROHS】
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 70 | 167-3-33 |  | | |
| 光復門市 | 130 | 170-2-29-D | | 170-F-37-E | |
- 特性
C18圓孔鍍錫短腳(振盪器用)

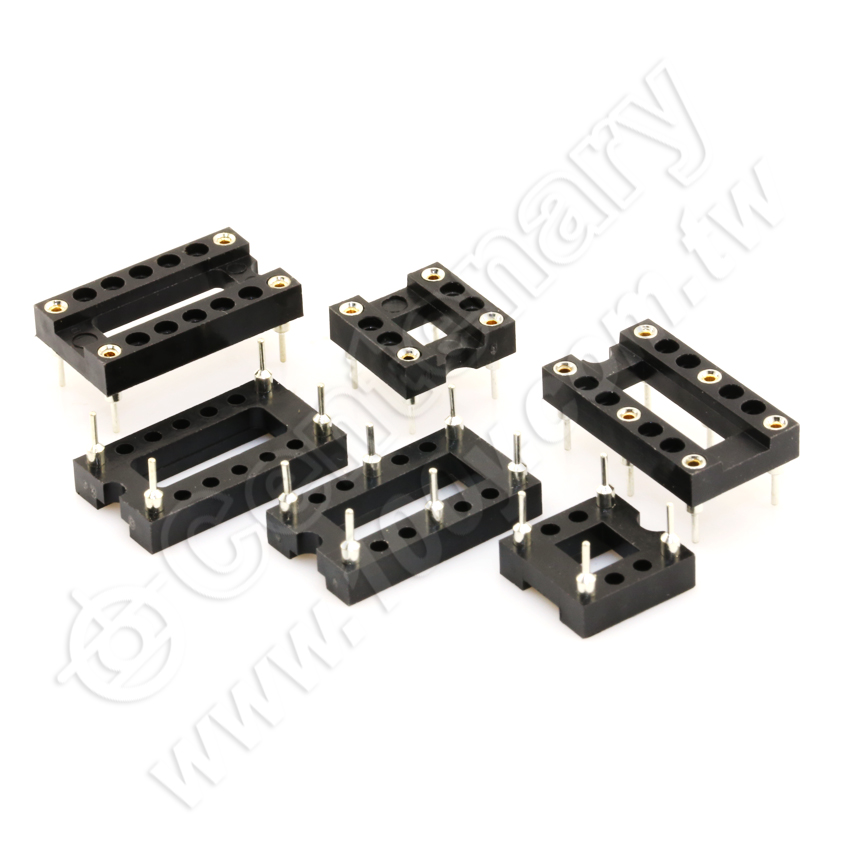

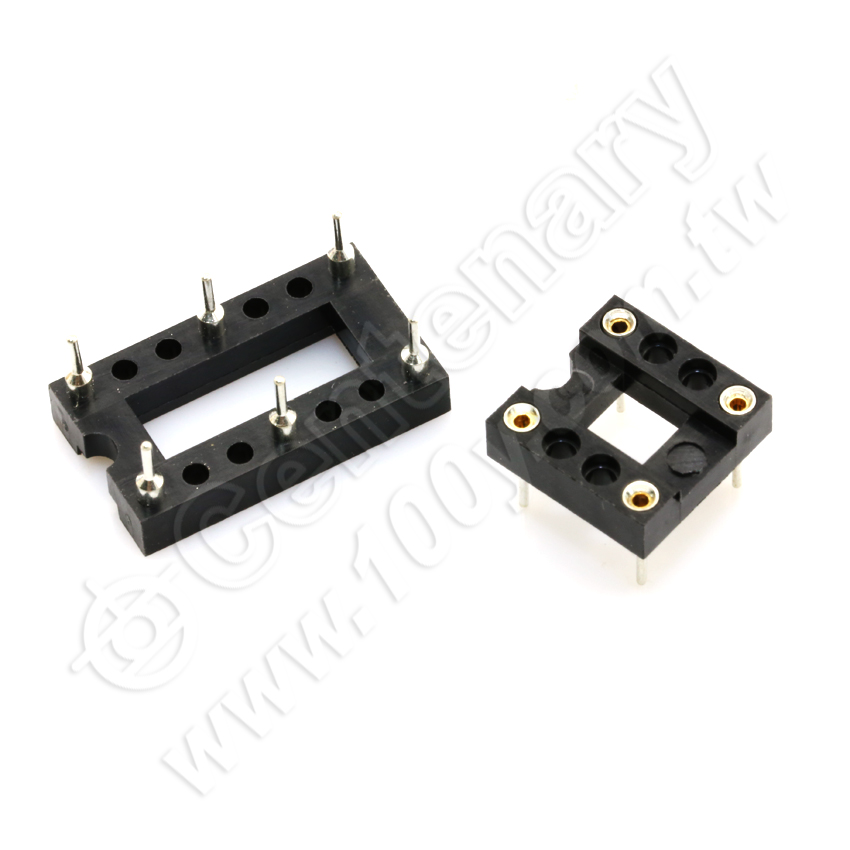

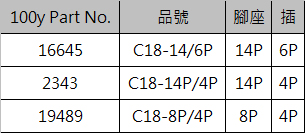

8插4P,14P插4P,14插8P
Matierial
Pin(outer sleeve):Brass,machined
Clip(cotact 4 finger):Beryllium Copper,heat treated
Plating(outer sleeve):
Tin plated:2mm/80u"Ni, 5mm/200μ"Sn
Plating(coctact):2mm/80u"Ni, gold or Tin plated
Insulator(black):Glass filled thermoplastic polyester UL94V-0
Electrical
Current rating:3Amps/contact max.
Contact resistance:≤4mΩ/contact
Insulation resistance:≥1000MΩ at V=100V
Operaing voltage:60VAC/DC
Mechanical
Average insertion force with steel pin of Φ0.43mm/0.017":<250g
Average withdrawal force with steel pin of Φ0.43mm/0.017":>50g min.
Mechanical life cycle: min.200
Operaing temperatures
Gold Plsted: -55°C to+ 150°C
Tin plated: -40°C to+ 150°C
Soldering temperature:+260°C,10s max.
