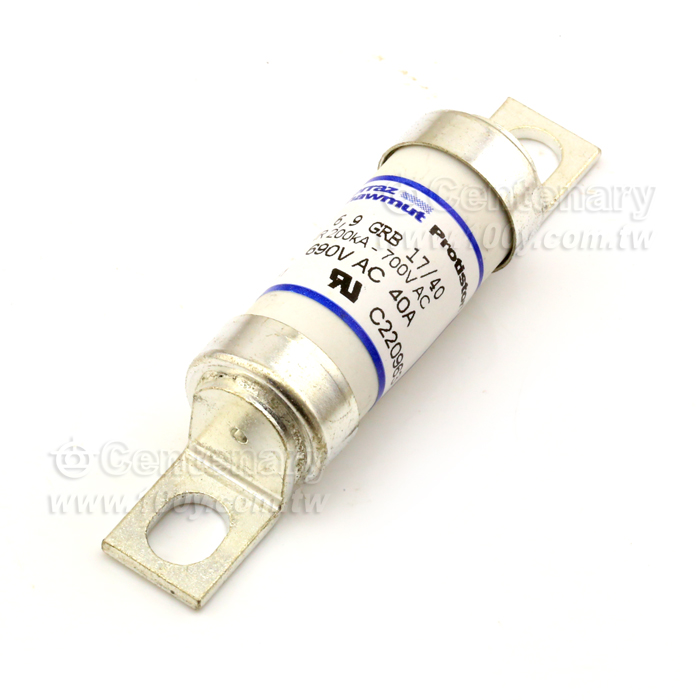

保險絲 40A/690V
NT$720
Part No：
28991
Product No：
C220963
品牌：
Ferraz Shawmut
說明：
技術文件：
包裝單位：
1 個
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 10 | 167-2-20 |  | | |
| 光復門市 | 6 | 170-2-39A | | 14 | |
產品特性
- 特性
Ferraz Shawmut 英國標準不帶熔斷指示器
C220963
Features

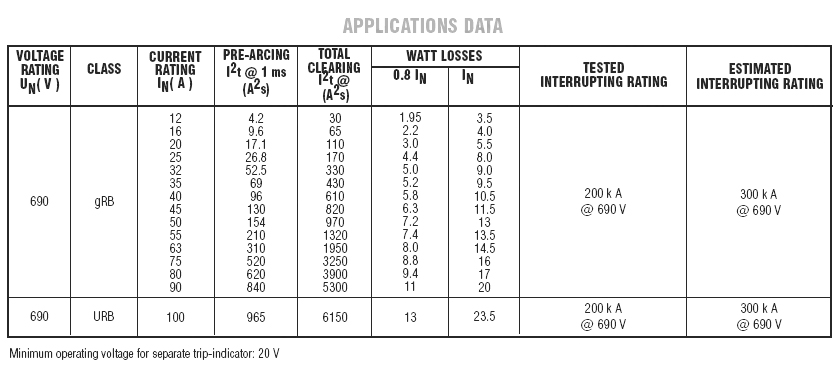

●Extremely high Interrupting rating Fuses:
Protection of power Semiconductors as per IECstandard 269.1 and 4
●690V Voltage Rating as per IEC 33
●gR Class [Current rating 12 to 90A] as per VDE 636-23
-Full range protection
-Improved safety and protection
-Allows selective coordination
●aR Class [Current Rating 100A] According to VDE 636-23 and IEC 269.4

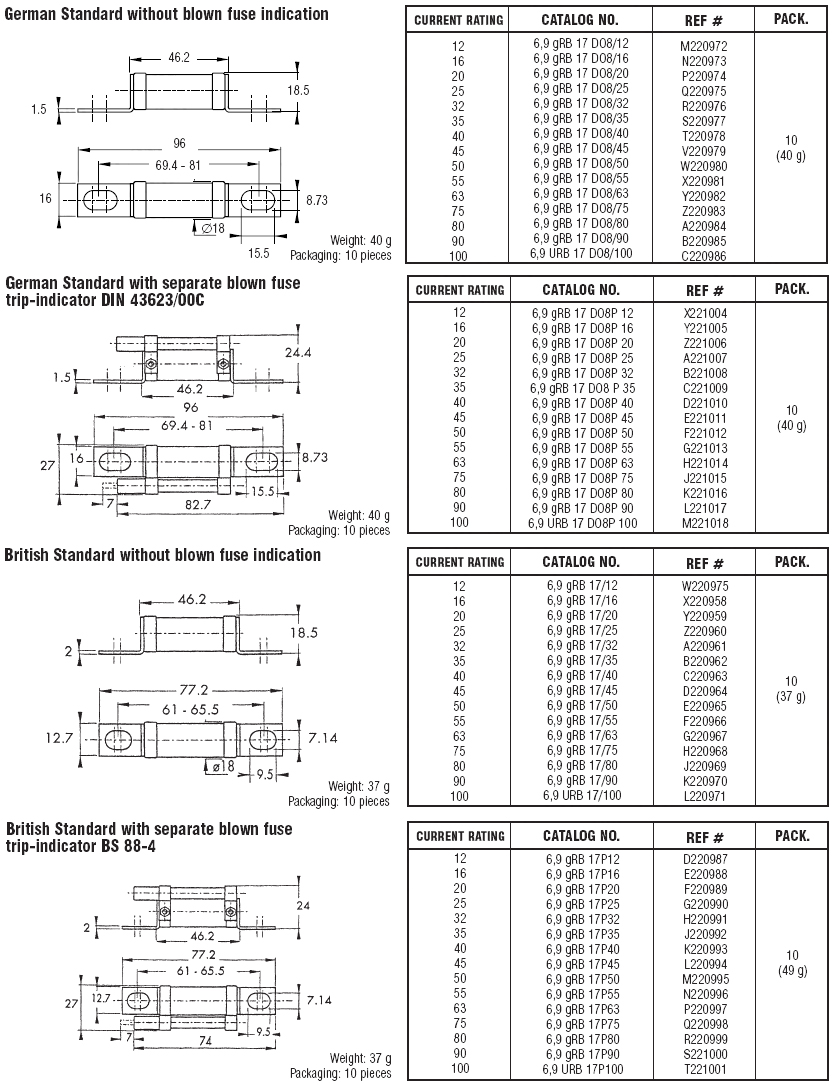

●Connections as per:
-German standard DIN 43653/00C
-British standard BS 88-4
●These fuses are UL Recognized
