φ7mm 15Ω 50 to 500MHz
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 104 | 167-3-43 |  | 167-3-83 | |
| 光復門市 | 928 | 170-2-35B | | 166-3-17-C | |
- 特性

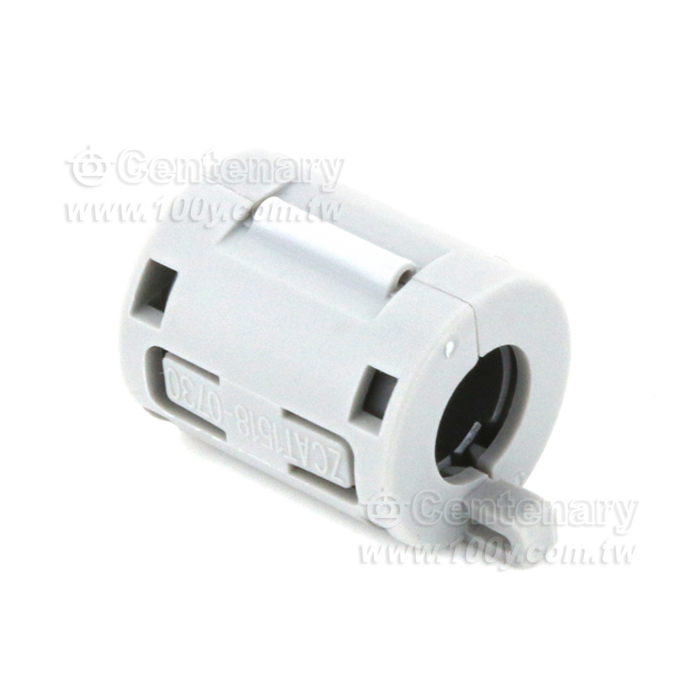

TDK-ZCAT Series可夾式鐵粉芯扣環
FEATURES
Using TDKs unique structure where the ferrite core is mounted and integrated in a plastic case, it is possible to attach them to interface cables and power cables with one touch without having to cut the cables.
Have excellent absorption of high-frequency noise using the high-frequency absorption characteristics of the ferrite core.
Effective for common mode noise, so can be implemented as a noise countermeasure without influencing signal quality.
Series are according to the outer diameter of the cable in order to be compatible with various cable sizes.
APPLICATION
PCs, word processors, monitors, HDDs, digital telephones, audio equipment, electronic musical instruments, video games, copiers, and facsimiles.
PART NUMBER CONSTRUCTION
OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT
ZCAT Type
SHAPE & DIMENSIONS
INTERNAL CONSTRUCTION
STRUCTURE OF THE FIXING BAND
ELECTRICAL CHARACTERISTICS
ZCAT-A Type
SHAPE & DIMENSIONS
INTERNAL CONSTRUCTION
ELECTRICAL CHARACTERISTICS
