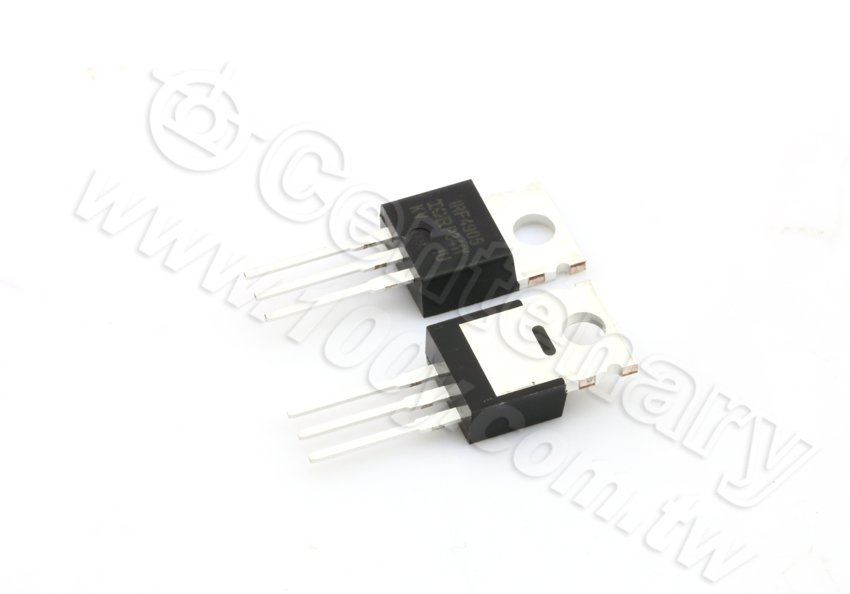

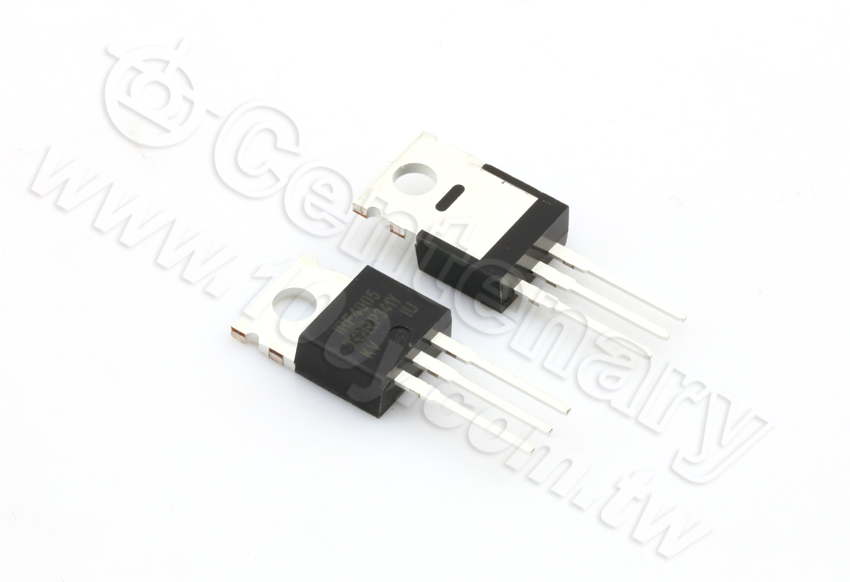

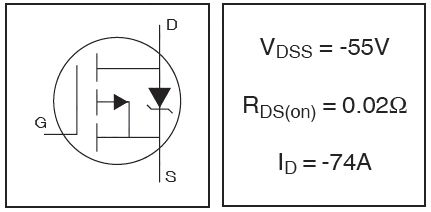

3P/TO-220AB(ROHS) P-Ch. 55V/74A
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 0 |  | | ||
| 光復門市 | 280 | 170-2-06B | | 170-F-19-B | |
- 特性
IR-IRF4905PbF
Feature
●Advanced Process Technology
●Ultra Low On-Resistance
●Dynamic dv/dt Rating
●175°C Operating Temperature
●Fast Switching
●P-Channel

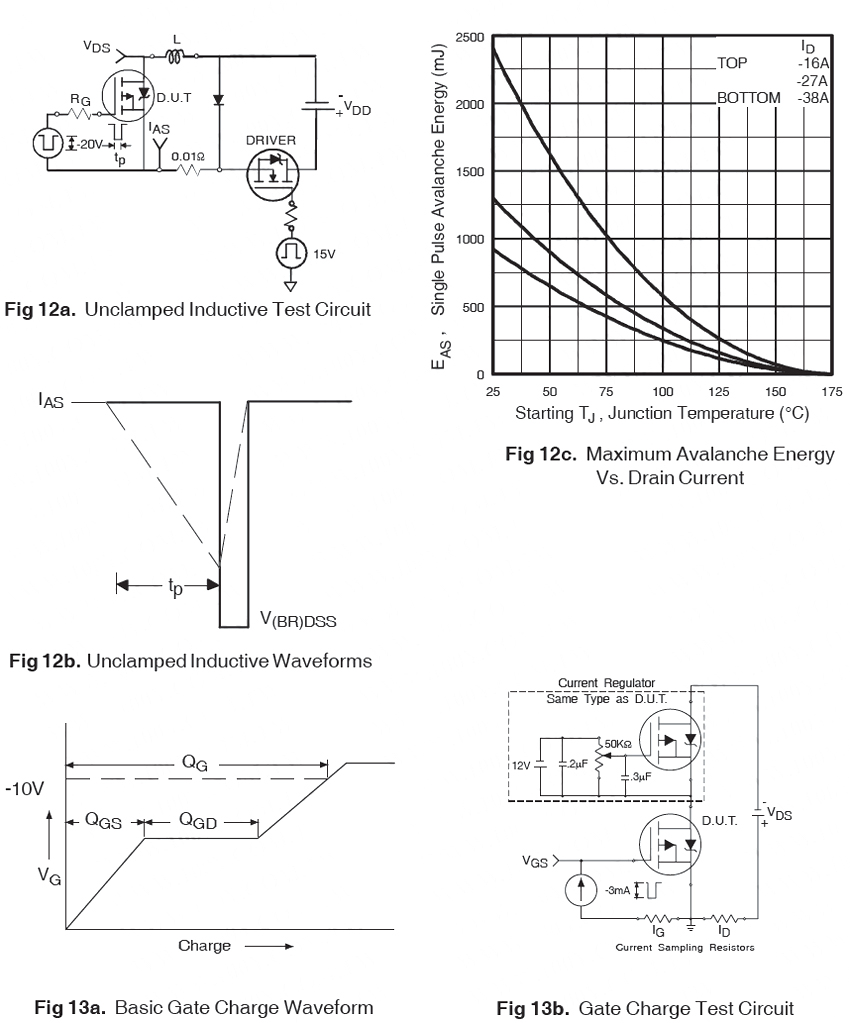

●Fully Avalanche Rated
●Lead-Free
Description
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

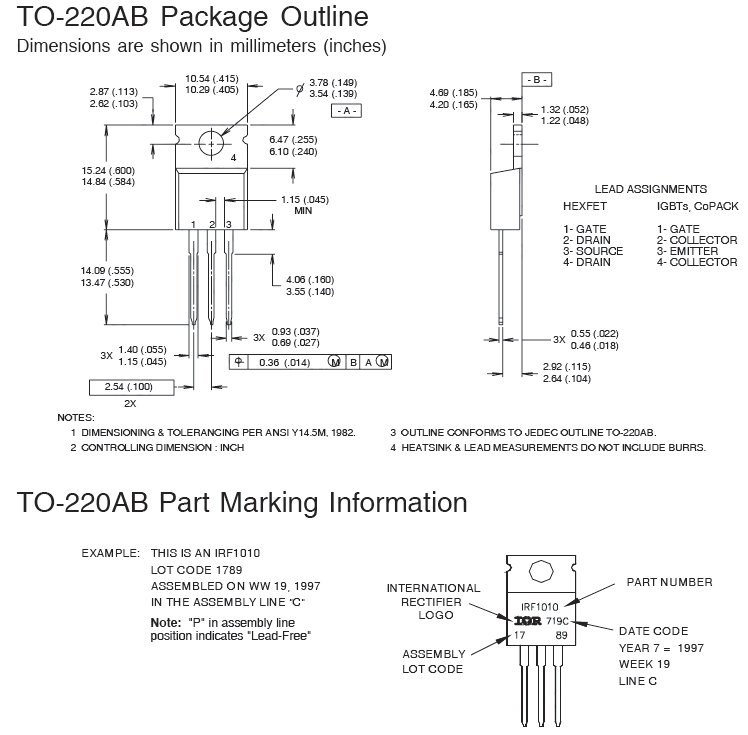

The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.
