肖特基二極體
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 0 |  | | ||
| 光復門市 | 70 | 170-2-02-E | | |
- 特性
Agilent- HSMS-286X Series
Features

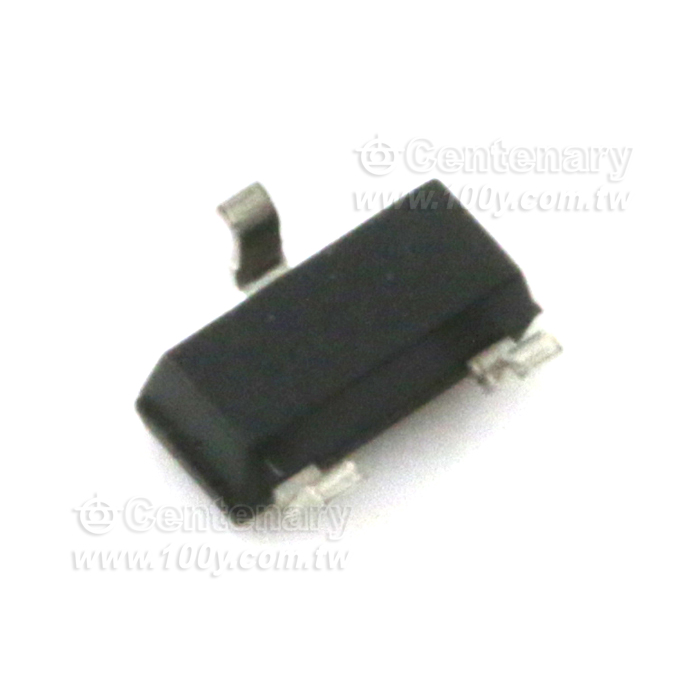

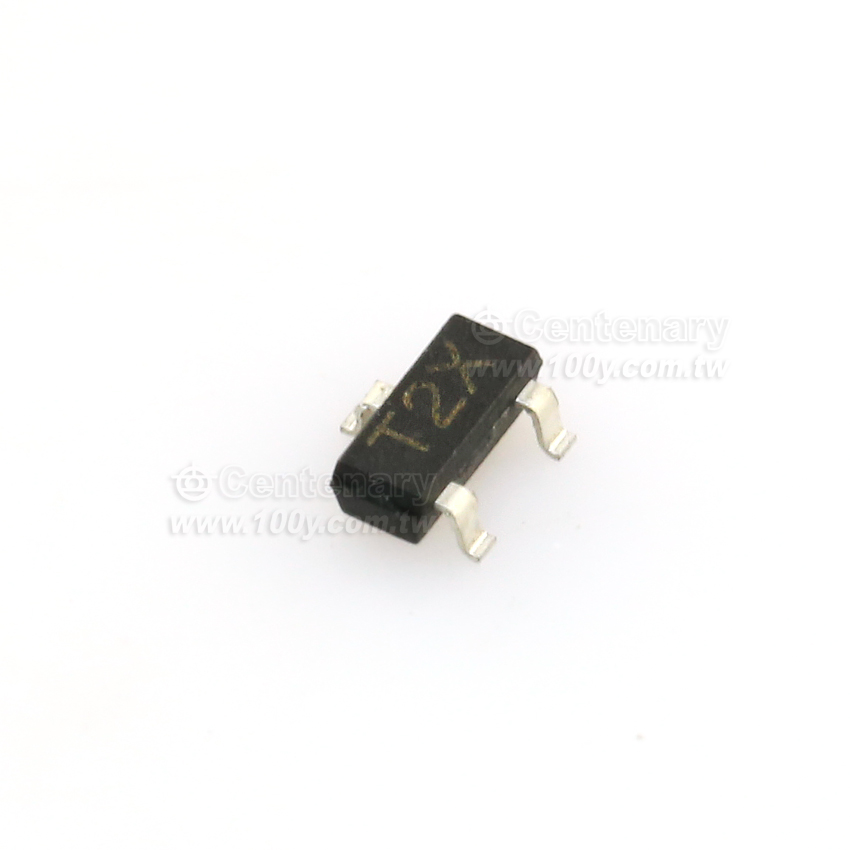

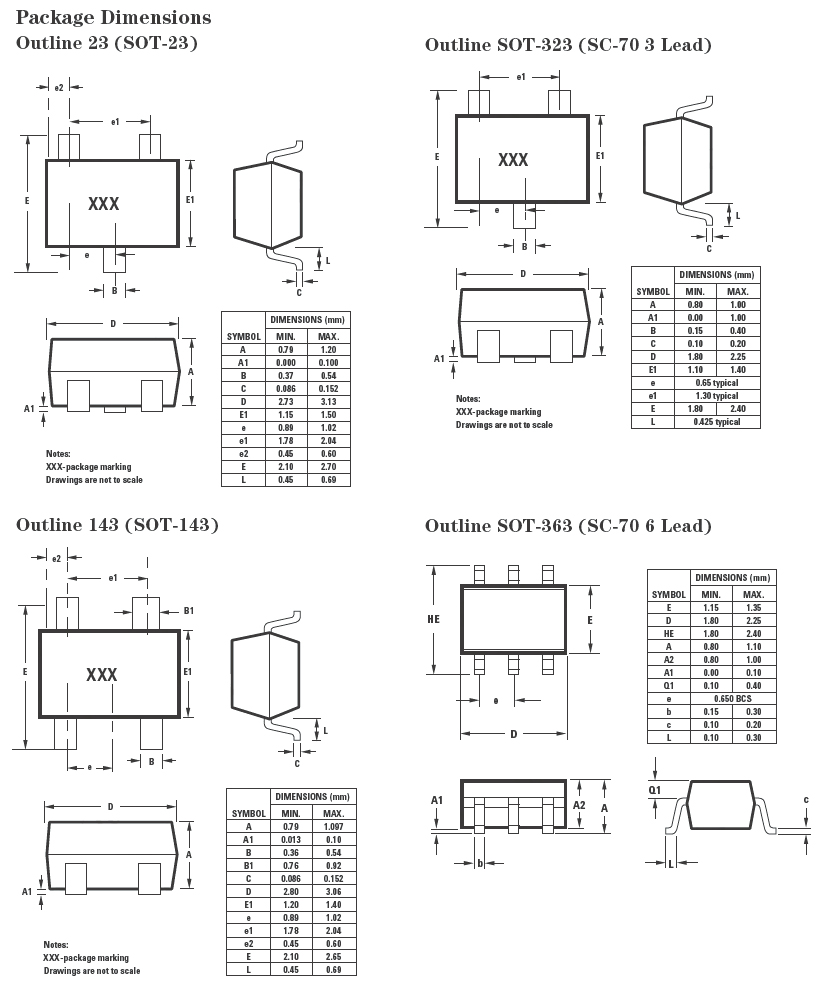

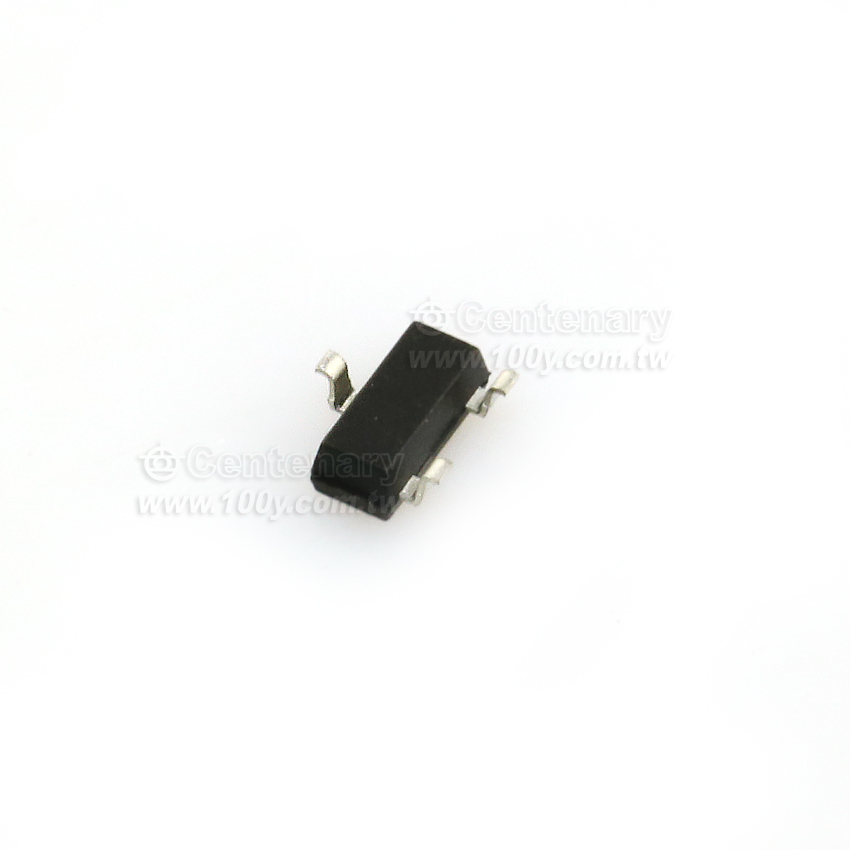

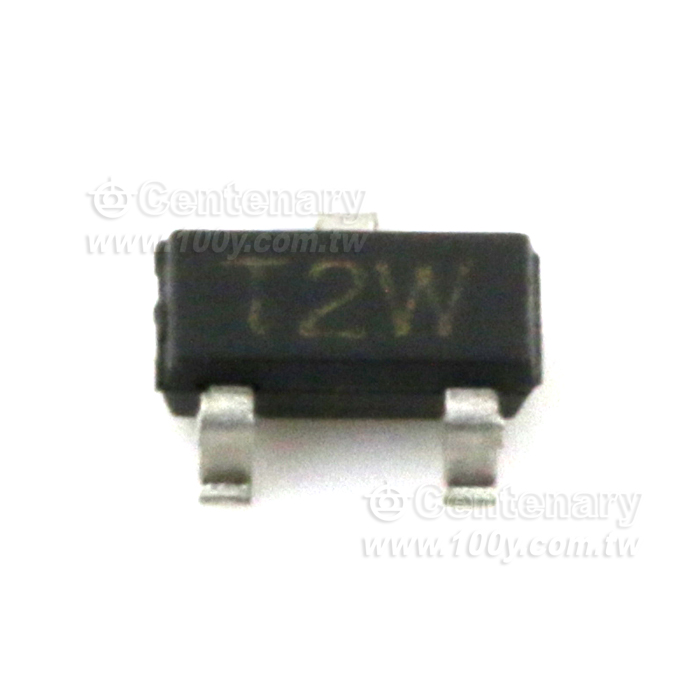

●Surface Mount SOT-23/SOT-143 Packages
●Miniature SOT-323 and SOT-363 Packages
●High Detection Sensitivity:
up to 50 mV/μW at 915 MHz
up to 35 mV/μW at 2.45 GHz
up to 25 mV/μW at 5.80 GHz
●Low FIT (Failure in Time) Rate

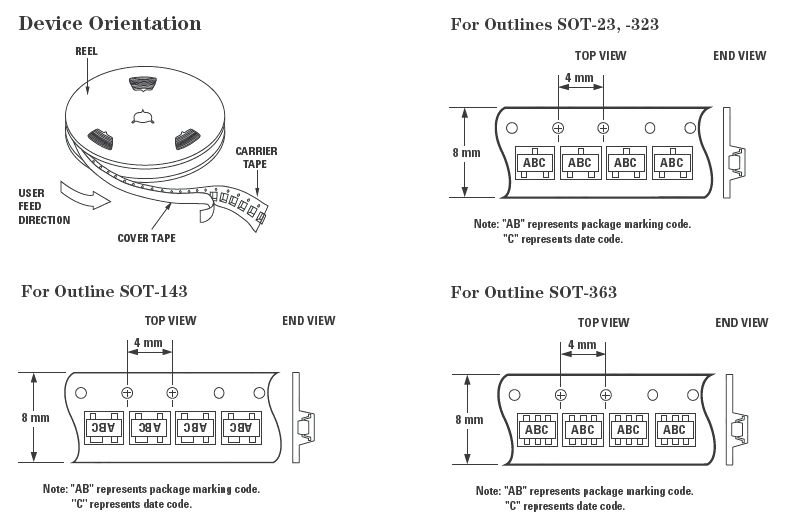

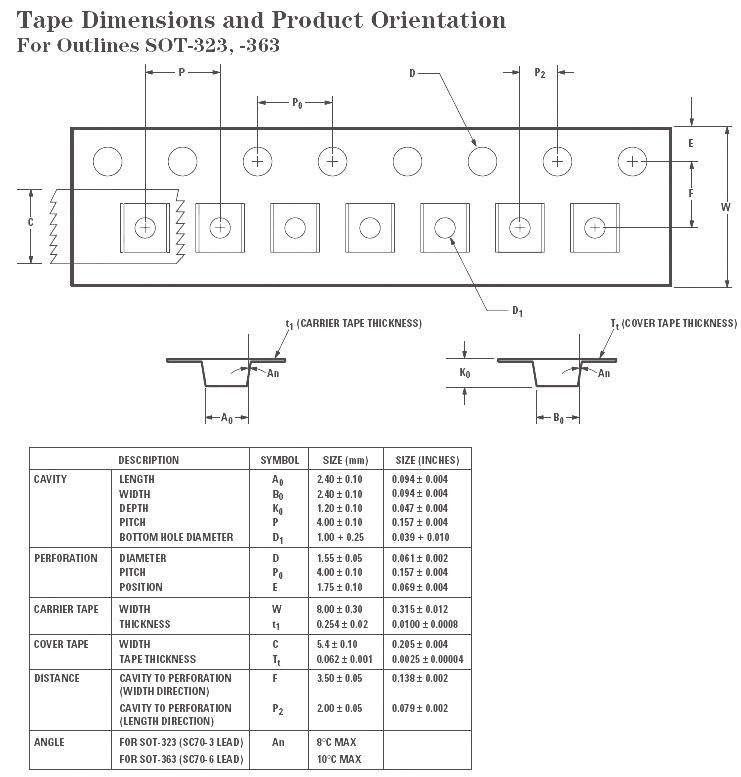

●Tape and Reel Options Available

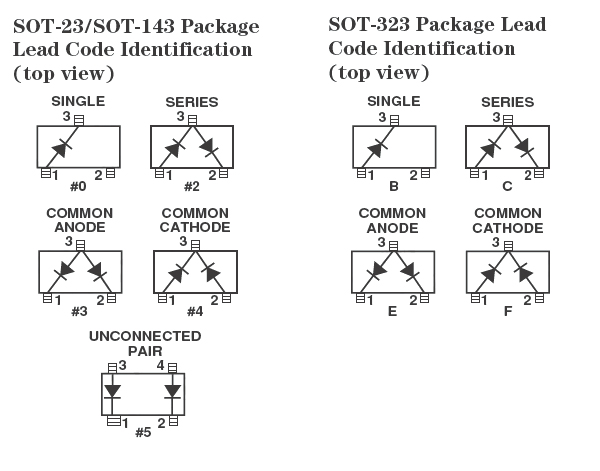

●Unique Configurations in Surface Mount SOT-363 Package
– increase flexibility
– save board space
– reduce cost
●HSMS-286K Grounded Center Leads Provide up to 10 dB Higher Isolation
●Matched Diodes for Consistent Performance
●Better Thermal Conductivity for Higher Power Dissipation
●Lead-free Option Available
Description
Agilent’s HSMS-286x family of DC biased detector diodes have been designed and optimized for use from 915 MHz to 5.8 GHz. They are ideal for RF/ID and RF Tag
applications as well as large signal detection, modulation, RF to DC conversion or voltage doubling.
Available in various package configurations, this family of detector diodes provides low cost solutions to a wide variety of design problems. Agilent‘s manufacturing techniques assure that when two or more diodes are mounted into a single surface mount package, they are taken from adjacent sites on the wafer, assuring the highest possible degree of match.
