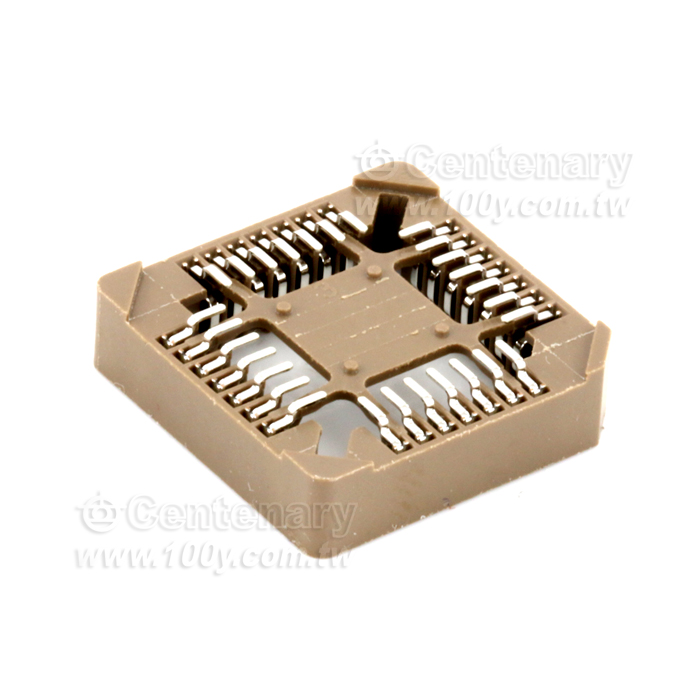

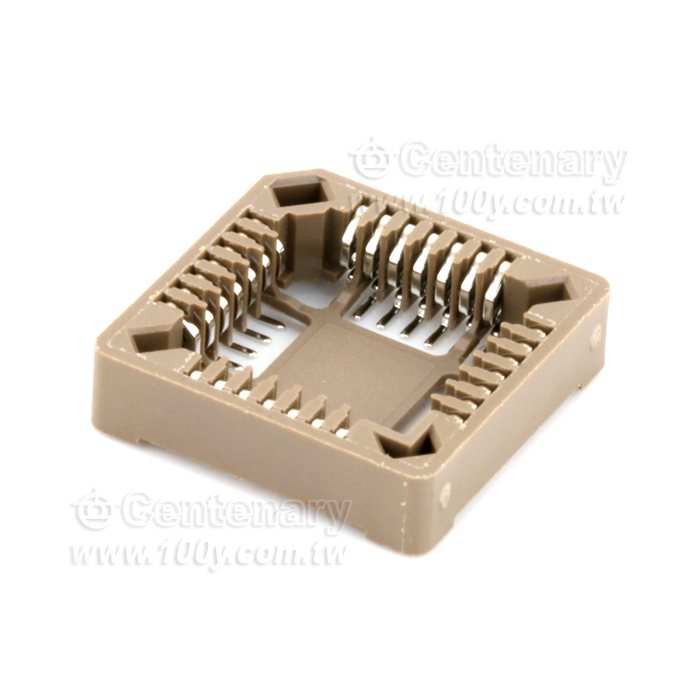

SMT PLCC 腳座
NT$110
Part No：
3433
Product No：
C20-28P-S
品牌：
說明：
技術文件：
包裝單位：
5 個
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 0 |  | | ||
| 光復門市 | 30 | 170-2-29-D | | |
產品特性
- 特性
C20 Series SMT PLCC 腳座
產品說明
Material
• Housing: High Temperature Housing UL94V-0 Withstands IR and CPR Soldering Methods
• Contacts: Phosphor Bronze
• Plating: Tin Plated
Electrical Characteristics
• Current Rating: 1 AMP
• Insulator Resistance: 500MΩ min. at DC 500V
• Contact Resistance: 200mΩ max. at Dc 100mA
• Operating Temperature: -55℃ ~ +105℃
• Capacitance: 1.0pF Max Between Adjacent contacts
Mechanical characteristics
• Insertion Force: 180g/Contact Max
• Withdrawal Force: 28.35g/Contact Max
• Life Cycle: 25 Mating Cycle Min
Features
• Surface Mount
• Hi-Temp Plastic (PPS)
• Low Profile 4.46mm (0.176") Height
• Accept Chip Carries Conforming To JEDEC Spec
