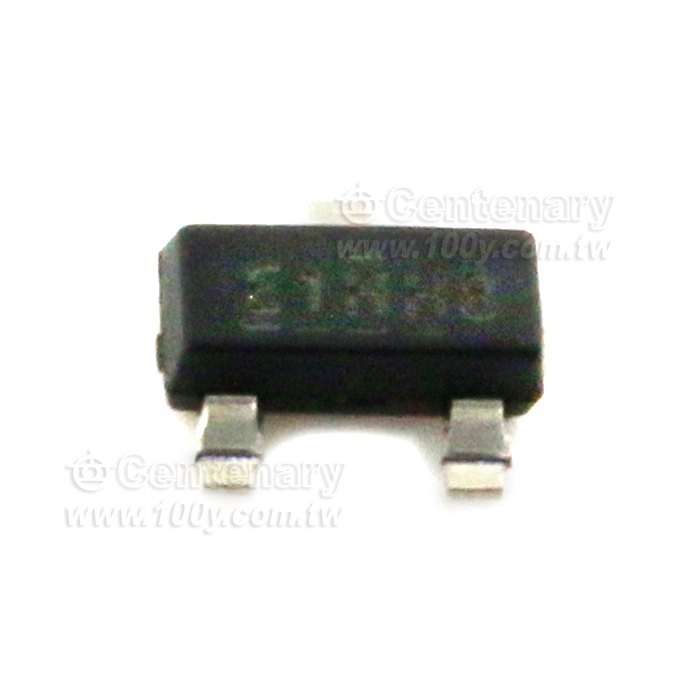

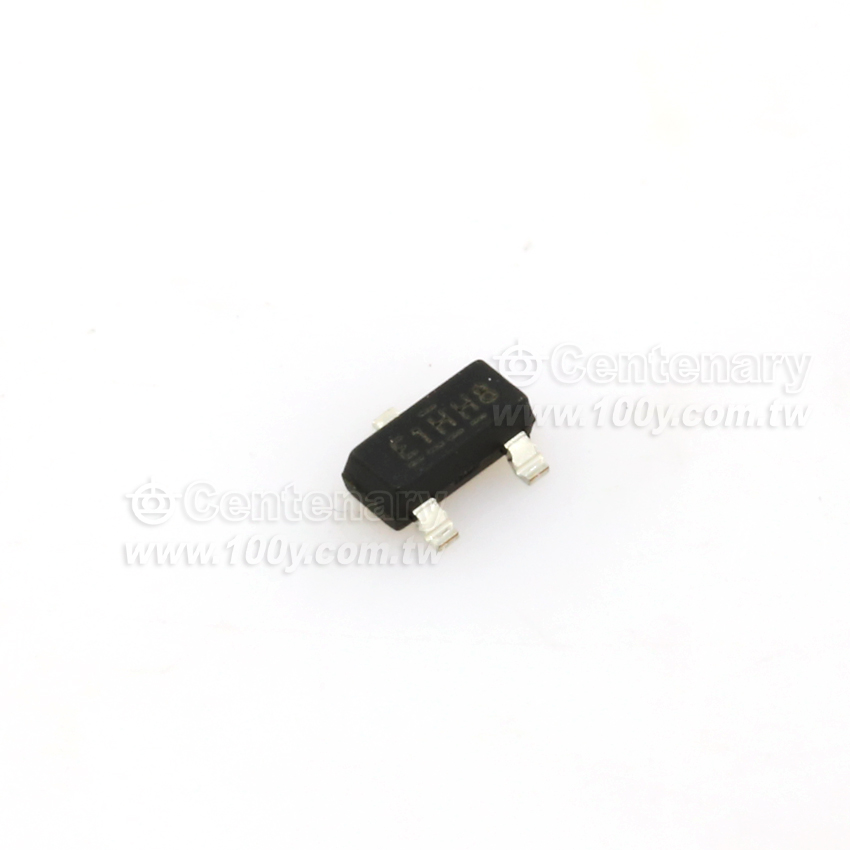

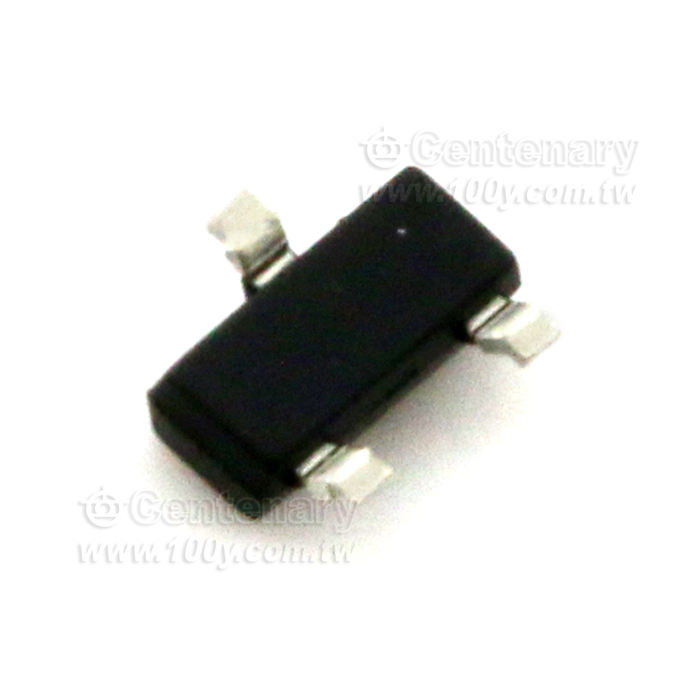

SOT-23 (ROHS) P-Ch. -20V/-3.7A
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 0 |  | | ||
| 光復門市 | 100 | 170-2-06-A | | 170-F-19-H | |
- 特性

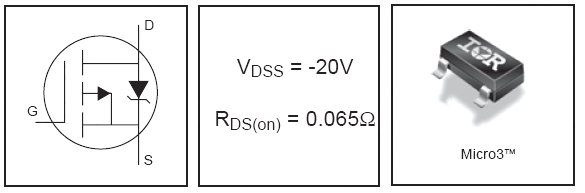

IR-IRLML6402TRPBF
HEXFET電源MOSFET
Description
These P-Channel MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low onresistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in battery and load management.
A thermally enhanced large pad leadframe has been incorporated into the standard SOT-23 package to produce a HEXFET Power MOSFET with the industry’s smallest footprint. This package, dubbed the Micro3™, is ideal for applications where printed circuit board space is at a premium. The low profile (<1.1mm) of the Micro3 allows it to fit easily into extremely thin application environments such as portable electronics and PCMCIA cards. The thermal resistance and power dissipation are the best available.
Features
●Ultra Low On-Resistance
●P-Channel MOSFET
●SOT-23 Footprint
●Low Profile (<1.1mm)

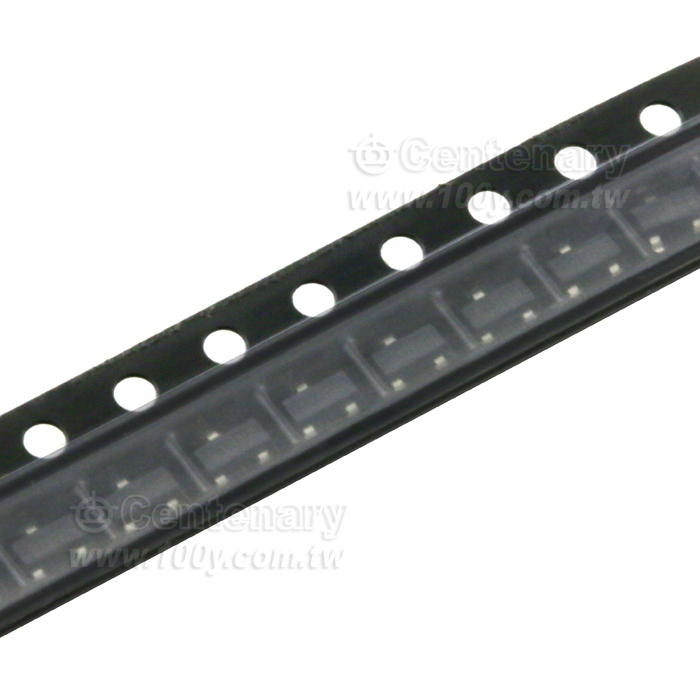

●Available in Tape and Reel
●Fast Switching
