40P測試腳座300-600mil
NT$96
Part No：
3835
Product No：
SL-1001-40P-11-UNIVERSAL
品牌：
說明：
技術文件：
包裝單位：
1 PC
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 2 | 167-3-33 |  | | |
| 光復門市 | 2 | 170-2-29-E | | 170-F-23-A | |
產品特性
- 特性

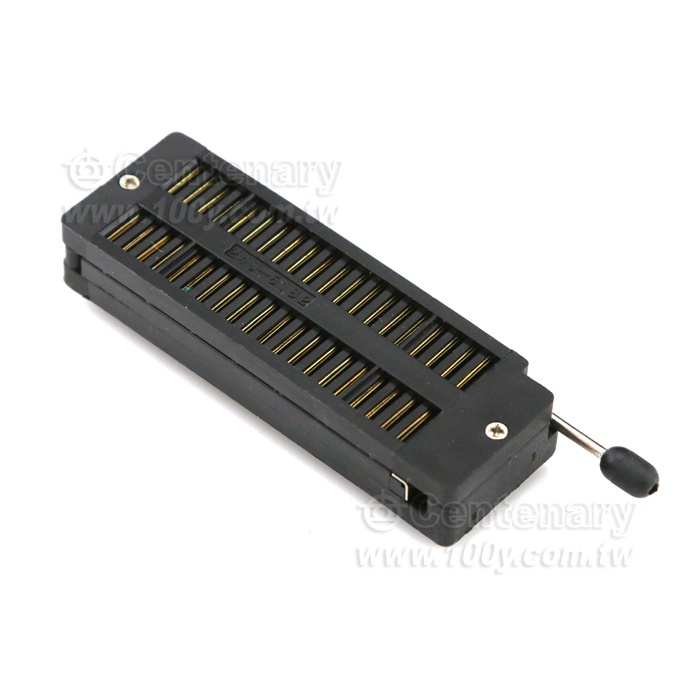

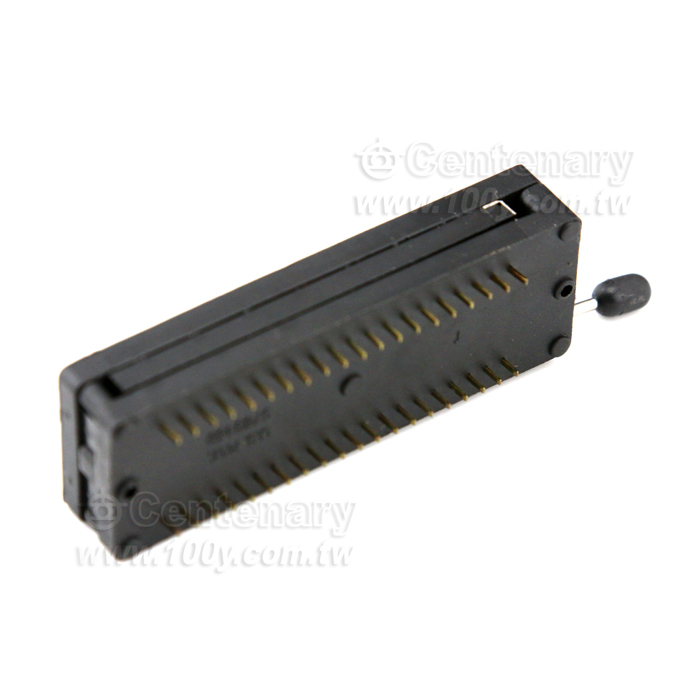

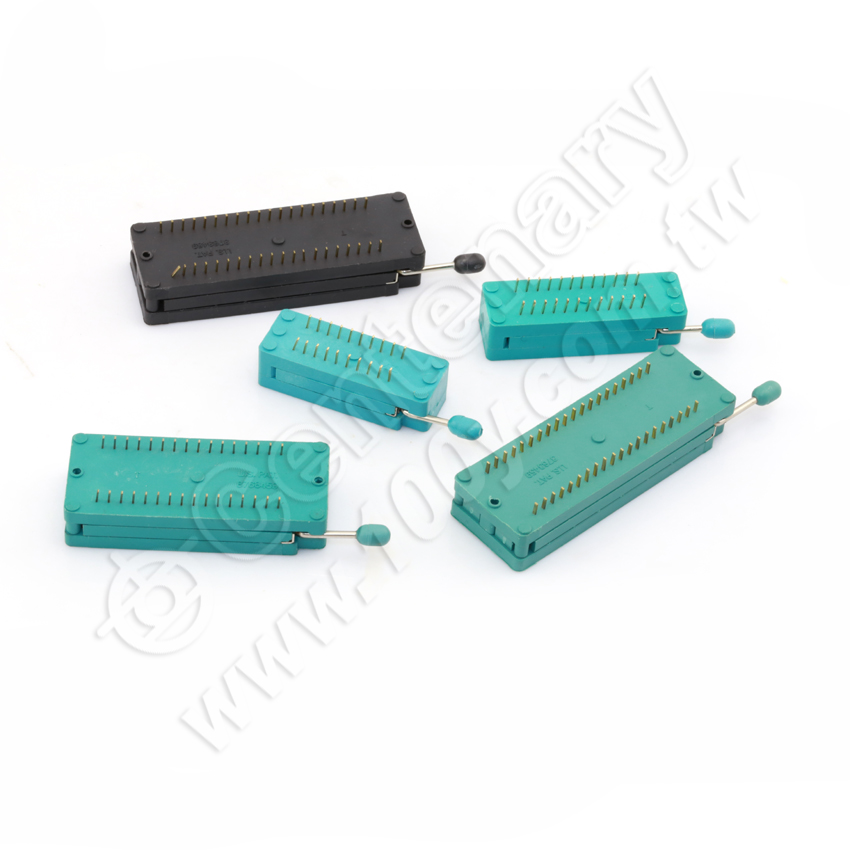

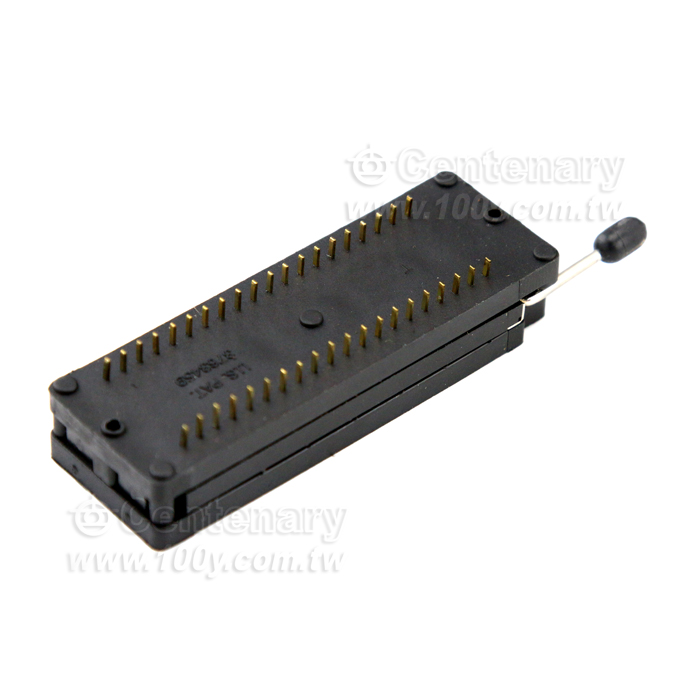

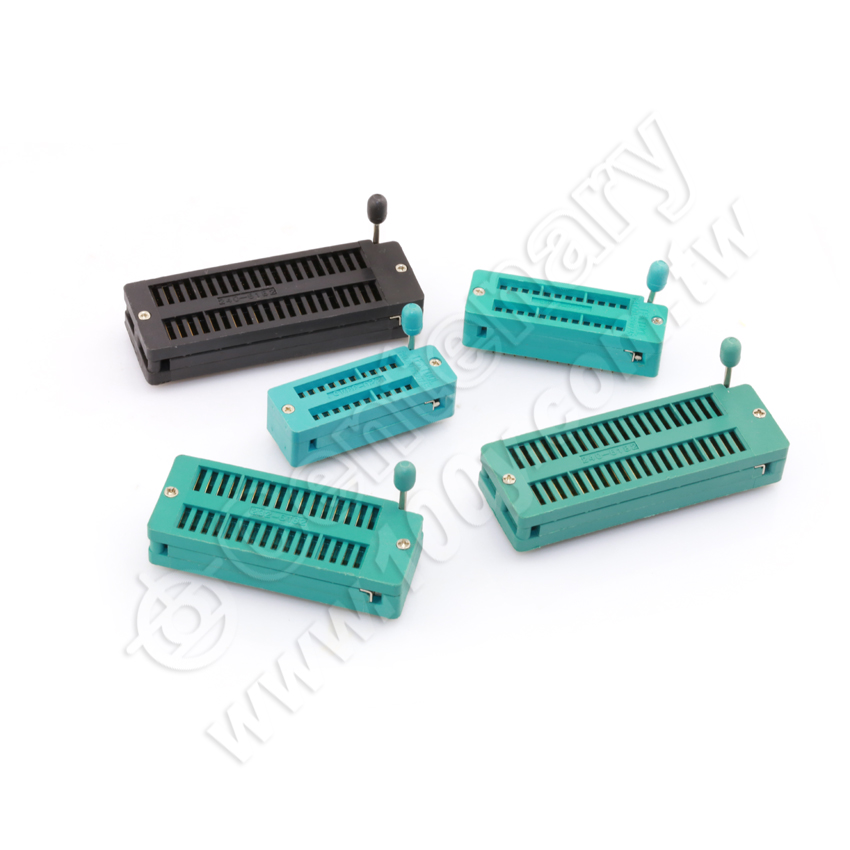

ZIP DIP SOCKET 2.54mm(0.100")/鎖緊雙列
Material
●Housing: 30% Glass filled PBT UL94V-0
●Contacts: Phosphor Bronze
●Plating: Gold plated: 3u" over 50u" nickel
●Tin plated: 100u" over 50u" nickel
Electrical Characteristics
●Current Rating: 1 AMP
●Insulator Resistance: 5000MΩmin. at DC 500V
●Contact Resistance: 20mΩmax. at DC 100mA
●Operating Temperature: -55℃~+105℃
Features
● For DIPs with ~100" lead spacing.
● Lever actuated zero instrtion force mechanism.
● Socket easily disassembles for repairability.
● Socket contact point of. 11 O" below top surface of socket.
