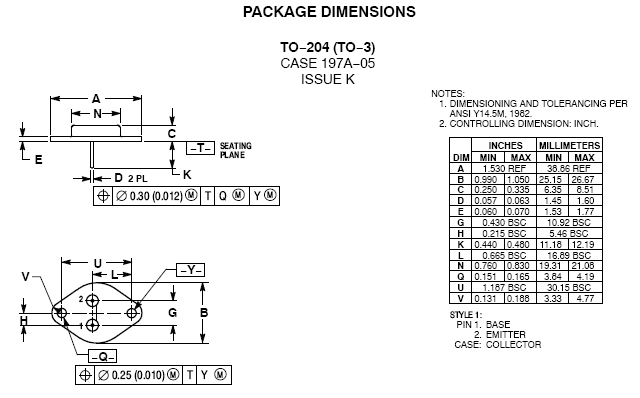

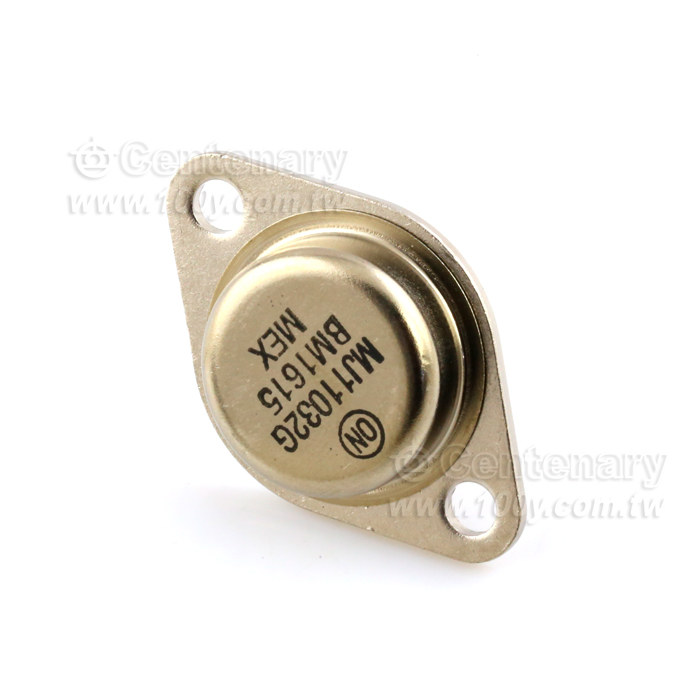

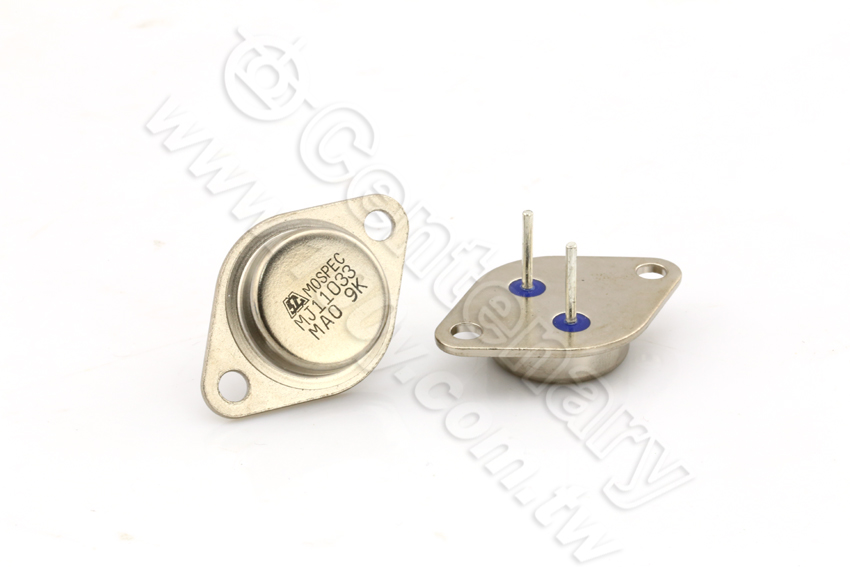

2P/TO-3 50A 120V達林頓NPN功率晶體管
NT$480
Part No：
40608
Product No：
MJ11032G
品牌：
ON-Semi.
說明：
技術文件：
包裝單位：
1 個
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 0 |  | | ||
| 光復門市 | 3 | 170-2-02-K | | 170-F-19-G | |
產品特性
- 特性
ON-Semi.-MJ Series
MJ11028, MJ11029, MJ11030, MJ11032, MJ11033
Description
High−Current Complementary Silicon Power Transistors are for use as output devices in complementary general purpose amplifier applications.
Features
● High DC Current Gain −
hFE = 1000 (Min) @ IC = 25 Adc
hFE = 400 (Min) @ IC = 50 Adc

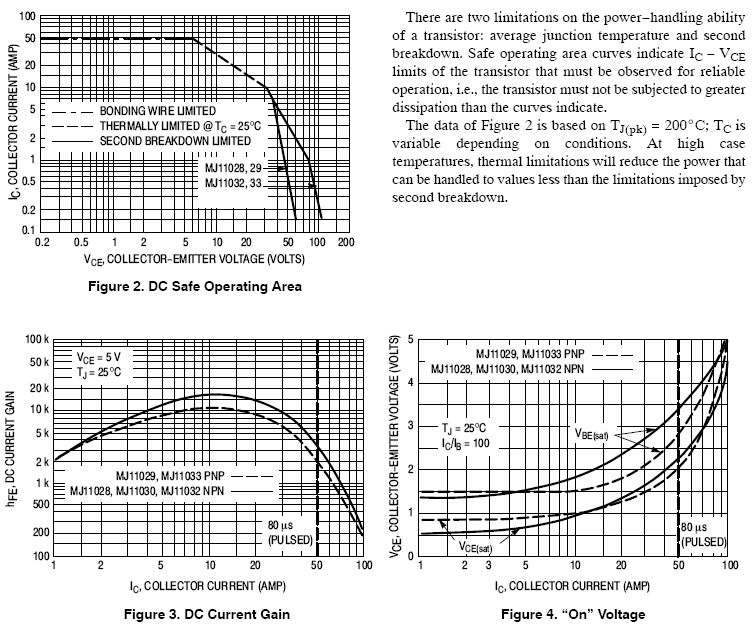

●Curves to 100 A (Pulsed)
●Diode Protection to Rated IC

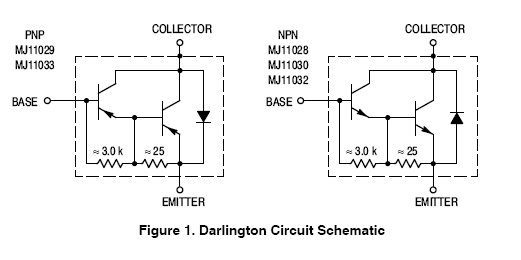

●Monolithic Construction with Built−In Base−Emitter Shunt Resistor
●Junction Temperature to +200_C
●Pb−Free Packages are Available
