單面銅箔膠帶(單面膠不導電)
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 1 | 167-2-41 |  | | |
| 光復門市 | 1 | 170-1-31 | | |
- 特性
3M-1194 Tape單面銅箔膠帶
Product Description

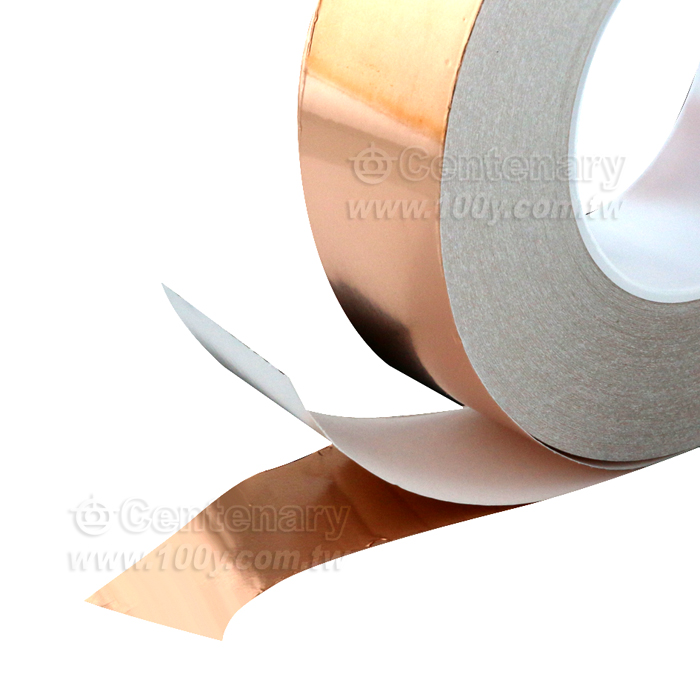

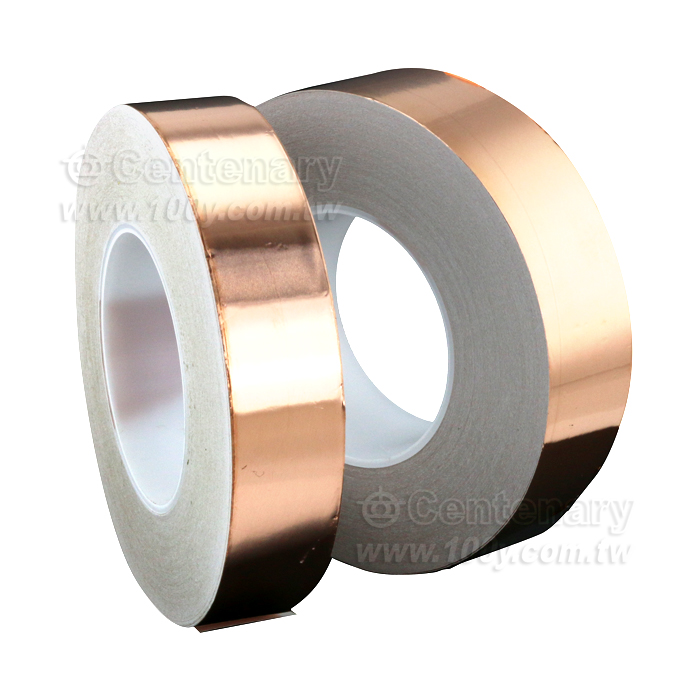

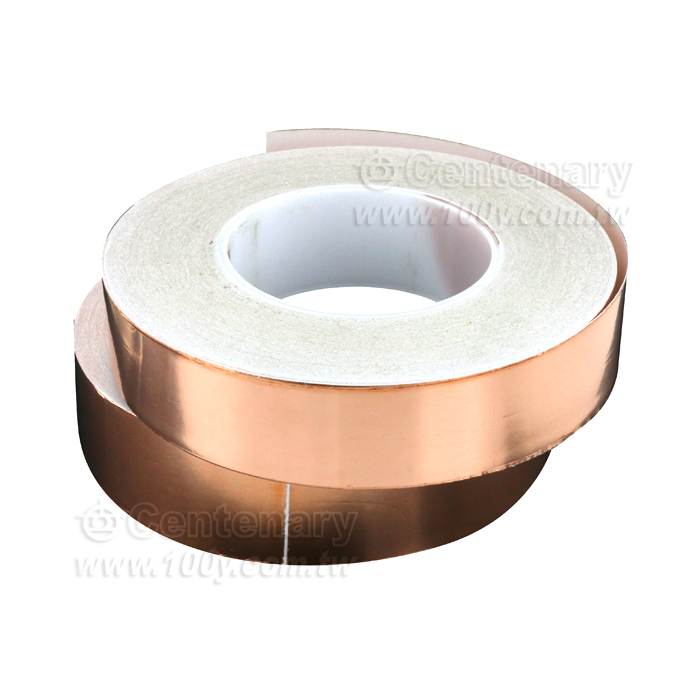

3M 1194 Tape consists of a 1-ounce deadsoft copper foil backing and an aggressive nonconductive pressure-sensitive acrylic adhesive.
• Deadsoft 1-ounce copper foil backing
• Nonconductive acrylic adhesive
• Supplied on a removable liner for easy handling and diecutting

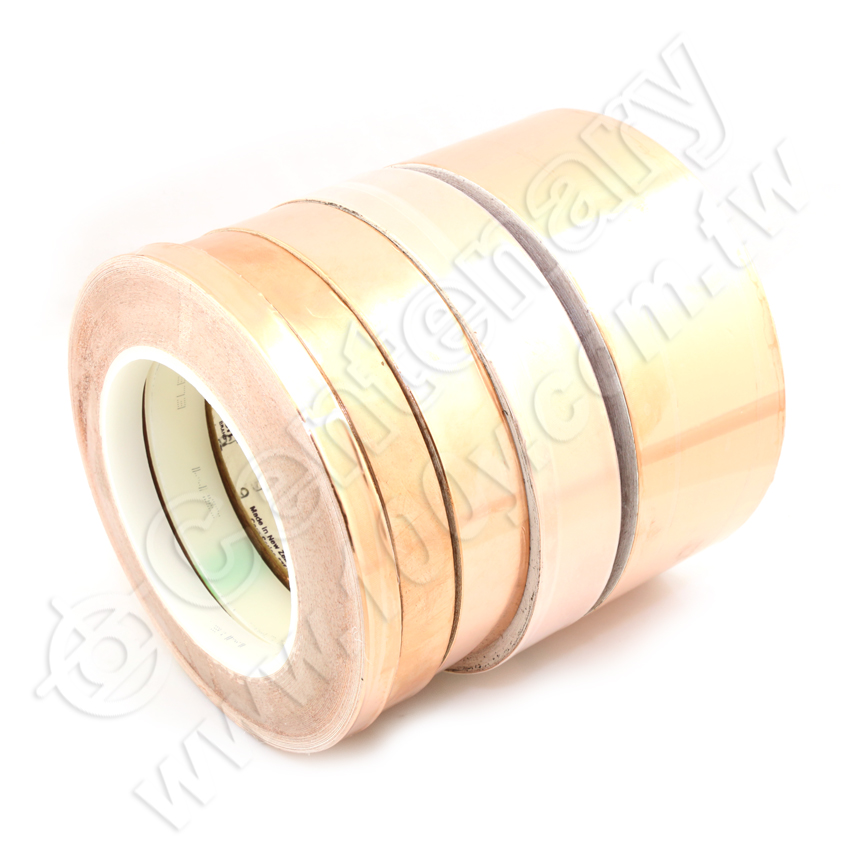

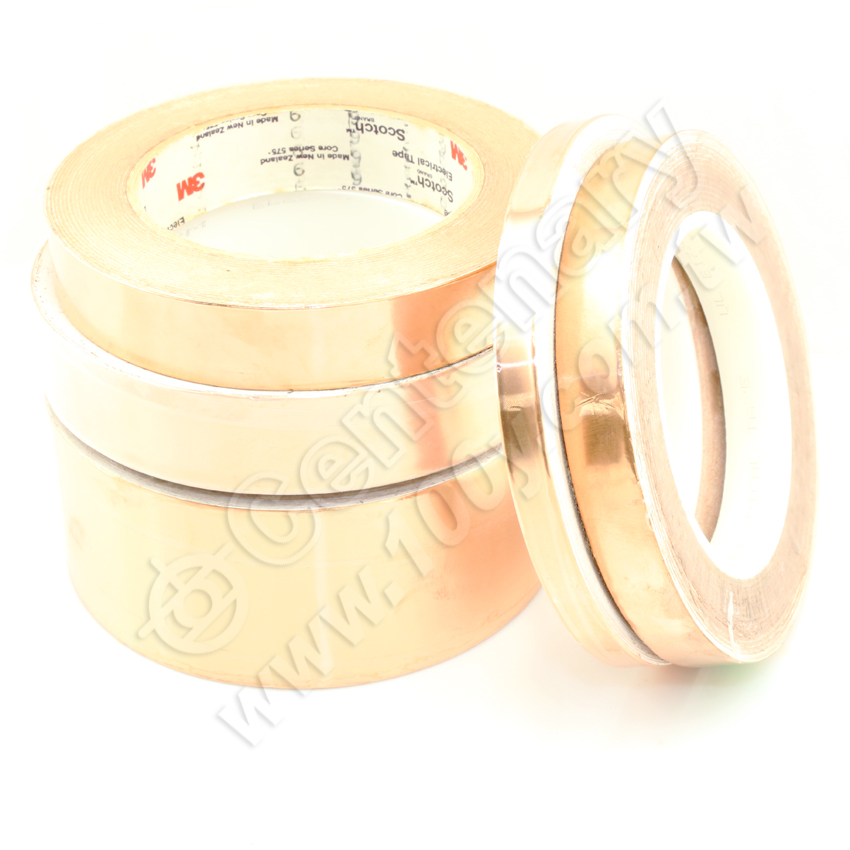

Like all 3M shielding tapes, 3M 1194 is available in standard and custom widths and lengths. Standard length for 3M 1194 is 36 yards.
• Widths from 1/4” to 23”
• Longer lengths up to several times normal length, dependent upon width. Check with Customer Service.
Applications
3M 1194 Tape is typically used for applications requiring economical electrical bonding, grounding, and EMI shielding. The copper foil backing is solderable and resists oxidation and discoloration.
Shielding Effectiveness
Many factors determine the true shielding effectiveness of a shielding tape, including type and thickness of foil, adhesive type, intimacy of contact, smoothness of application surface, strength and frequency of the EMI signal, etc. However, using standard tests and fixtures, it is possible to determine a value for the attenuation.
For 3M 1194 Tape, typical shielding effectiveness (far field) is in the range of 50dB to 60dB (30 MHz to 1 GHz).
