16P/DIP (ROHS)
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 0 |  | | ||
| 光復門市 | 205 | 170-2-6Q | | 170-F-19-F | |
- 特性
SHARP-PC847XJ0000F Series
Description
PC847XJ0000F Series contains an IRED optically coupled to a phototransistor. It is packaged in a 4-channel package, available in SMT gullwing lead-form option. Input-output isolation voltage(rms) is 5.0kV. Collector-emitter voltage is 80V and CTR is 50% to 600% at input current of 5mA.
Features

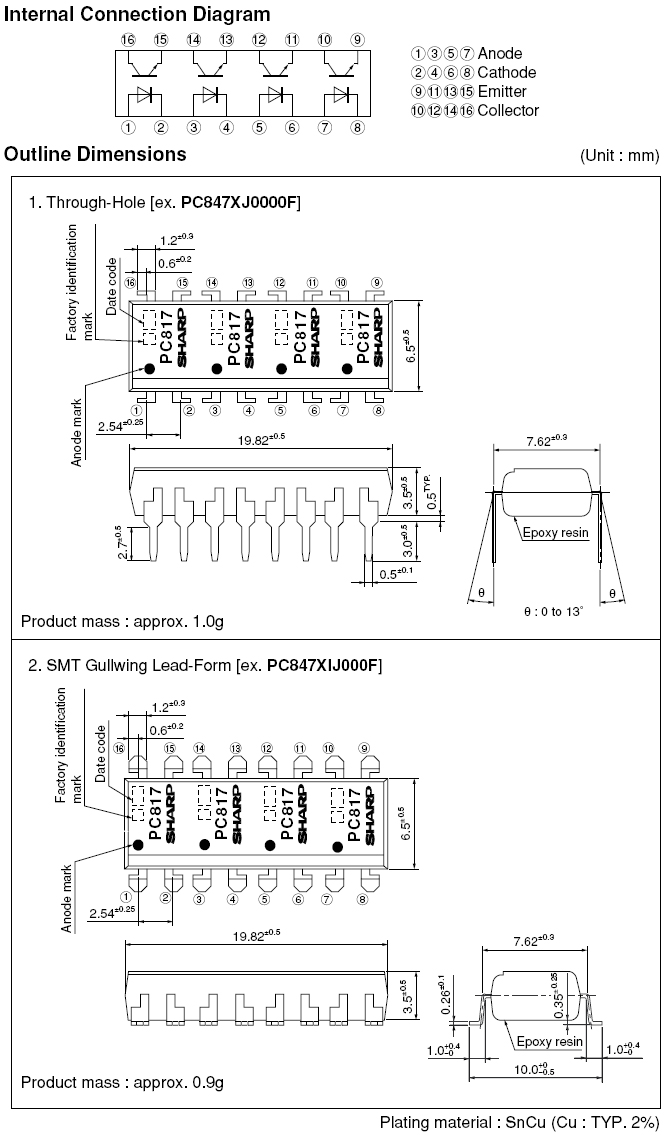

1. 16pin DIP 4-channnel package
2. Double transfer mold package (ldeal for Flow Soldering)
3. High collector-emitter voltage (VCEO : 80V)
4. Current transfer ratio (CTR : MIN. 50% at IF=5mA, VCE=5V)
5. Several CTR ranks available
6. High isolation voltage between input and output (Viso(rms) : 5.0kV)
7. Lead-free and RoHS directive compliant
Agency approvals/Compliance
1. Recognized by UL1577 (Double protection isolation), file No. E64380 (as model No. PC817)
2. Package resin : UL flammability grade (94V-0)
Applications
1. I/O isolation for MCUs (Micro Controller Units)
2. Noise suppression in switching circuits
3. Signal transmission between circuits of different potentials and impedances
