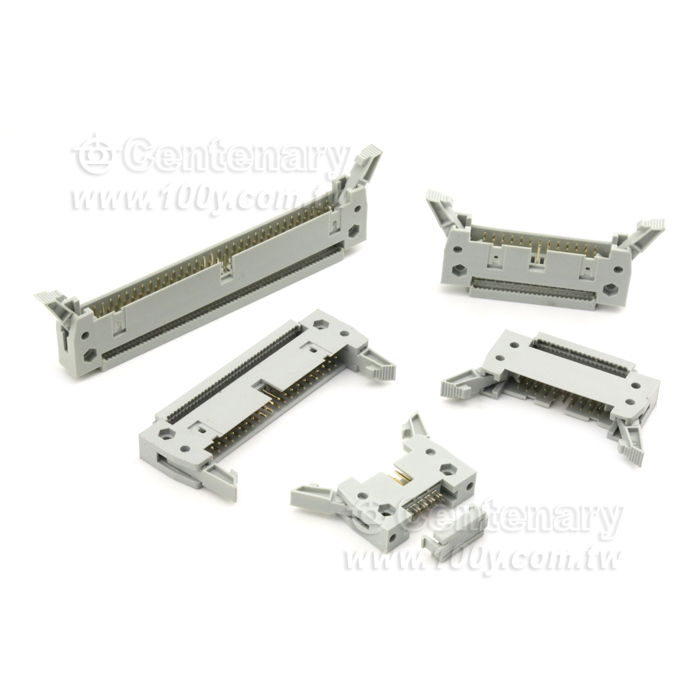

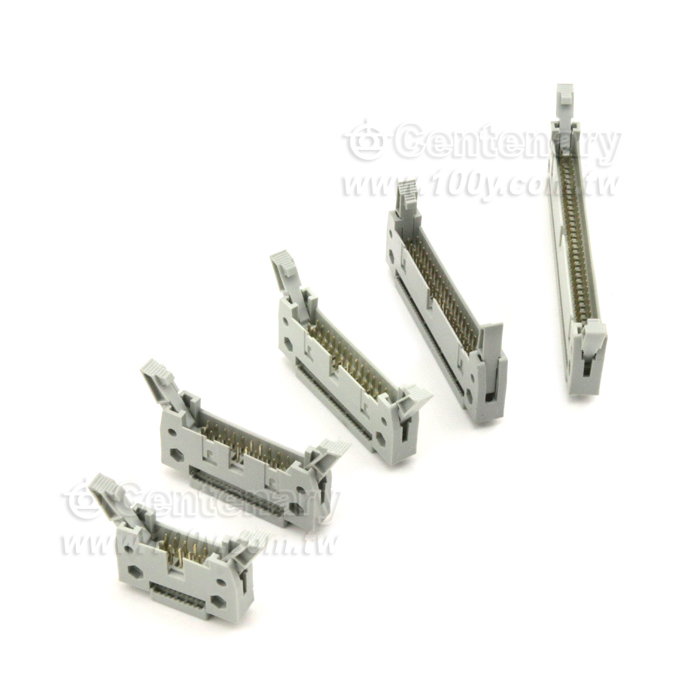

14P_IDC壓排牛角公頭 P:2.54mm【ROHS】
NT$58
Part No：
4185
Product No：
DS1012-14N
品牌：
說明：
技術文件：
包裝單位：
2 個
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 96 | 167-3-32 |  | 167-3-81A | |
| 光復門市 | 32 | 170-2-32-C | | 170-2-02上 | |
產品特性
- 特性

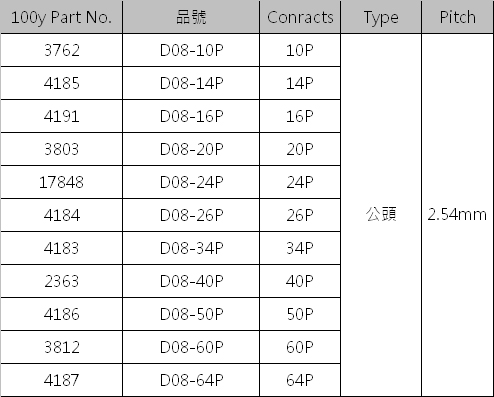

D08-14P
D08 IDC壓排牛角公頭

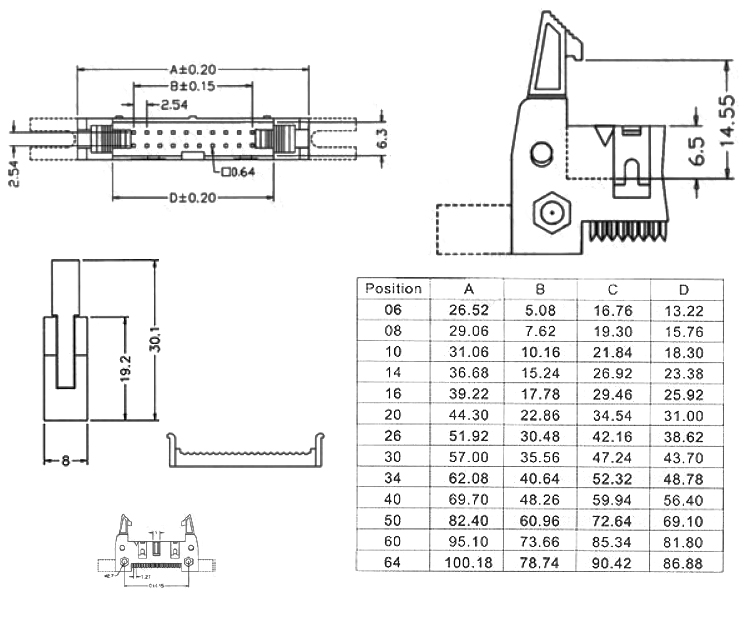

商品規格
Material
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass
Plating: Selective gold plated: gold plated on
mating area and nickel plated on wire
Cutting area
Cable: 1.27mm (0.050") pitch flat cable
Electrical Characteristics
Current Rating: 1 AMP
Insulator Resistance: 5000MΩmin. at DC 500V
Contact Resistance: 20mΩmax. at DC 100mA
Operating Temperature: -55℃~+105℃
Features
* Fully shrouded provides ultimate reliability.
* Mounting ears optional.

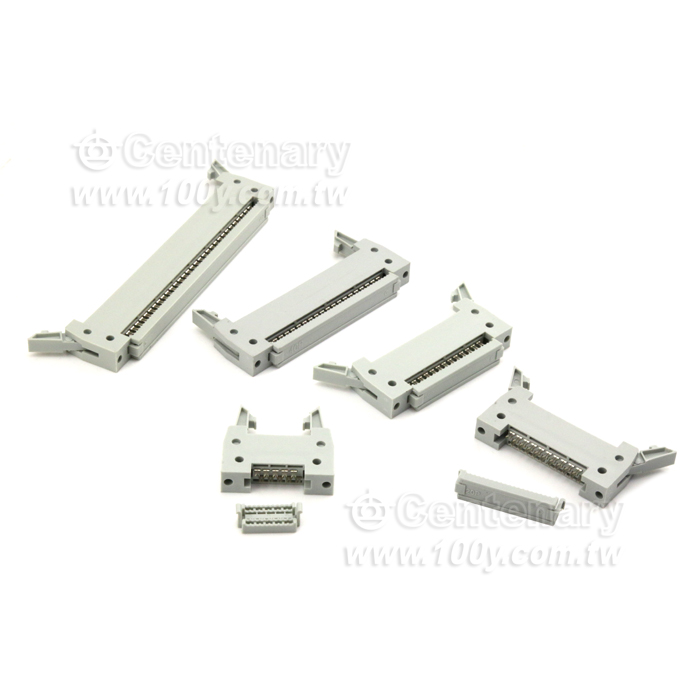

Mates with:101 102 520
