壓排IC座24P/0.1*0.6
NT$26
Part No：
4200
Product No：
C23-24P
品牌：
說明：
技術文件：
包裝單位：
1 個
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 0 | 167-3-33 |  | | |
| 光復門市 | 14 | 170-2-29-D | | |
產品特性
- 特性

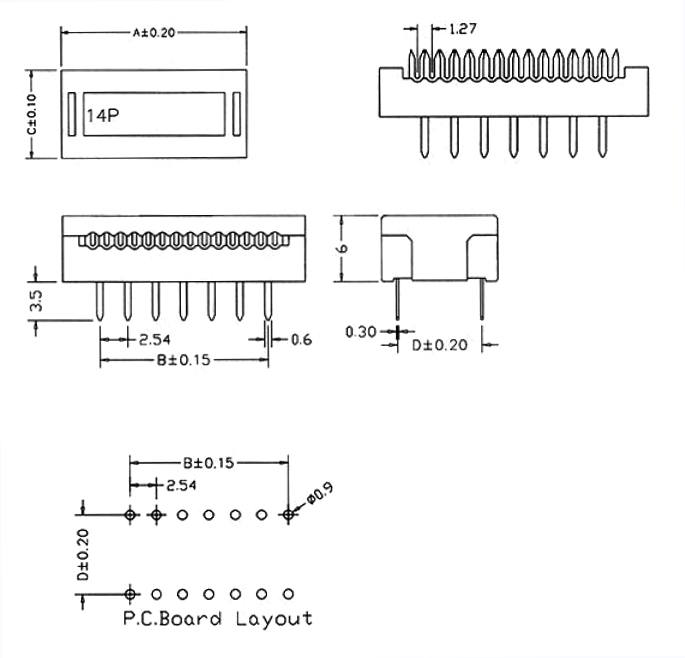

C23 Series 壓排IC座
產品規格
Material
Housing: 30% Glass Filled PBT UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Selective Gold Plated: Gold Plated on Mating Area and Nickel Plated On Wire Cutting Area
Gold Plated: 2u" Over 50u" Nickel
Tin Plated: 100u" Over 50u" Nickel
Cable: 1.27mm (0.050") Pitch Flat Cable
Electrical Characteristics
Current Rating: 1 AMP
Insulator Resistance: 5000MΩmin. at DC 500V
Contact Resistance: 20MΩmax. at DC 100mA
Operating Temperature: -55℃~+105℃
Features
Recommended 28AWG 1.27mm (0.05") Flat Cable
Plug Directly Into PCB
