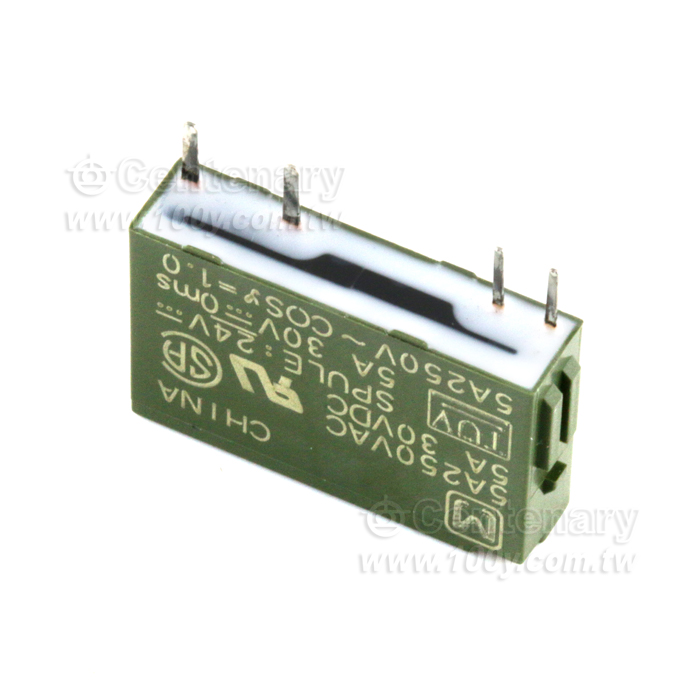

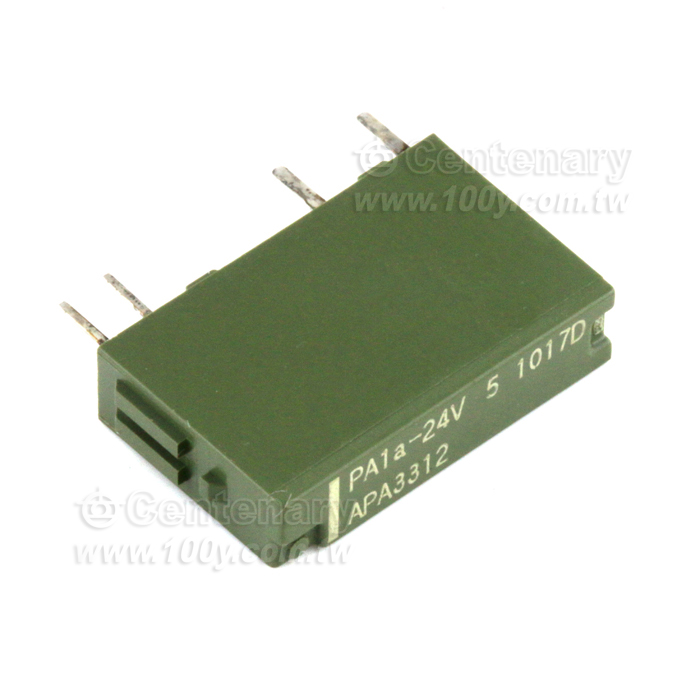

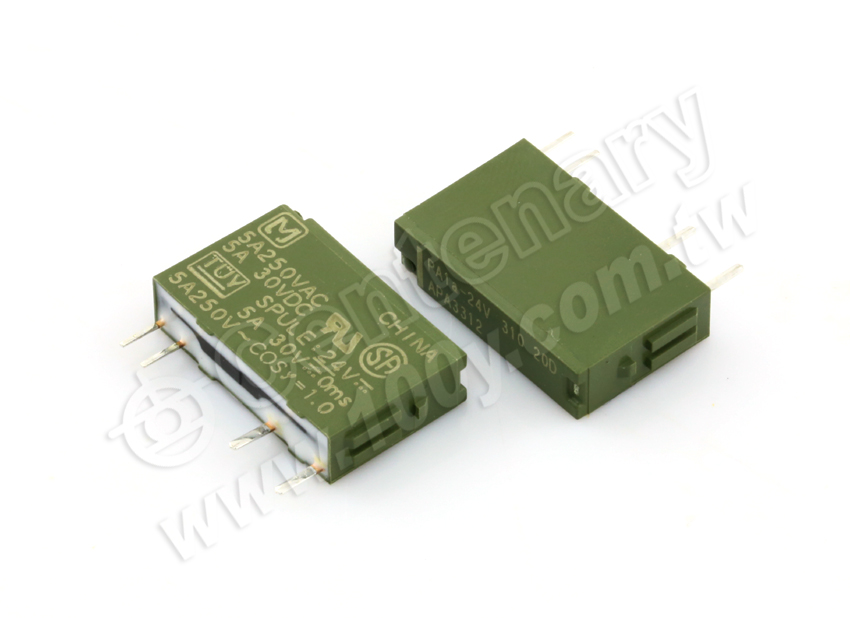

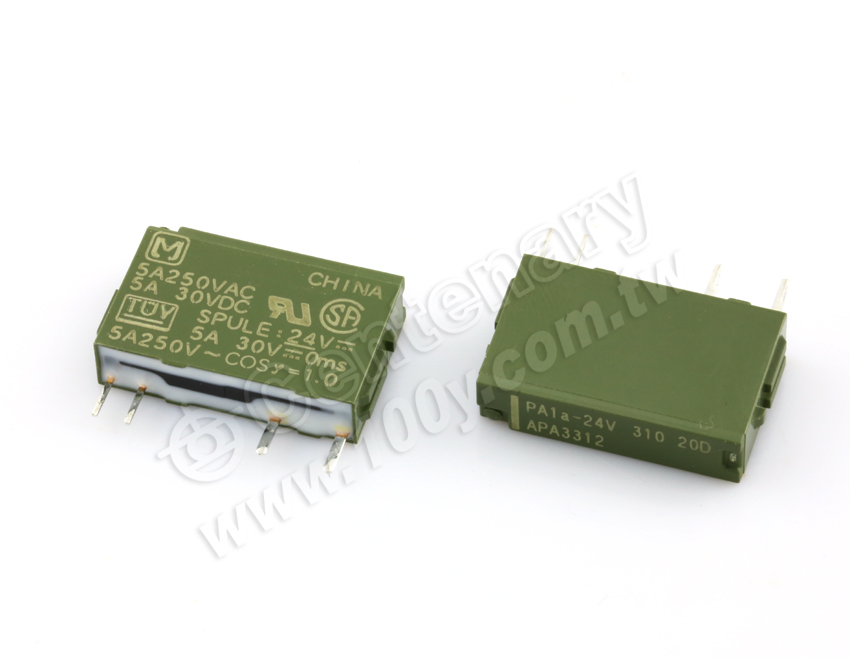

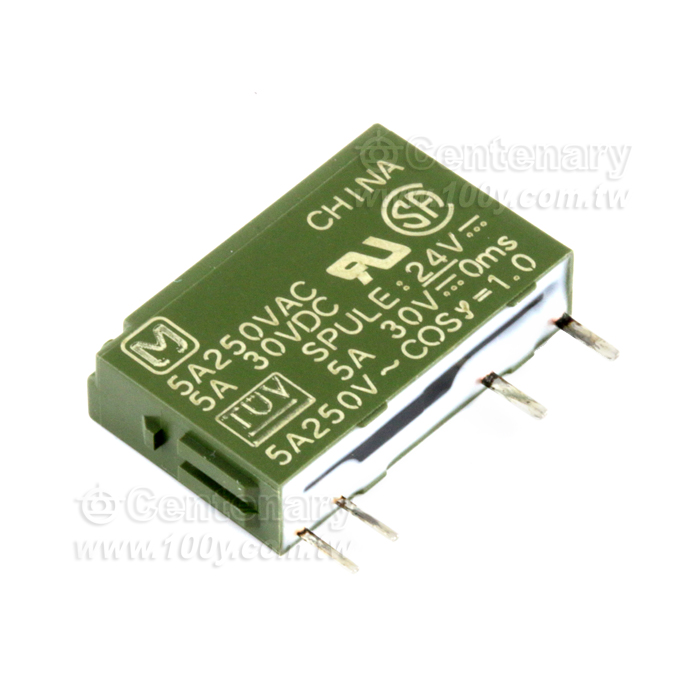

NAIS_24VDC一組常開4腳5A
NT$199
Part No：
46939
Product No：
PA1a-24V
品牌：
NAIS
說明：
技術文件：
包裝單位：
1 PC
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 17 | 167-1-11 |  | | |
| 光復門市 | 23 | 168-2-47-C | | 170-F-37-C | |

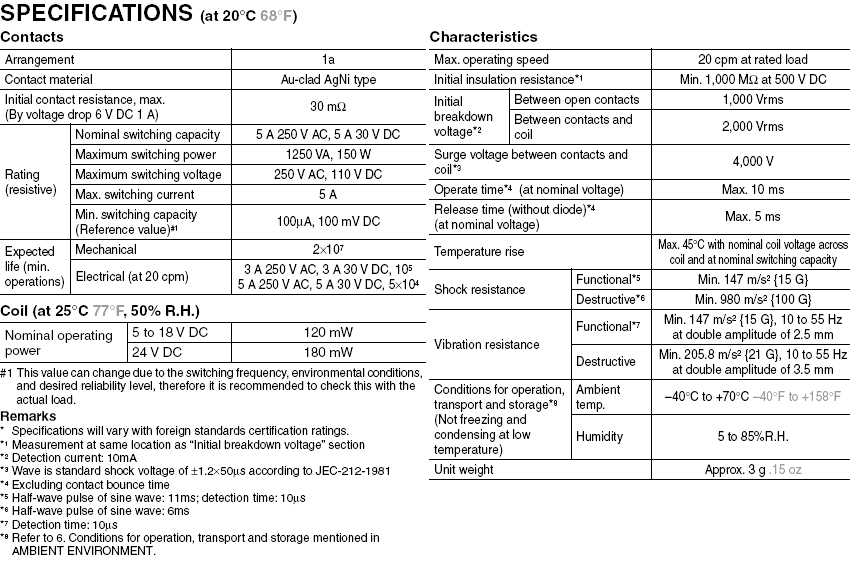

產品特性
- 特性
PA RELAYS
FEATURES

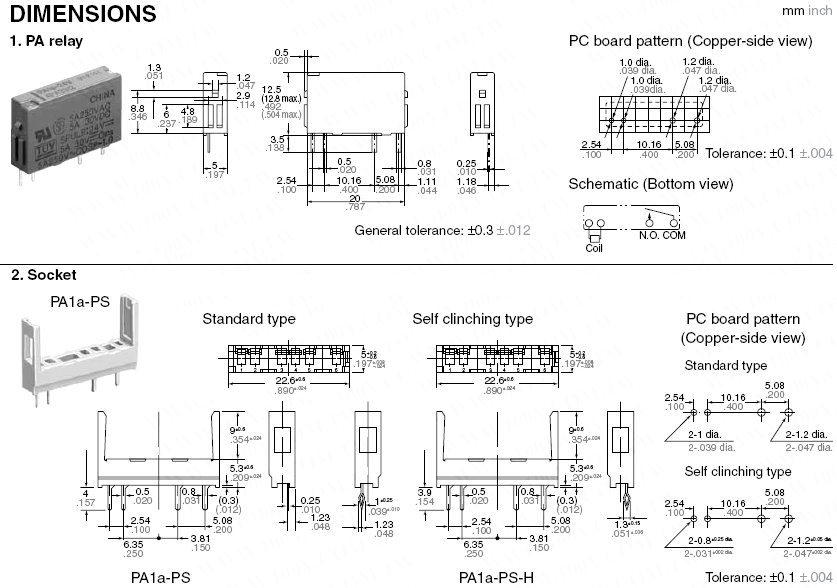

●Slim size (width 5 mm .197 inch, height 12.5 mm .492 inch) permits higher density mounting
●Wide switching capacity: Control from 100μA 100 mV to 5 A 250 V AC, 30 V DC
●High sensitivity: 120 mW (Nominal) (5 to 18 V DC type)
●High surge voltage (4000 V) and high breakdown voltage (2000 V)
●Shock & vibration resistance (functional): Min. 147m/s2 {15 G}
●SIL (single in line) terminal layout
●Reinforced according to IEC1131-2 (TUV)
TYPICAL APPLICATIONS
●Interface relays for programmable controllers
●Output relays for measuring equipment, timers, counters and temperature controllers
●Industrial equipment, office equipment

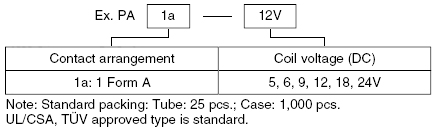

ORDERING INFORMATION

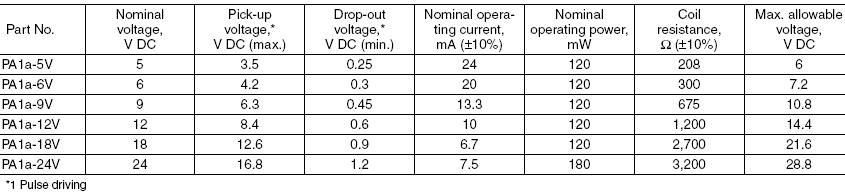

TYPES AND COIL DATA (at 20℃ 68℉)
