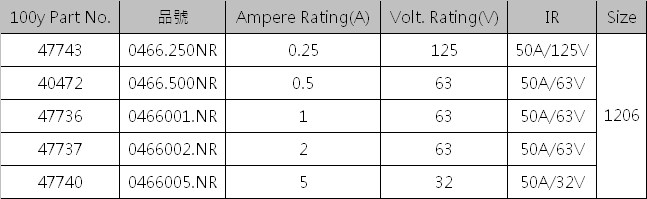

1206 1A/63V 無鉛
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 150 | 167-2-20 |  | | |
| 光復門市 | 3782 | 170-2-41D | | 170-F-12-A | |
- 特性
Littelfuse-466 Series Fuse
Description

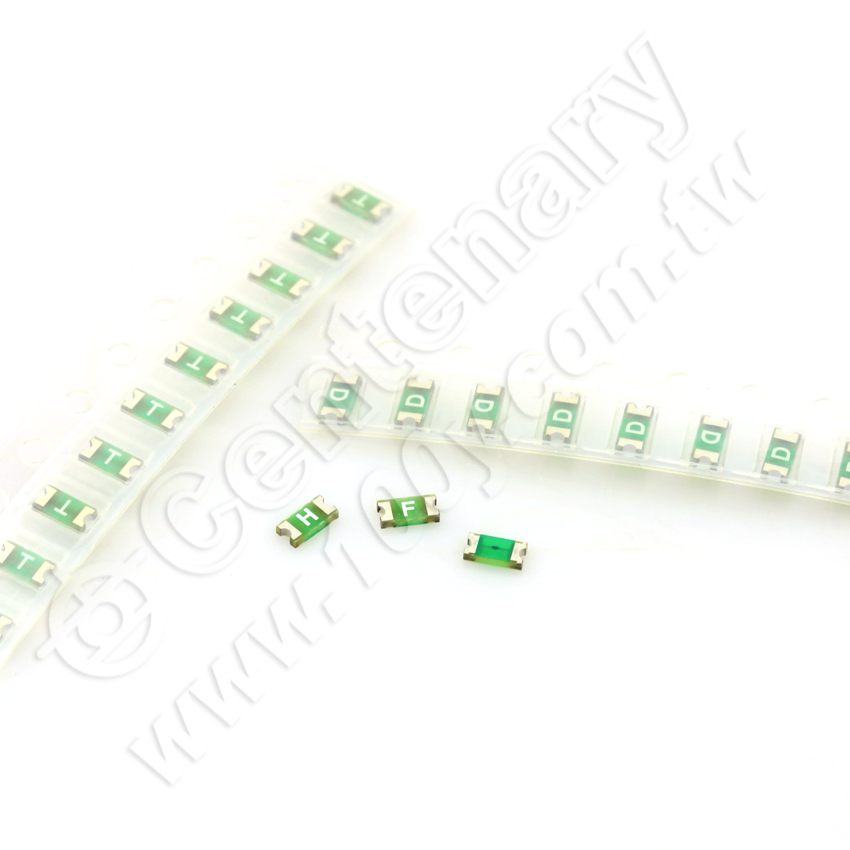

The 466 Series Fast-Acting Surface Mount Fuse (SMF) is a small (1206 size) thin-film device designed for secondary protection of circuits used in space constrained applications such as hand-held portable electronic devices.
This series is 100% lead-free and meets the requirements of the RoHS directive. New Halogen-Free 466 Series fuses are available to order using the “HF” suffix. See Part Numbering section for additional information.
Features

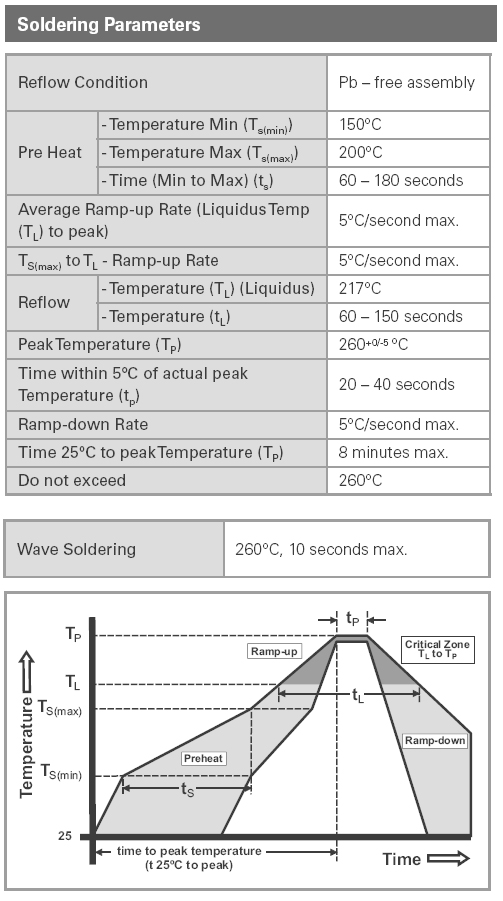

●Product is compatible with lead-free solders and higher temperature profiles

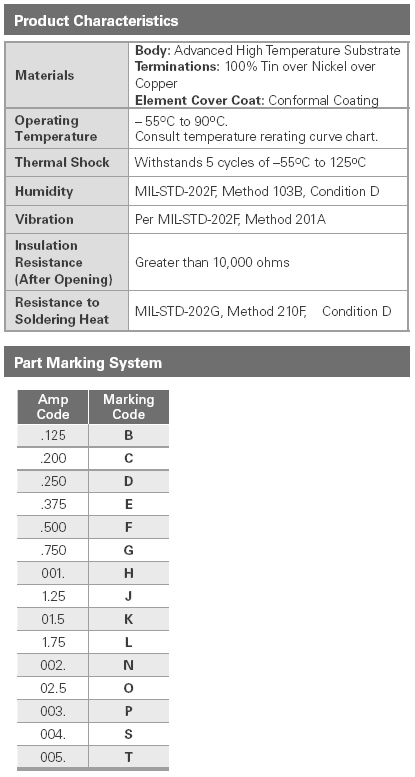

●Product is marked on top surface with code to allow amperage rating identification without testing
●Low profile for height sensitive applications
●Flat top surface for pickand-place operations
●Element-covering material is resistant to industry standard cleaning operations
●Mounting pad and electrical performance are identical to Littelfuse 429 and 433 Series products
●Alloy-based element construction provides superior inrush withstand characteristics (I2t) over ceramic or glass-based 1206 chip fuse products
Applications
Secondary protection for space constrained applications:
●Cell phones
●Battery packs
●Digital cameras
●DVD players
●Hard disk drives
