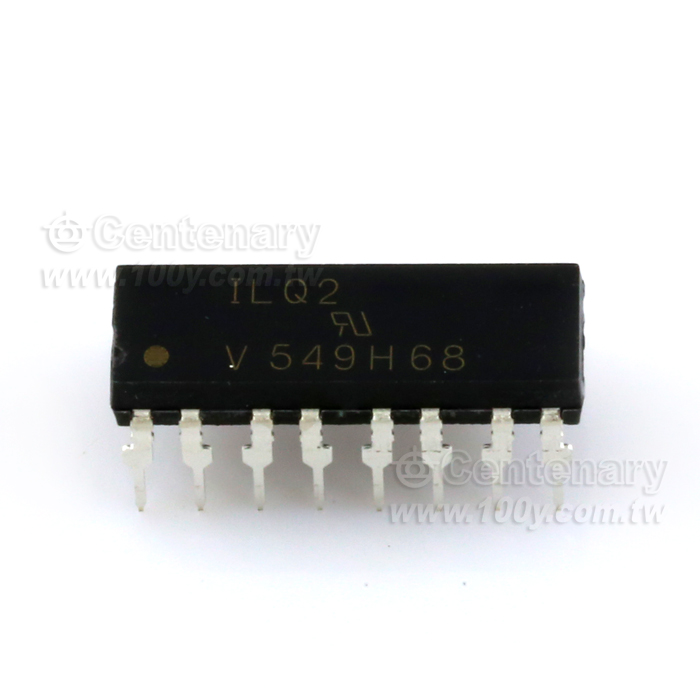

16P/DIP (ROHS)
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 0 |  | | ||
| 光復門市 | 146 | 170-2-06-Q | | 170-F-19-F | |
- 特性
VISHAY-ILD1, ILD2, ILD5, ILQ1, ILQ2, ILQ5
DESCRIPTION
The ILD1, ILD2, ILD5, ILQ1, ILQ2, ILQ5 are optically coupled isolated pairs employing GaAs infrared LEDs and silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the drive while maintaining a high degree of electrical isolation between input and output.
The ILD1, ILD2, ILD5, ILQ1, ILQ2, ILQ5 are especially designed for driving medium-speed logic and can be used to eliminate troublesome ground loop and noise problems. Also these couplers can be used to replace relays and transformers in many digital interface applications such as CTR modulation.
The ILD1, ILD2, ILD5 has two isolated channels in a single DIP package and the ILQ1, ILQ2, ILQ5 has four isolated channels per package.
FEATURES
●Current transfer ratio at IF = 10 mA
●Isolation test voltage, 5300 VRMS
●Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC
AGENCY APPROVALS
●UL1577, file no. E52744 system code H, double protection
●CSA 93751
●BSI IEC 60950; IEC 60065
●DIN EN 60747-5-2 (VDE 0884) available with option 1
●FIMKO
