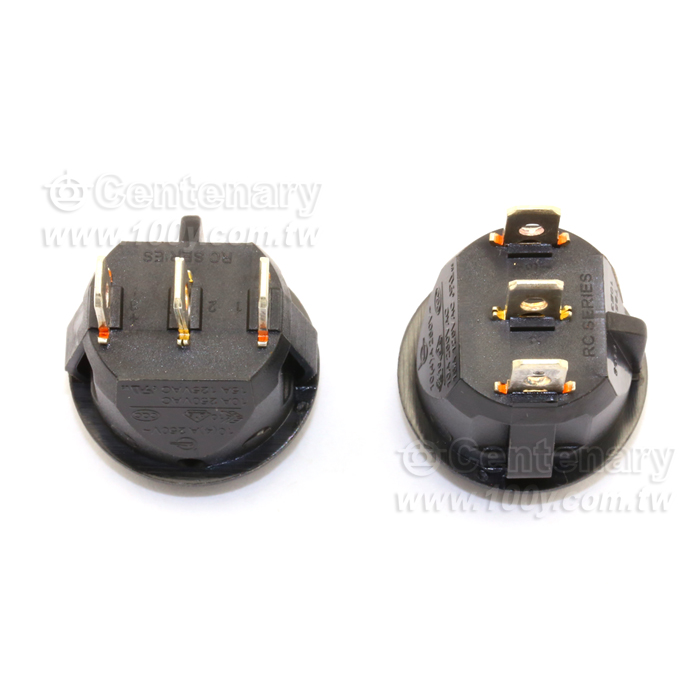

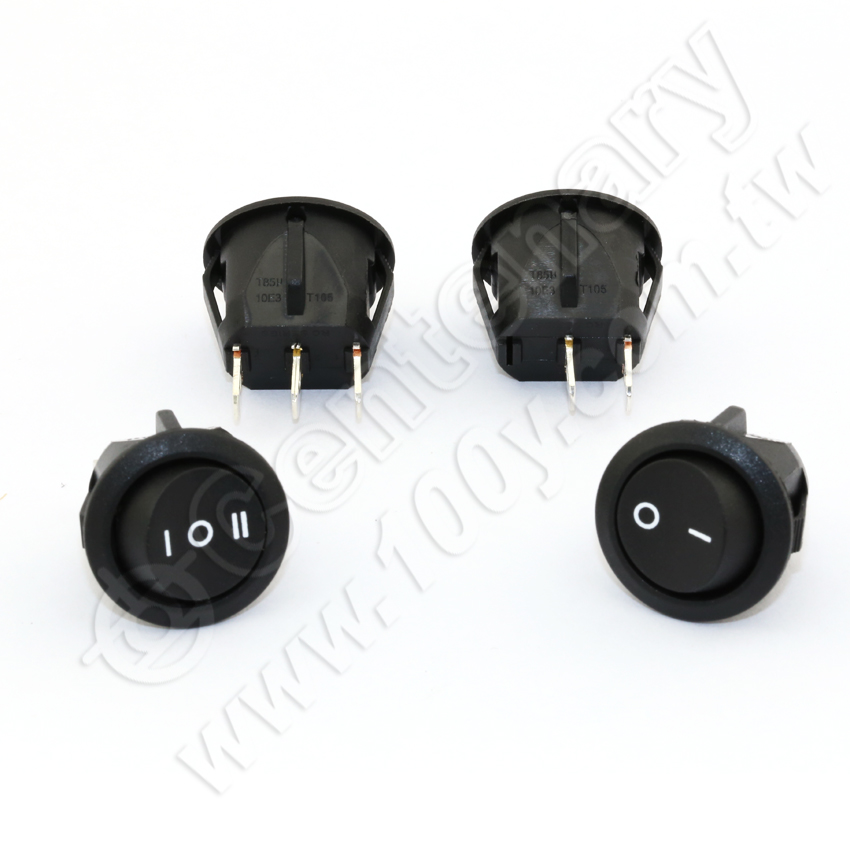

不帶燈-黑按鈕/黑底3P(RoHS)
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 100 | 167-2-09 |  | 167-2-36A | |
| 光復門市 | 272 | 168-1-32-F | | 168-1-32A | |
- 特性
RC系列開關-RC35KKBT00B
SPECIFICATION
●Electrical Rating :
2A 250VAC/125VAC,
6A 250VAC/10A125VAC (UL)
10A 250VAC/15A 125VAC(UL)
10(4)A 250 VAC (VDE)
●Mechanical life: Over 30000 cycles
●Electrical life: Over 10000 cycles
●Contact resistance: <20mΩ
●Insulation resistance: >1000MΩ
●High voltage resistance: >1500VAC 1 min.
●Ambient temperature:
Terminal side -20 to +85℃
Actuating side- 20 to +55℃
●Atmospheric humidity: Max.85%
●Actuating force: 3 to 6N(depends on different switch function)
●Flammability: UL94V-2 & UL94V-0
●Storage temperature: -30 to +80℃ Max
●Temperature rise at the terminal: 30℃ (UL1054)
●Solder ability of terminal: Max 350℃ 3s
MATERIALS
●Housing: PA 66
●Rocker: PA 66 & PC
●Contacts: Silver alloy
●Terminal: Copper or brass silver plated
●Spring: SWC
●Movable arm: Copper silver plated

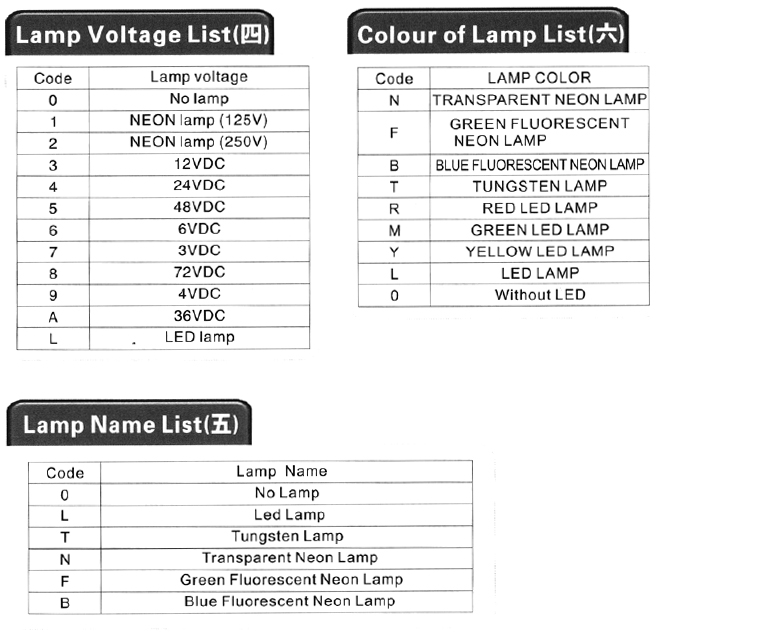

●Lamp: Neon lamp, Tungsten lamp, LED
●Bracket: PA66
