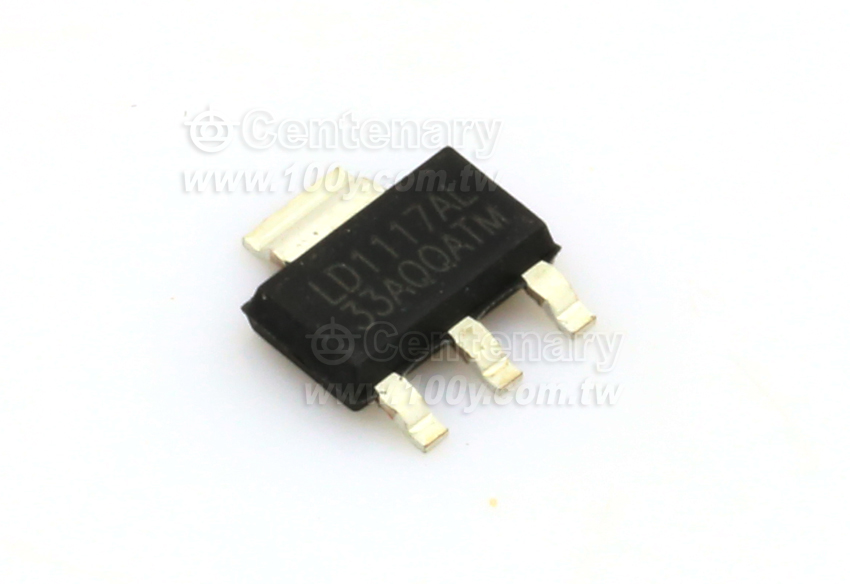

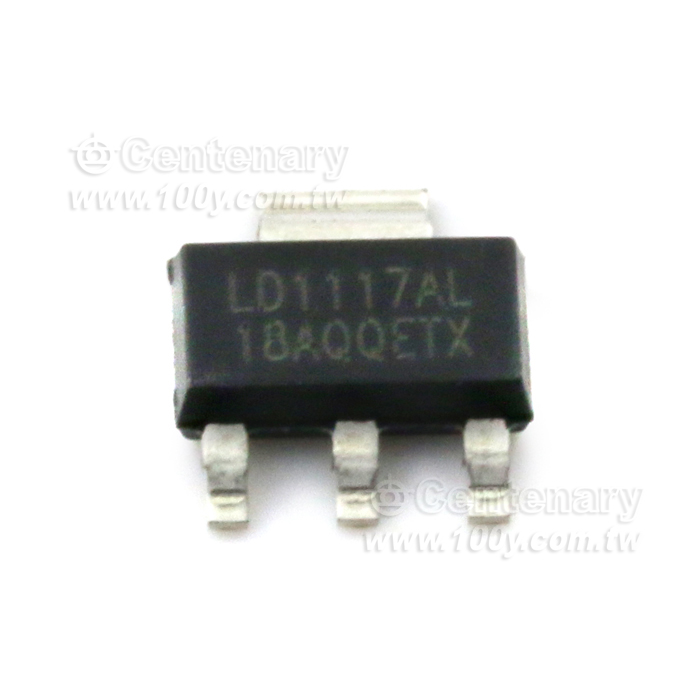

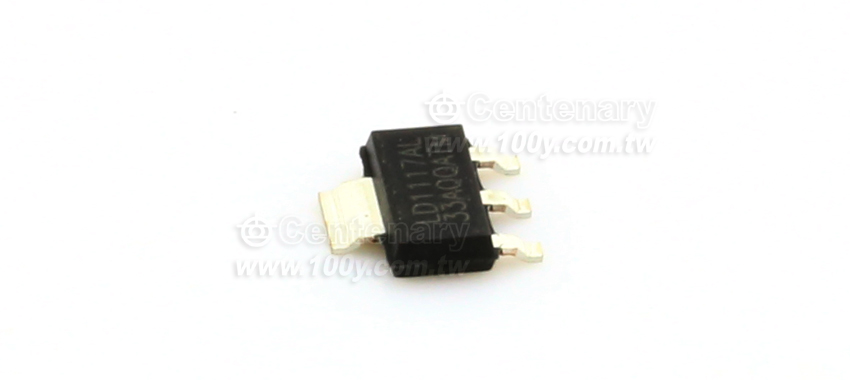

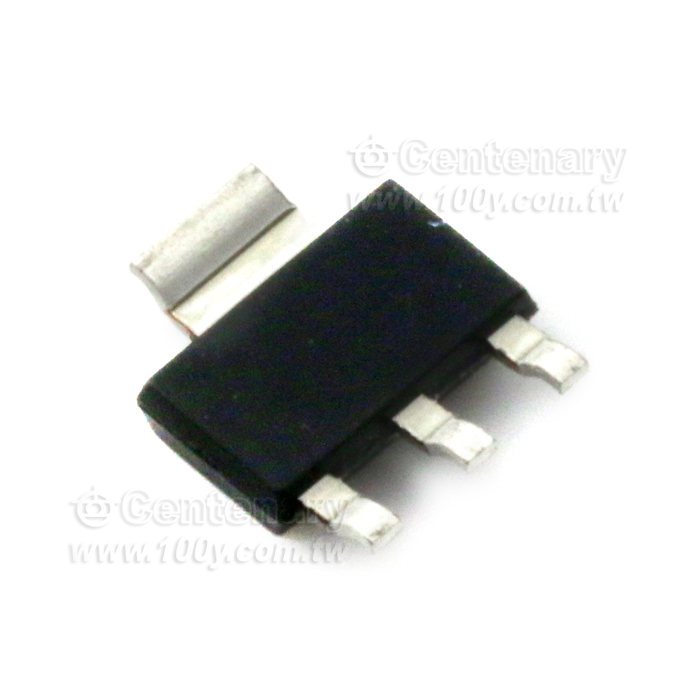

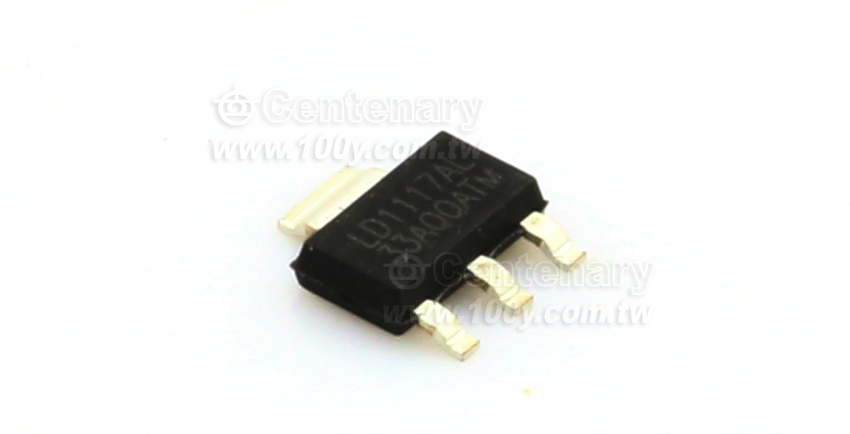

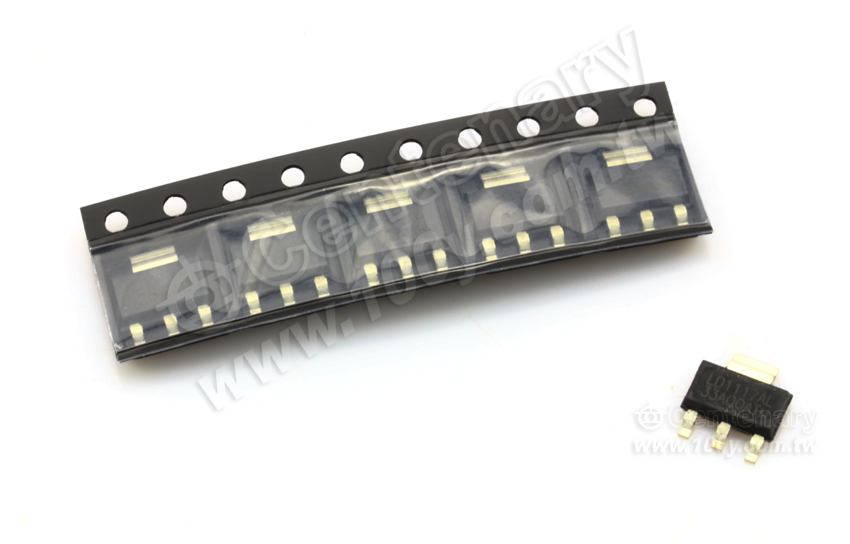

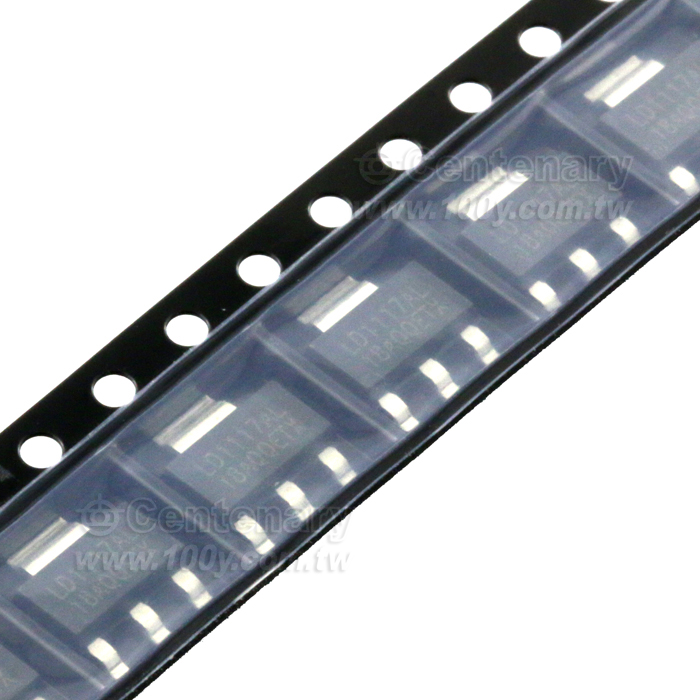

3P/SOT-223 (ROHS) 1.8V/1A
NT$56
Part No：
53817
Product No：
LD1117AL-18-AA3-A-R
品牌：
UTC
說明：
技術文件：
包裝單位：
10 個
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 0 |  | | ||
| 光復門市 | 856 | 170-2-06-K | | 170-F-07-B | |
產品特性
- 特性
UTC-LD1117A
DESCRIPTION
The UTC LD1117/A is a low dropout, 3-terminal positive voltage regulator designed to provide output current up to 800mA/1A, There are adjustable version (VREF=1.25V) and various fixed versions.
FEATURES
●Low Dropout Voltage

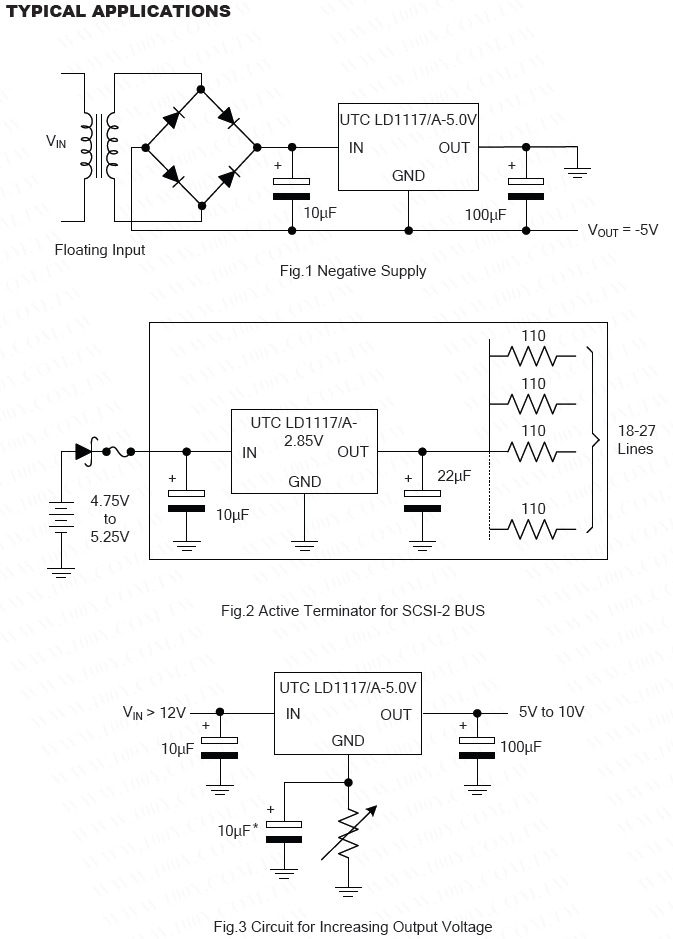

●Suitable for SCSI-2 Active Termination if VOUT set to 2.85V
●Output Current up to 0.8A for 1117 and 1.0A for 1117A
●Built-in Current Limit and Over Temperature Protection
●Available in ±1%(at 25°C) and 2% in all Temperature Range
●Low Current Consumption

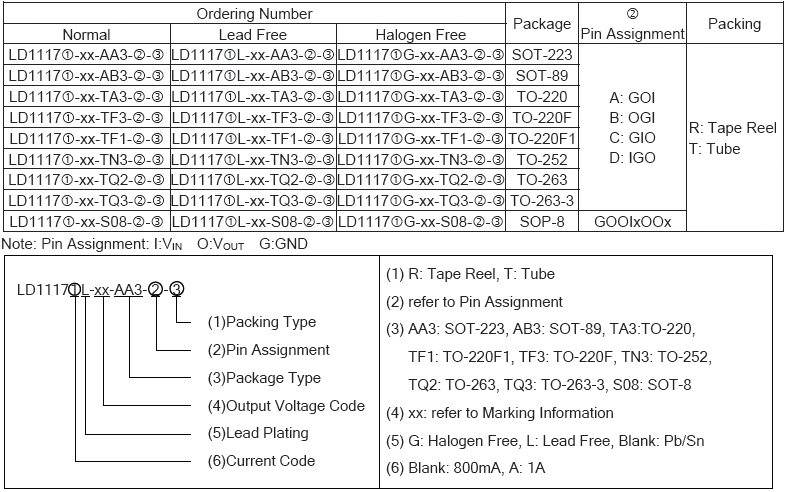

INFORMATION

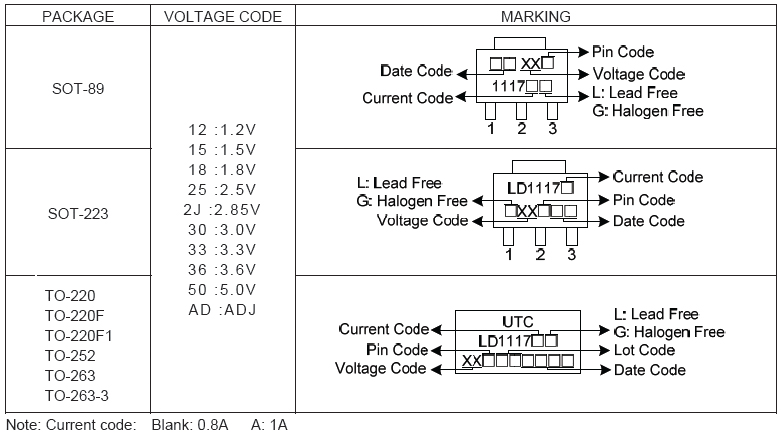

MARKING INFORMATION

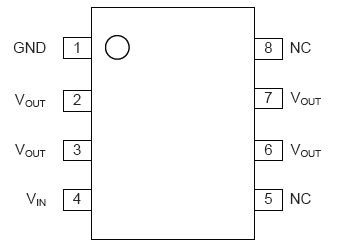

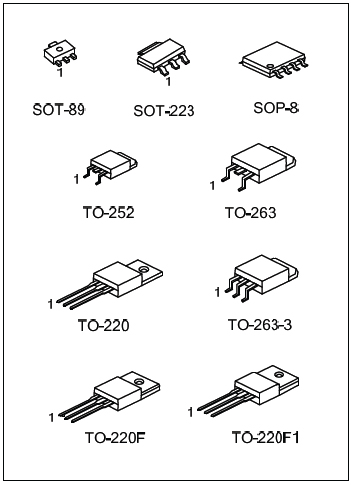

PIN CONFIGURATION of SOP-8

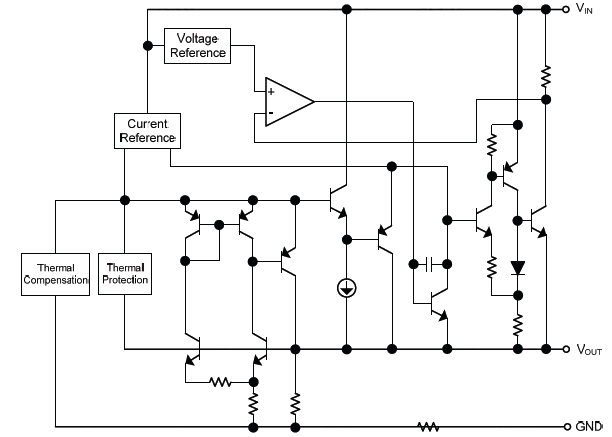

BLOCK DIAGRAM
