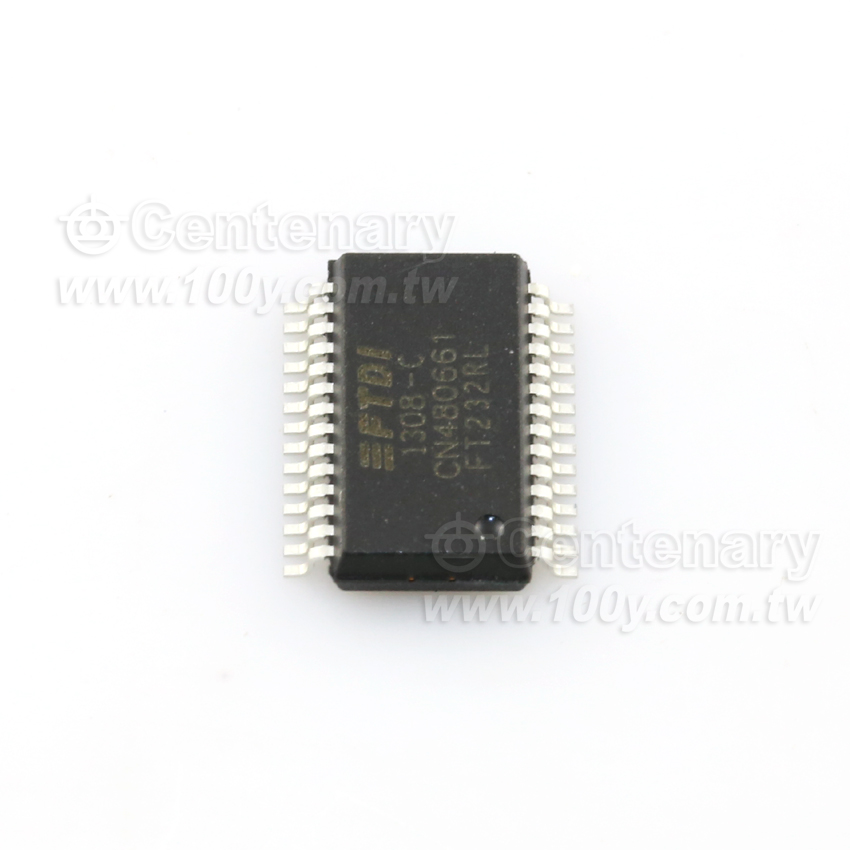

28P/SSOP (ROHS) USB UART IC

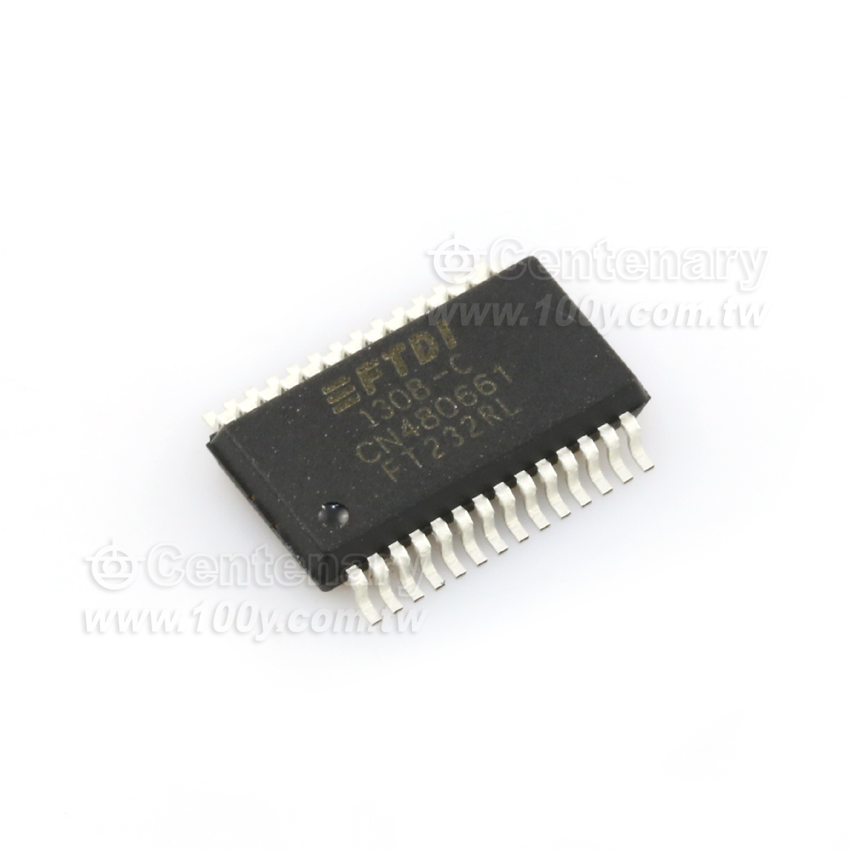

FTDI- FT232RL-USB UART IC




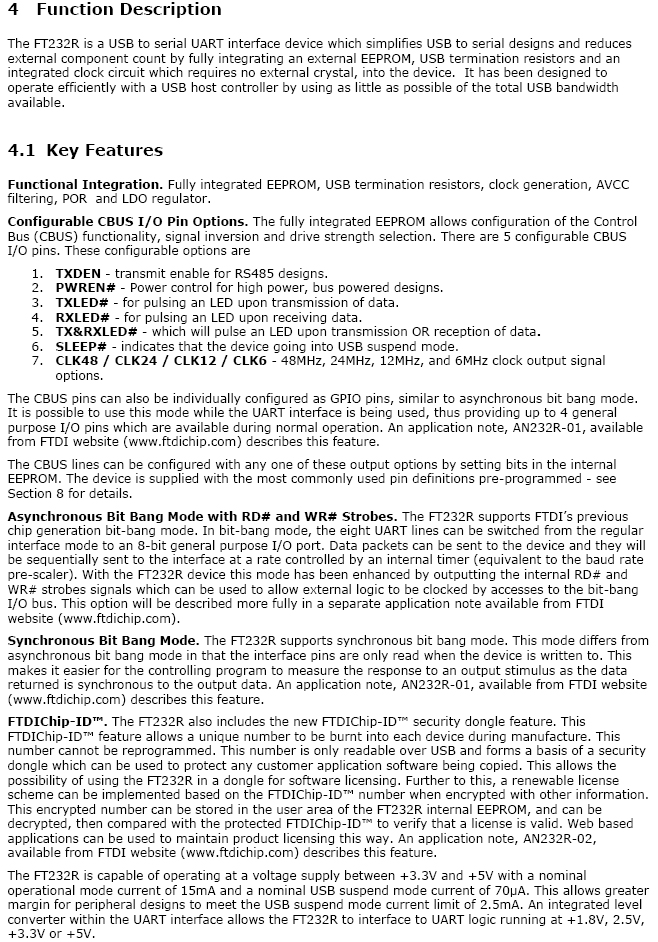

Features



The FT232R is a USB to serial UART interface with the following advanced features:
●Single chip USB to asynchronous serial data transfer interface.
●Entire USB protocol handled on the chip. No USB specific firmware programming required.
●Fully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration.
●Fully integrated USB termination resistors.
●Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
●Data transfer rates from 300 baud to 3 Mbaud (RS422, RS485, RS232 ) at TTL levels.
●128 byte receive buffer and 256 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
●FTDI?s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
●Unique USB FTDIChip-ID™ feature.

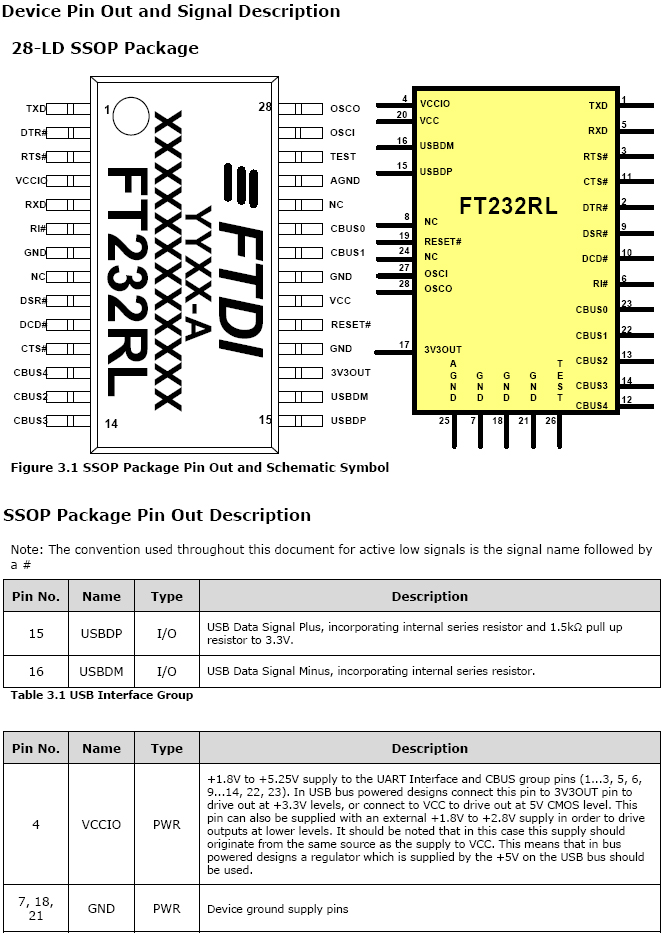

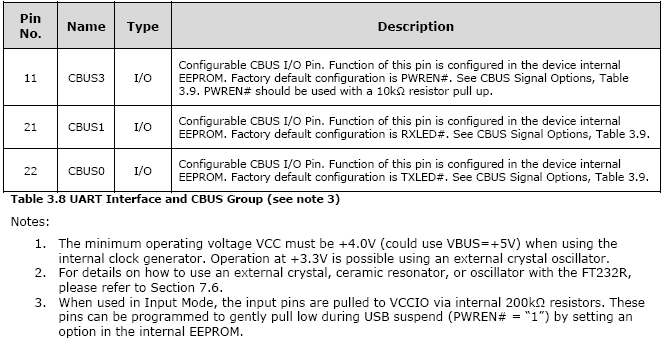

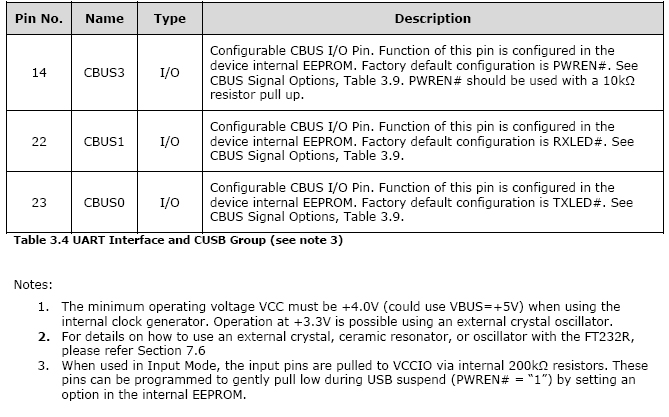

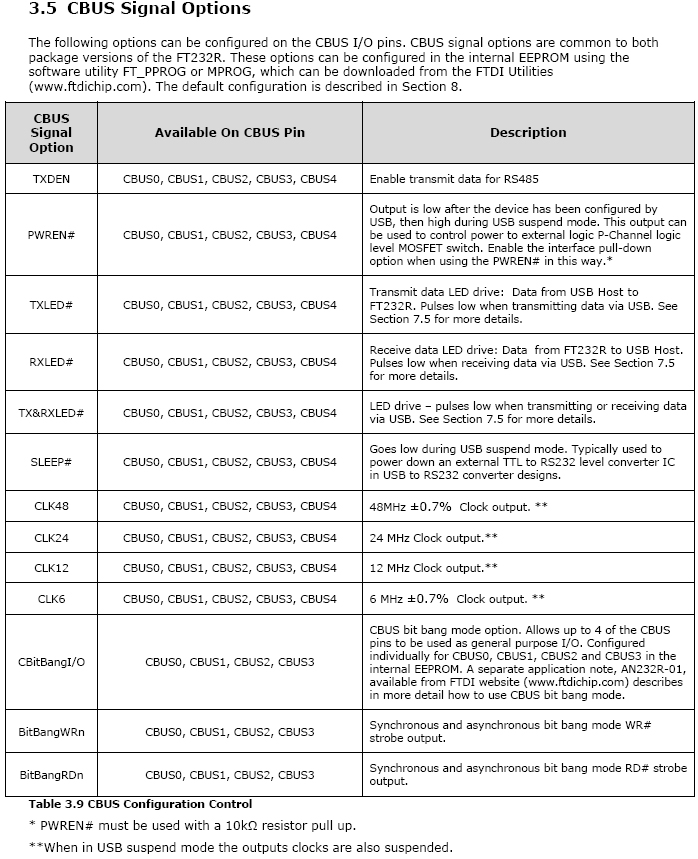

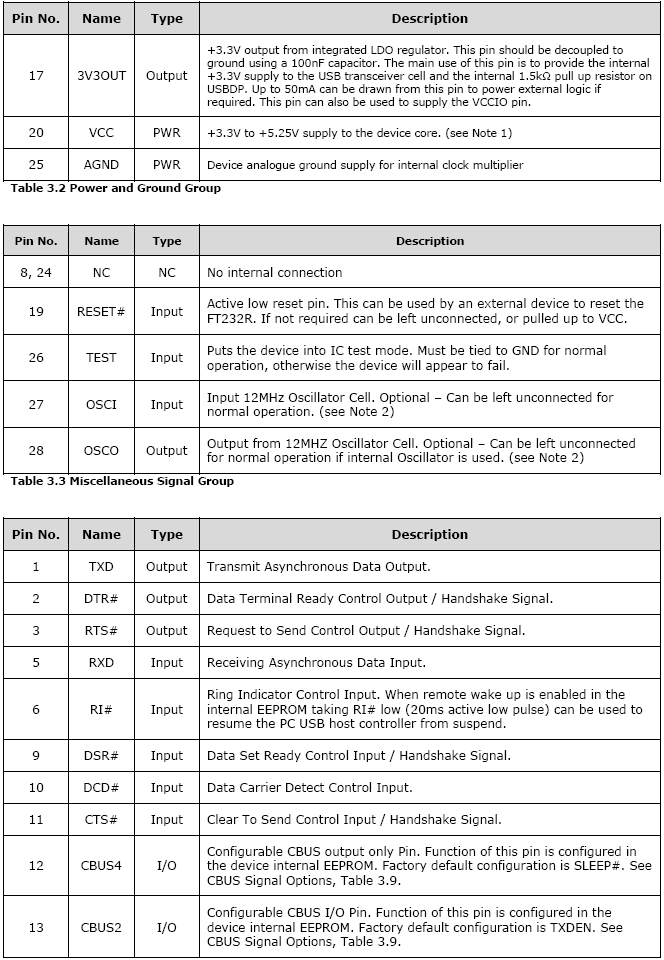

●Configurable CBUS I/O pins.

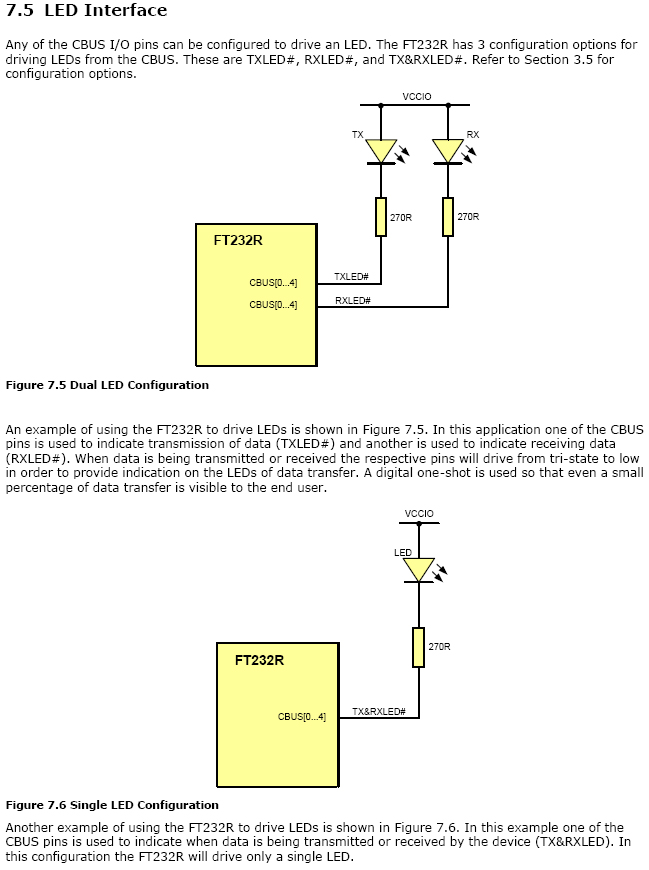

●Transmit and receive LED drive signals.
●UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
●FIFO receive and transmit buffers for high data throughput.
●Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
●Device supplied pre-programmed with unique USB serial number.

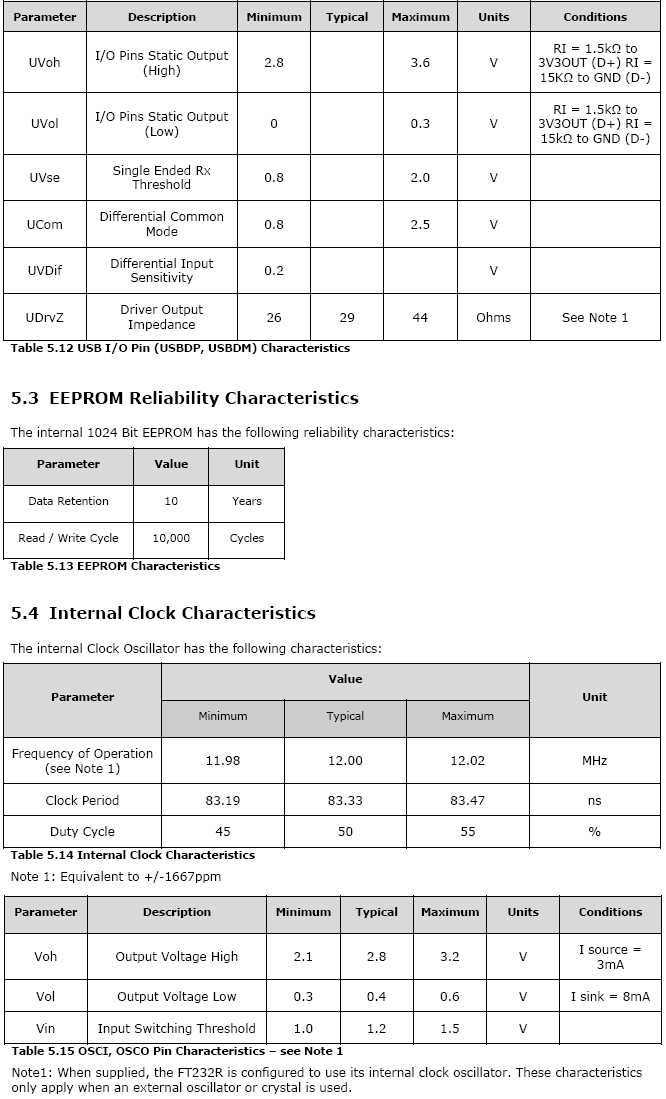

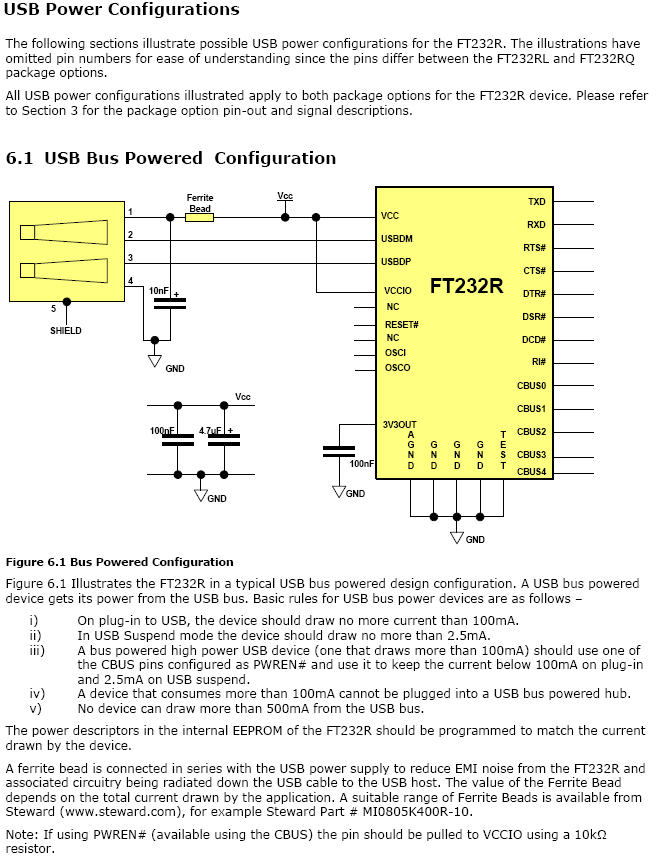

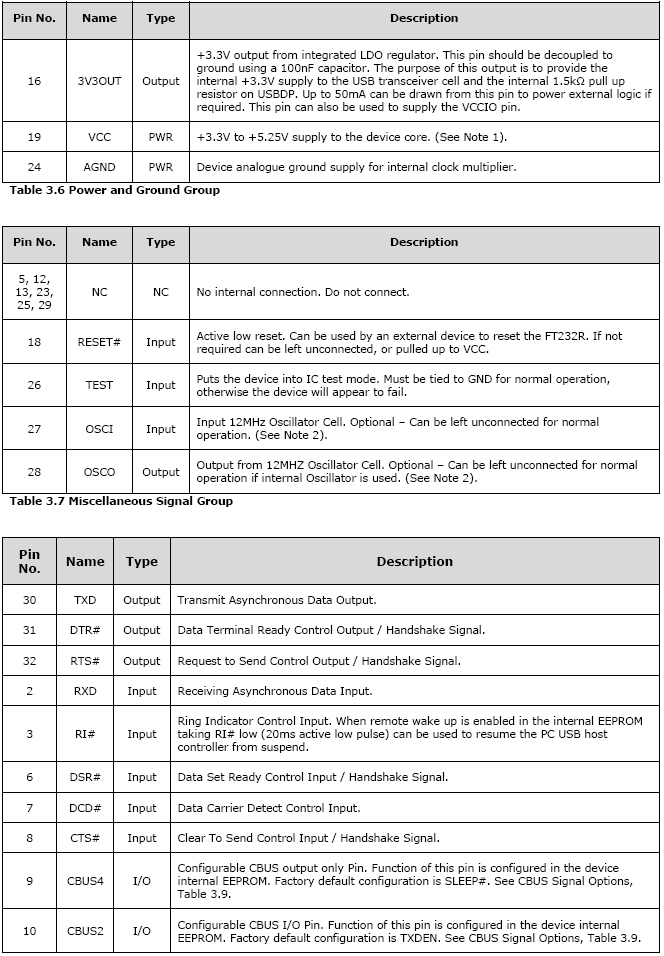

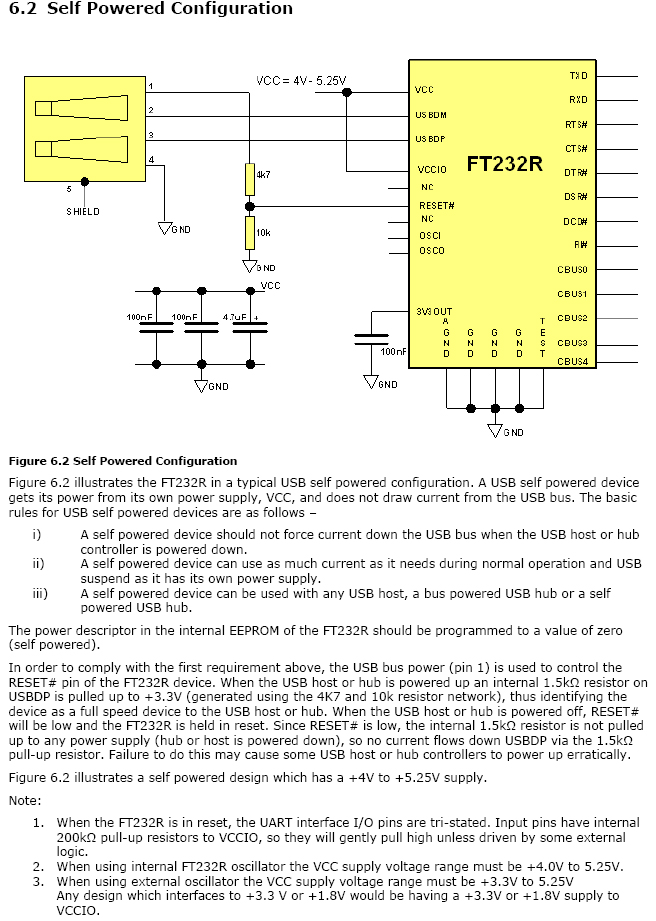

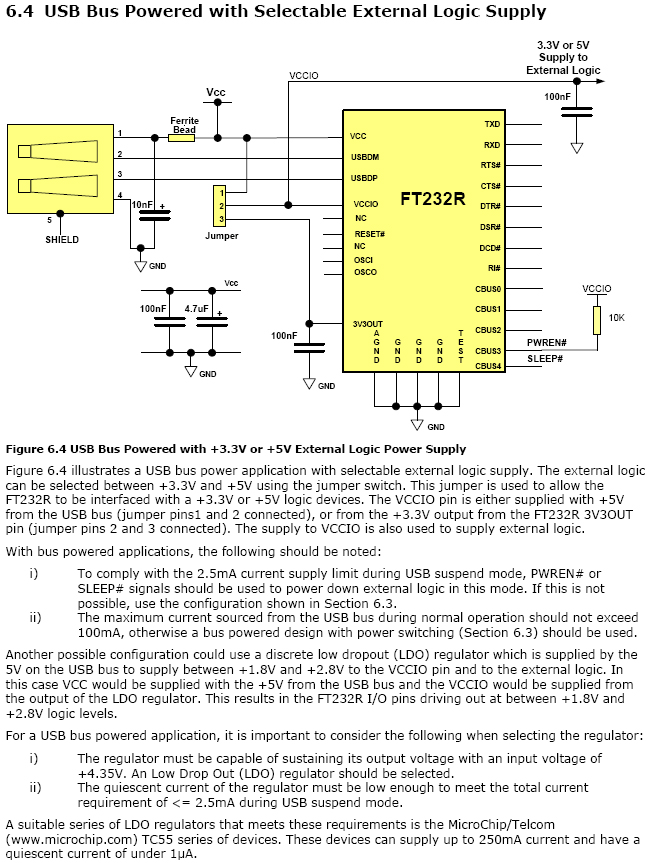

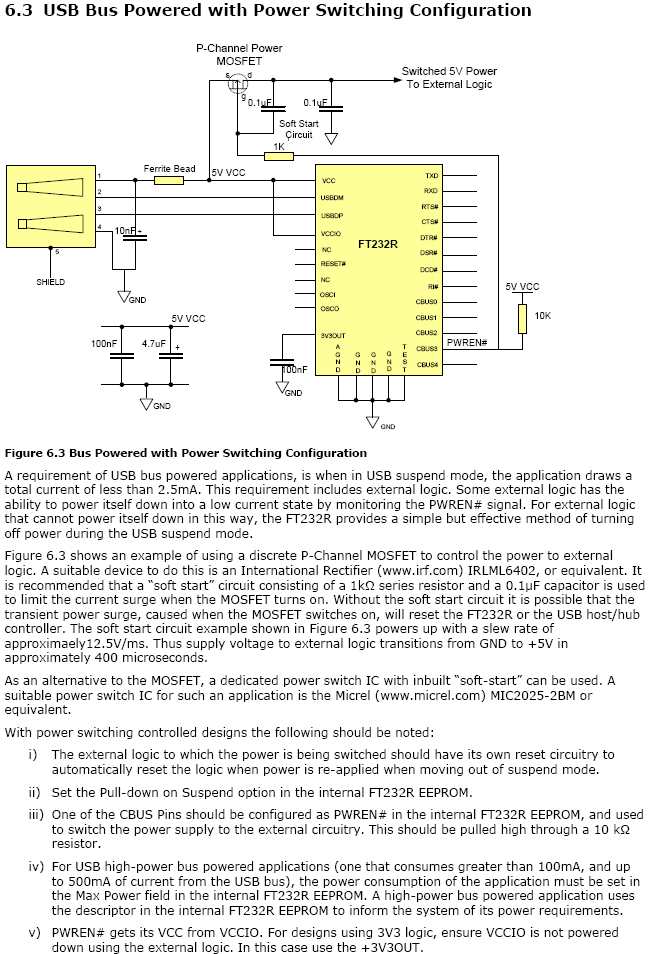

●Supports bus powered, self powered and high-power bus powered USB configurations.

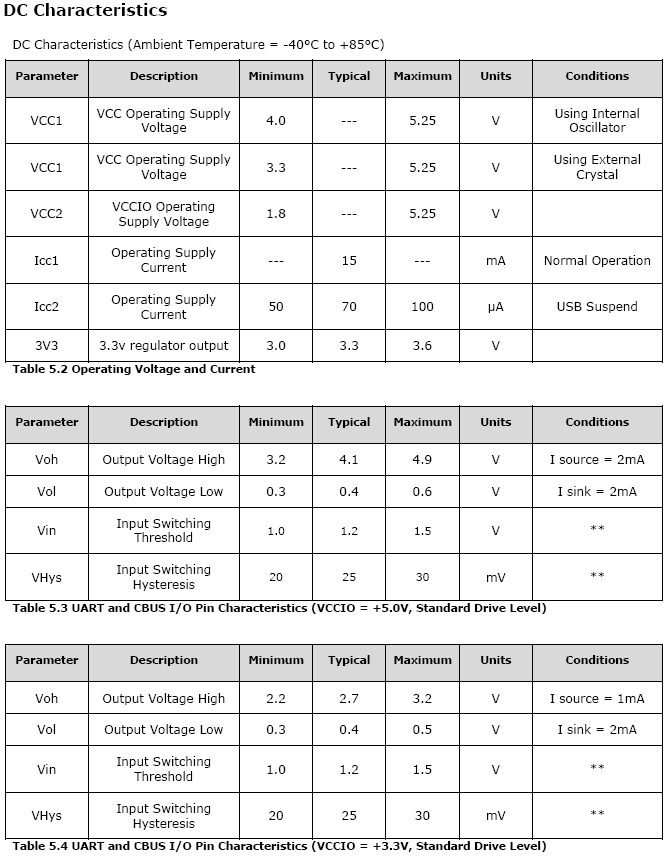

●Integrated +3.3V level converter for USB I/O.

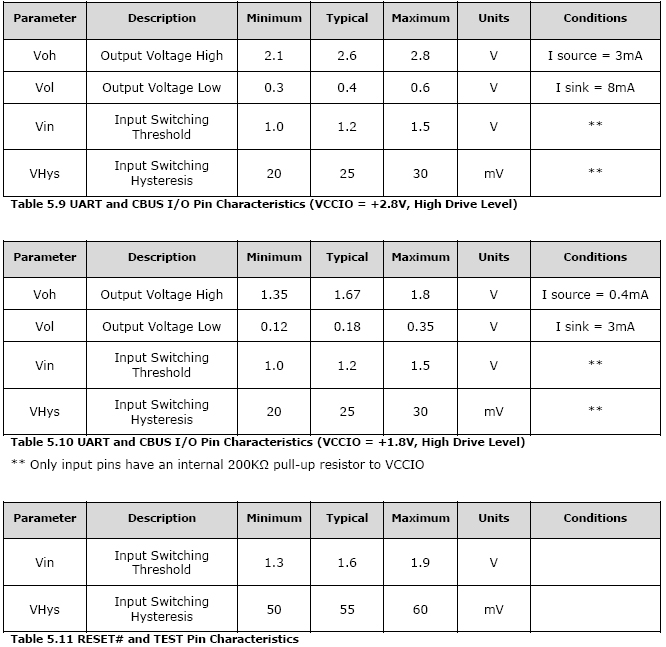

●Integrated level converter on UART and CBUS for interfacing to between +1.8V and +5V logic.

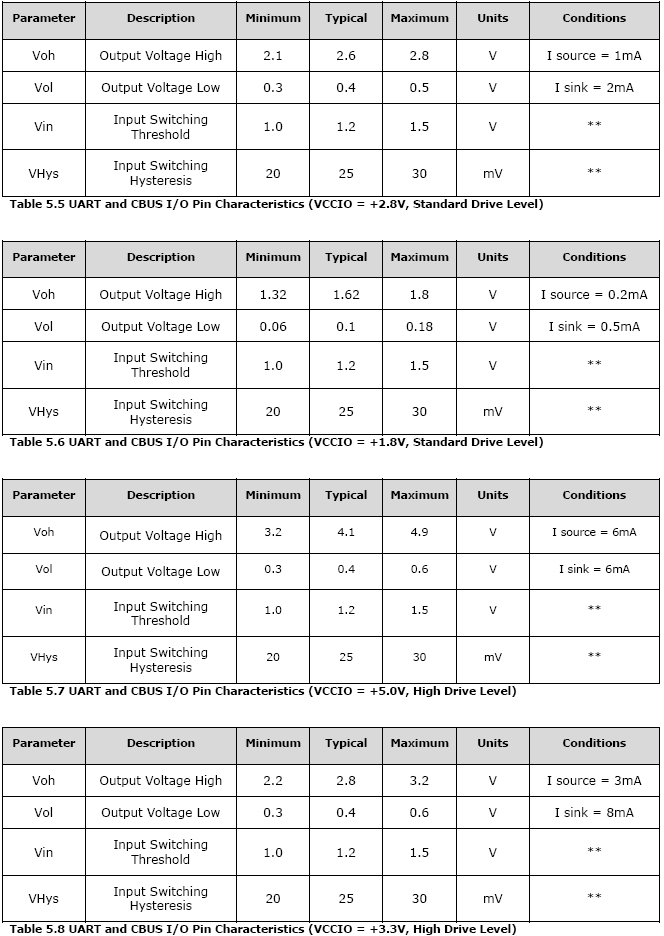

●True 5V/3.3V/2.8V/1.8V CMOS drive output and TTL input.
●Configurable I/O pin output drive strength.
●Integrated power-on-reset circuit.
●Fully integrated AVCC supply filtering - no external filtering required.
●UART signal inversion option.
●+3.3V (using external oscillator) to +5.25V (internal oscillator) Single Supply Operation.
●Low operating and USB suspend current.
●Low USB bandwidth consumption.
●UHCI/OHCI/EHCI host controller compatible.
●USB 2.0 Full Speed compatible.

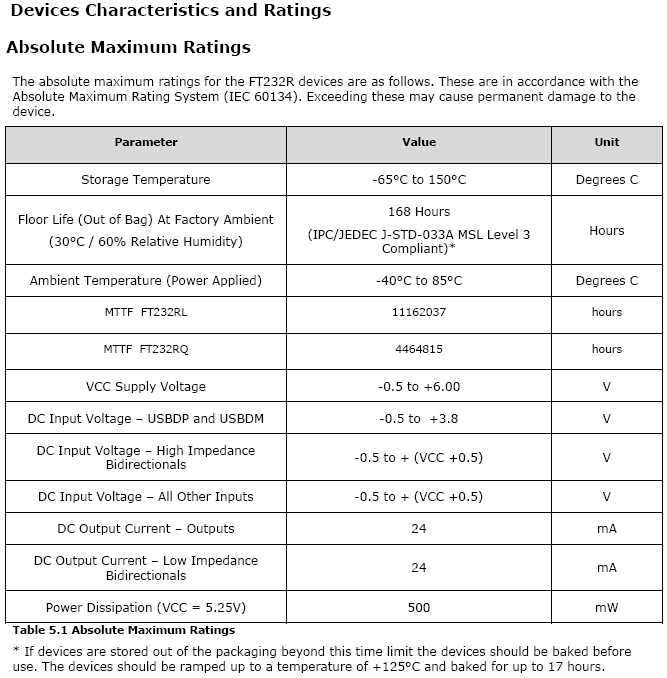

●-40°C to 85°C extended operating temperature range.

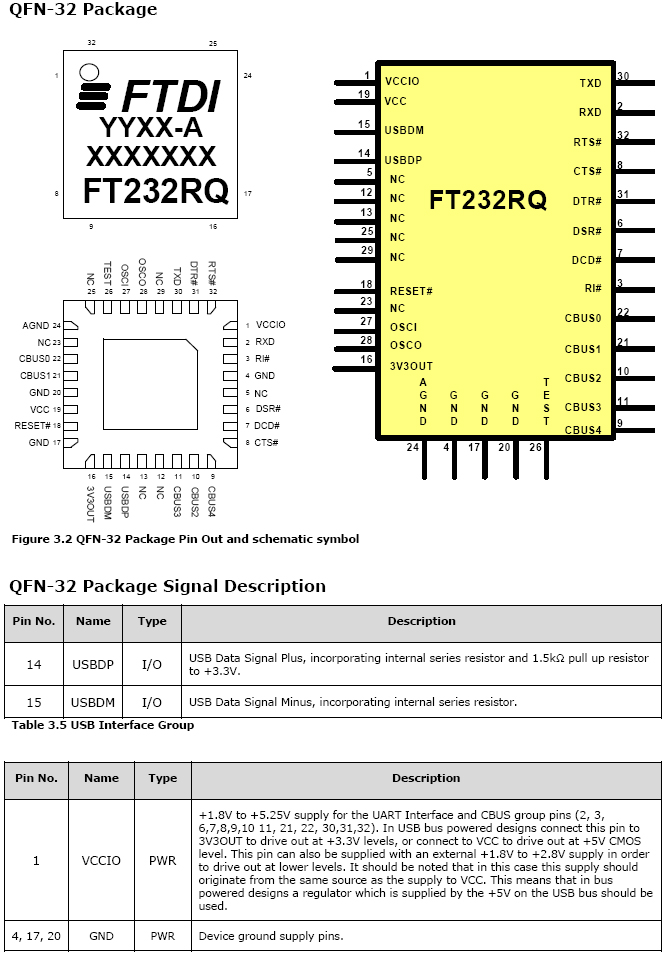

●Available in compact Pb-free 28 Pin SSOP and QFN-32 packages (both RoHS compliant).




Typical Applications

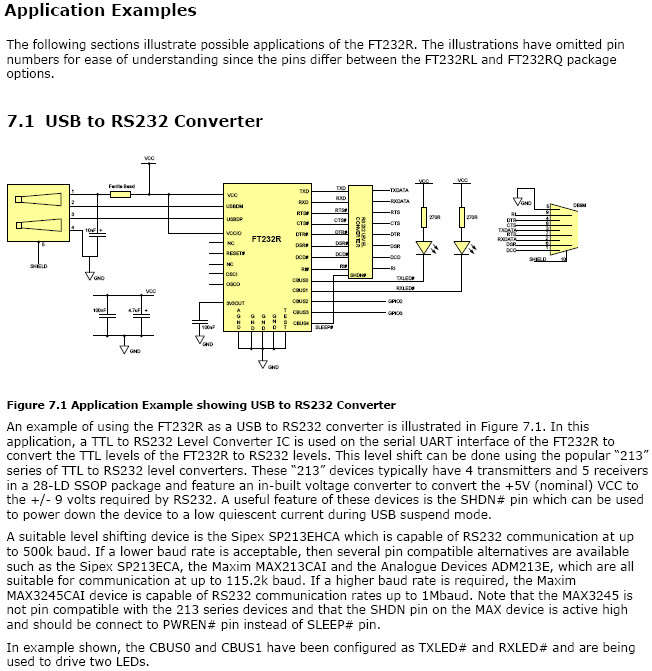

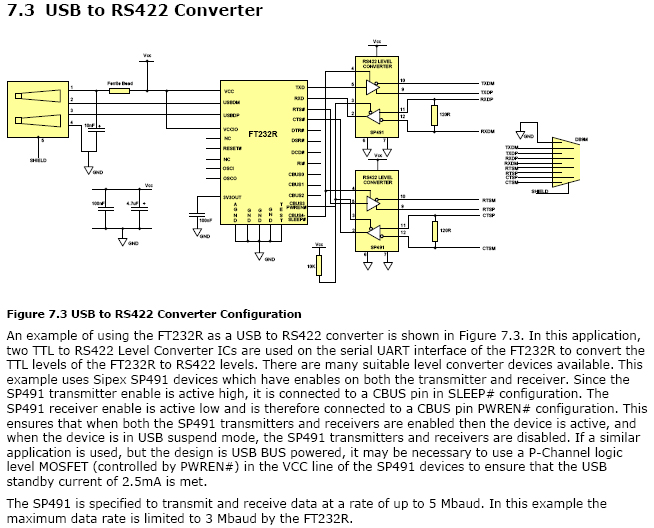

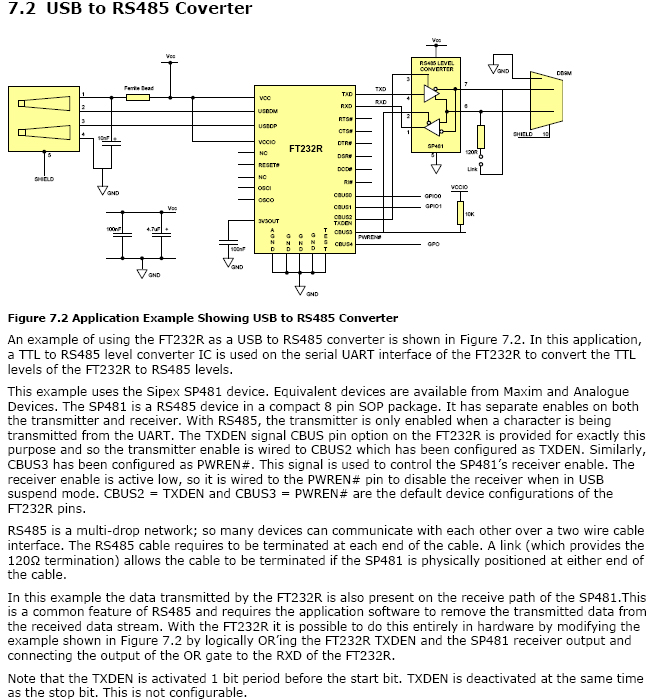

●USB to RS232/RS422/RS485 Converters
●Upgrading Legacy Peripherals to USB
●Cellular and Cordless Phone USB data transfer cables and interfaces

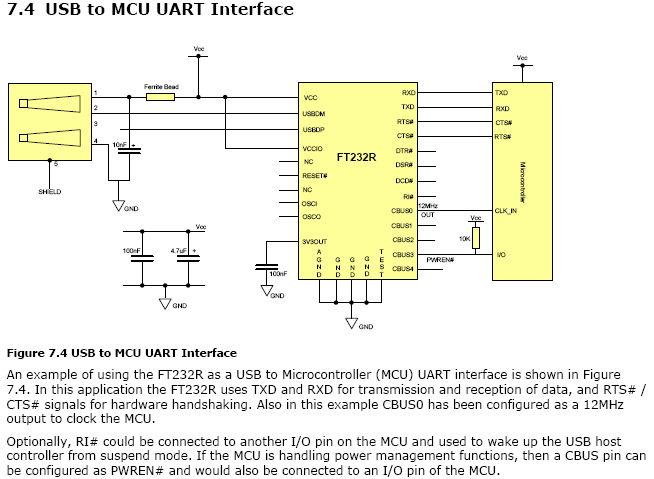

●Interfacing MCU/PLD/FPGA based designs to USB
●USB Audio and Low Bandwidth Video data transfer
●PDA to USB data transfer
●USB Smart Card Readers
●USB Instrumentation
●USB Industrial Control
●USB MP3 Player Interface
●USB FLASH Card Reader and Writers
●Set Top Box PC - USB interface
●USB Digital Camera Interface
●USB Hardware Modems
●USB Wireless Modems
●USB Bar Code Readers
●USB Software and Hardware Encryption Dongles




Royalty free VIRTUAL COM PORT (VCP) DRIVERS for...



●Windows 98, 98SE, ME, 2000, Server 2003, XP and Server 2008
●Windows 7 32,64-bit
●Windows XP and XP 64-bit
●Windows Vista and Vista 64-bit
●Windows XP Embedded
●Windows CE 4.2, 5.0 and 6.0
●Mac OS 8/9, OS-X
●Linux 2.4 and greater




Royalty free D2XX Direct Drivers (USB Drivers + DLL S/W Interface)



●Windows 98, 98SE, ME, 2000, Server 2003, XP and Server 2008
●Windows 7 32,64-bit
●Windows XP and XP 64-bit
●Windows Vista and Vista 64-bit
●Windows XP Embedded
●Windows CE 4.2, 5.0 and 6.0
●Linux 2.4 and greater

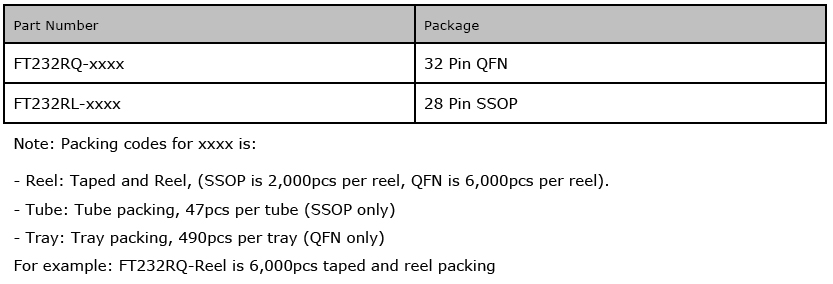

Part Numbers






USB Compliant



The FT232R is fully compliant with the USB 2.0 specification and has been given the USB-IF Test-ID (TID) 40680004 (Rev B) and 40770018 (Rev C).

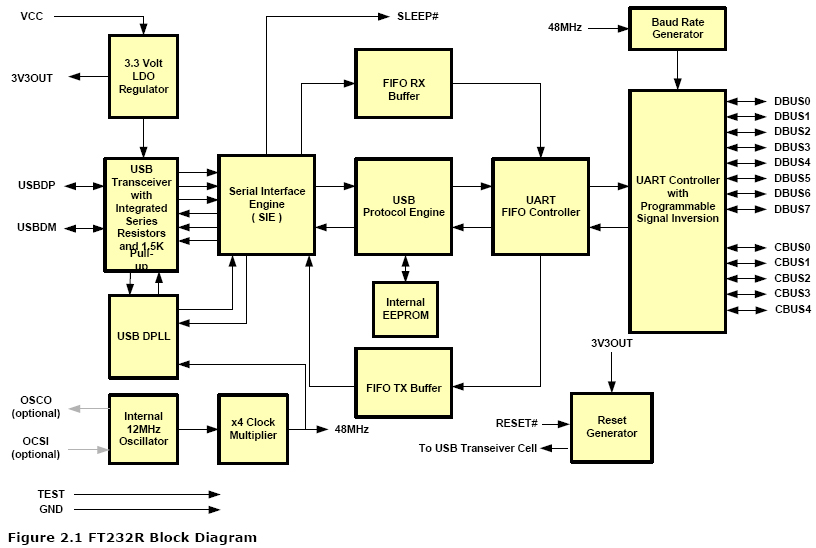

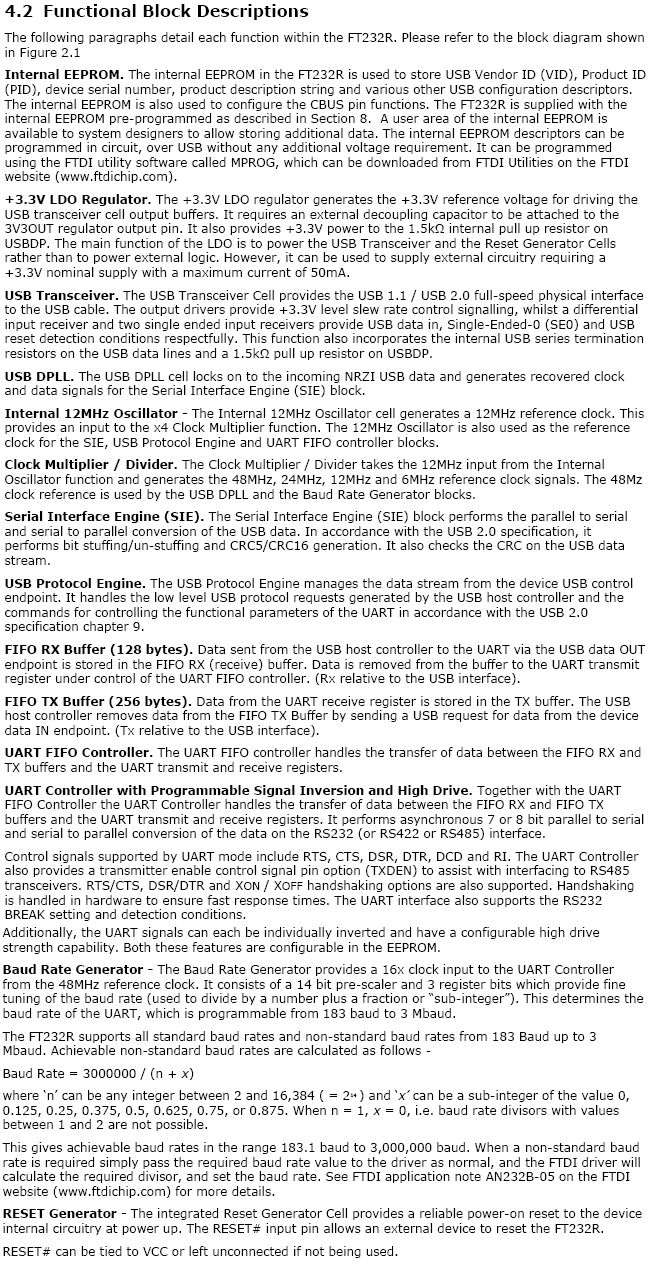

FT232R Block Diagram
