30A/600VAC Fuse 10x38mm
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 0 | 167-2-20 |  | | |
| 光復門市 | 0 | 170-2-39-C | | |
- 特性

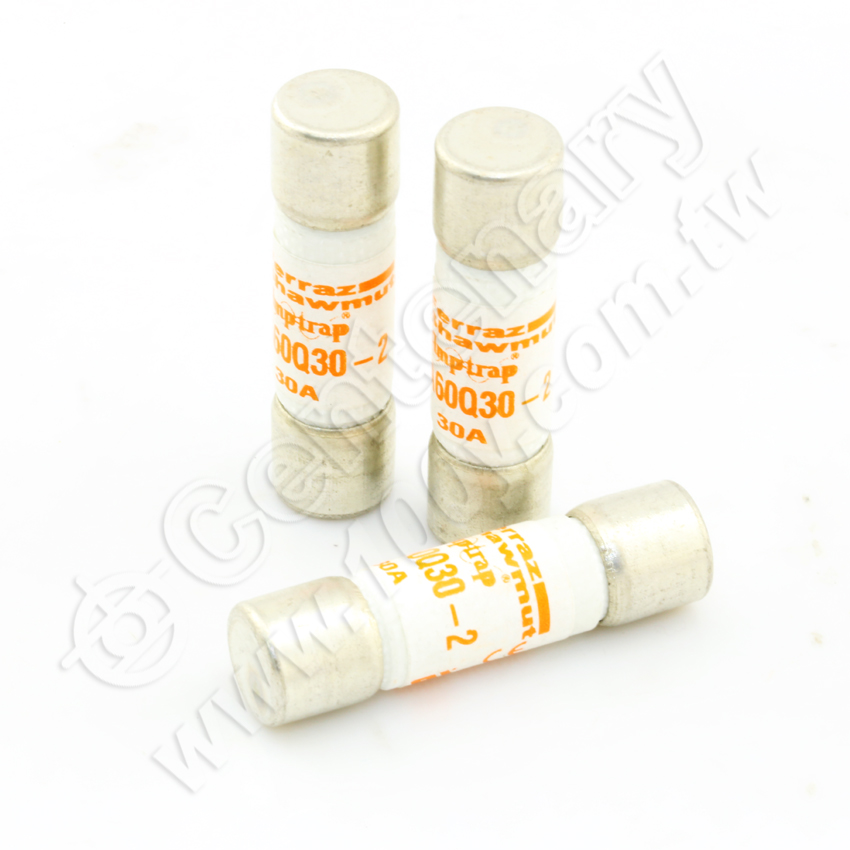

Ferraz Shawmut- A60Q
Description
A60Q Amp-trap® Form 101 Semiconductor Protection fuses feature the only 600 volt AC/DC rating in the industry of similar size (1-1/2” x 13/32”) fuses protecting semiconductors. A60Q also has the lowest l2t of all similar fuses and excellent cycling ability. Applications include inverters and small equipment requiring extremely fast response to faults, without the need to carry sustained heavy overloads.
Features/Benefits
●Lowest l2t of any fuse this size for greater protection
●Excellent cycling ability gives advantage in equipment design
●600V AC/DC rated

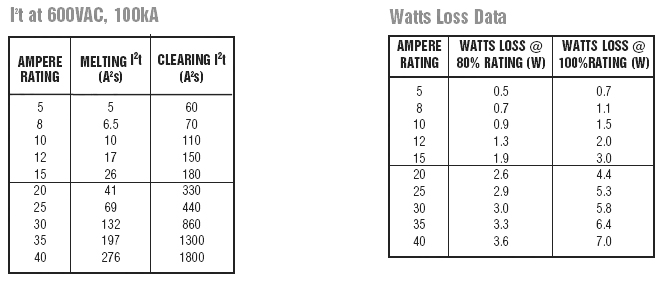

Ratings
AC: 5-40A 600VAC, 200kA I.R.
DC: 5-40A 600VDC, 100kA I.R. L/R = 10ms
Approvals
●UL Recognized Component
●AC: UL Guide JFHR2 File E60314
●DC: UL File E60314
HIGHLIGHTS
●600VAC/DC Rated
●Extremely Fast Acting
●Current Limiting
●Lowest l2t
●Excellent Cycling Ability
APPLICATIONS
●Protection of small inverters and drives, and equipment requiring the highest degree of protection
