8P/DIP (ROHS)

ATMEL- AT24C1024B




Features



●Low-voltage Operation
– 1.8V (VCC = 1.8V to 3.6V)
– 2.5V (VCC = 2.5V to 5.5V)
●Internally Organized 131,072 x 8
●Two-wire Serial Interface
●Schmitt Triggers, Filtered Inputs for Noise Suppression
●Bidirectional Data Transfer Protocol
●400 kHz (1.8V) and 1 MHz (5V, 2.5V) Clock Rate
●Write Protect Pin for Hardware and Software Data Protection
●256-byte Page Write Mode (Partial Page Writes Allowed)
●Random and Sequential Read Modes
●Self-timed Write Cycle (5 ms Typical)
●High Reliability
– Endurance: 1,000,000 Write Cycles/Page
– Data Retention: 40 Years

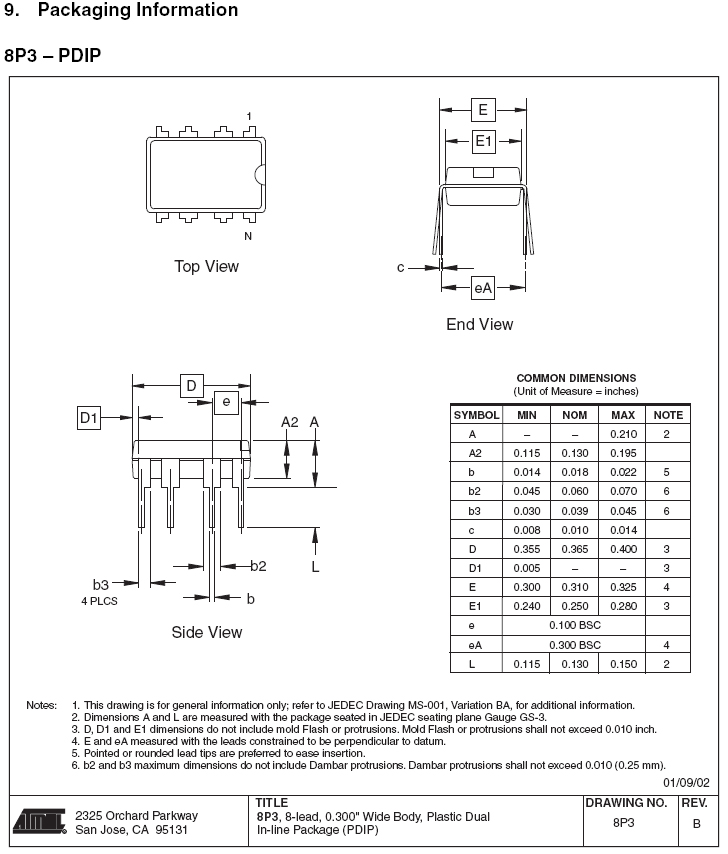

●8-lead PDIP, 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead TSSOP, 8-lead Ultra Thin Small Array (SAP), and 8-ball dBGA2 Packages
●Die Sales: Wafer Form, Tape and Reel and Bumped Die




Description



The AT24C1024B provides 1,048,576 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 131,072 words of 8 bits each. The device’s cascadable feature allows up to four devices to share a common two-wire bus. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The devices are available in space-saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead TSSOP, 8-ball dBGA2 and 8-lead Ultra Thin SAP packages. In addition, the entire family is available in 1.8V (1.8V to 3.6V) and 2.5V (2.5V to 5.5V) versions.
