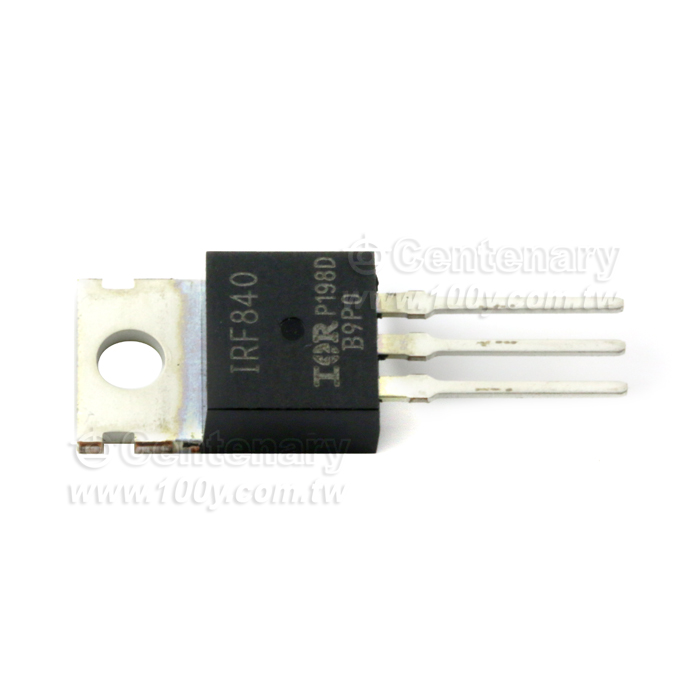

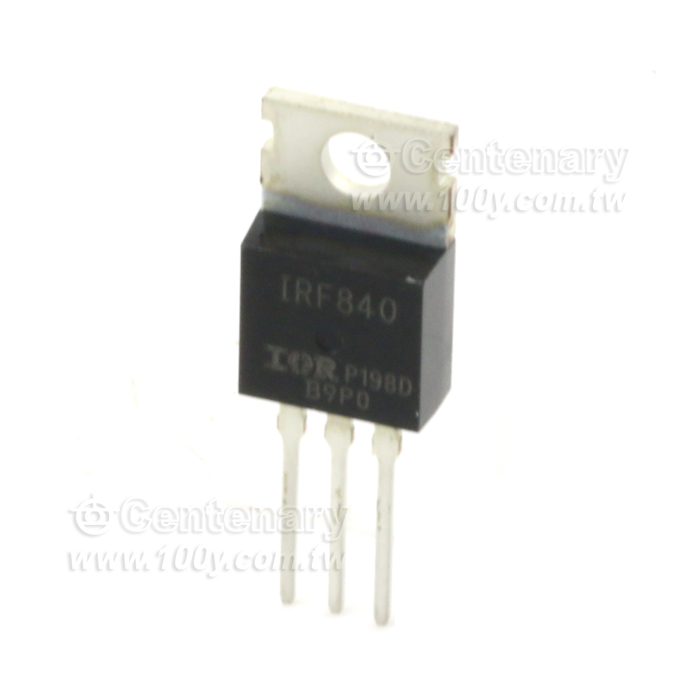

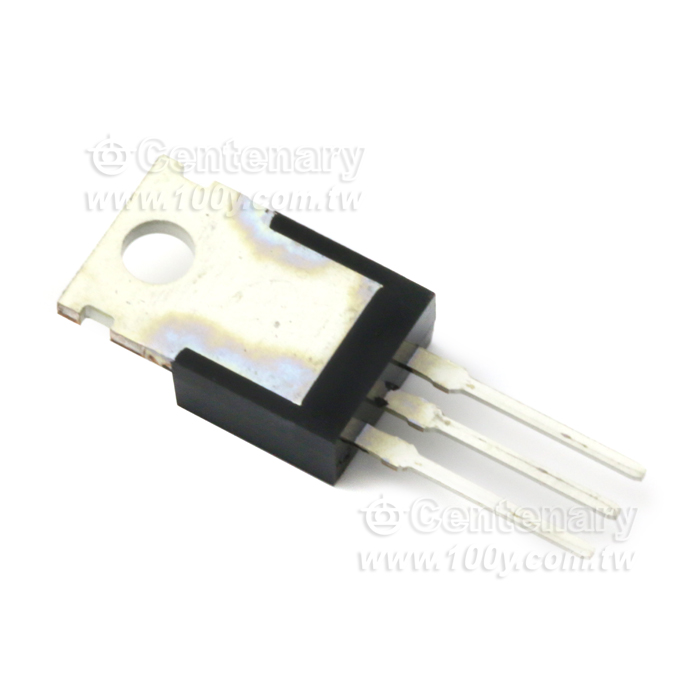

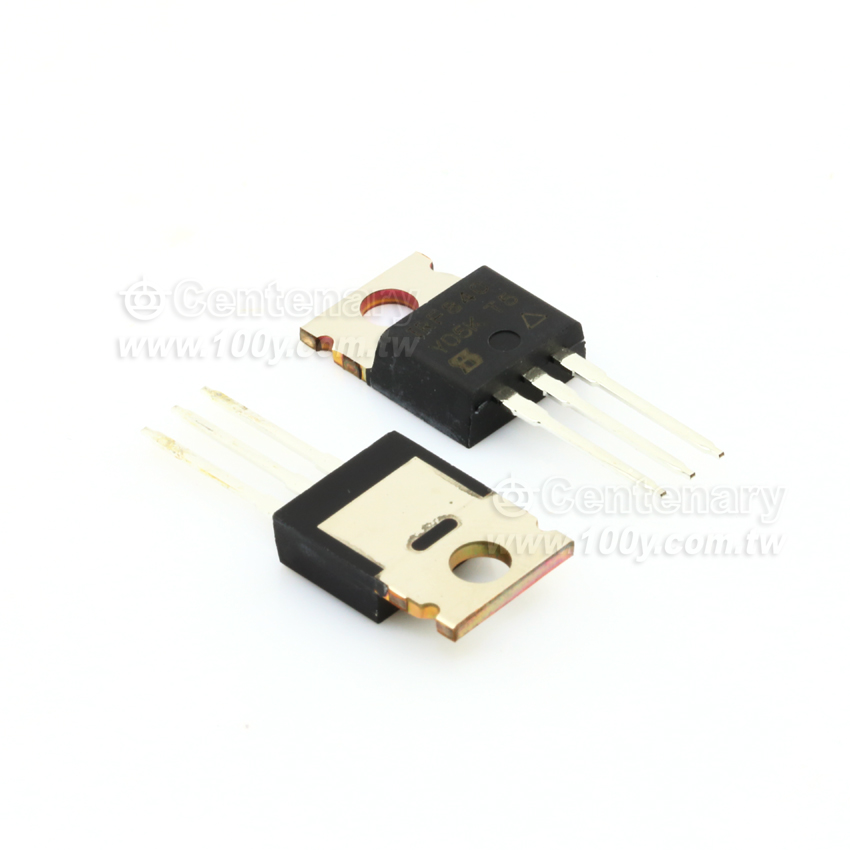

3P/TO-220AB (ROHS) N-Ch. 500V/8A
NT$85
Part No：
69971
Product No：
IRF840PBF
品牌：
VISHAY
說明：
技術文件：
包裝單位：
2 個
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 0 |  | | ||
| 光復門市 | 34 | 170-2-06-A | | 170-F-19-D | |
產品特性
- 特性

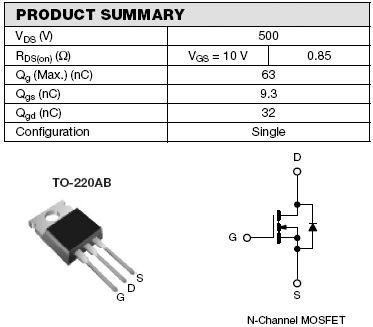

VISHAY IRF840,SiHF840
Power MOSFET
FEATURES
●Dynamic dV/dt Rating
●Repetitive Avalanche Rated
●Fast Switching
●Ease of Paralleling
●Simple Drive Requirements
●Compliant to RoHS Directive 2002/95/EC
DESCRIPTION
Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and
cost-effectiveness.

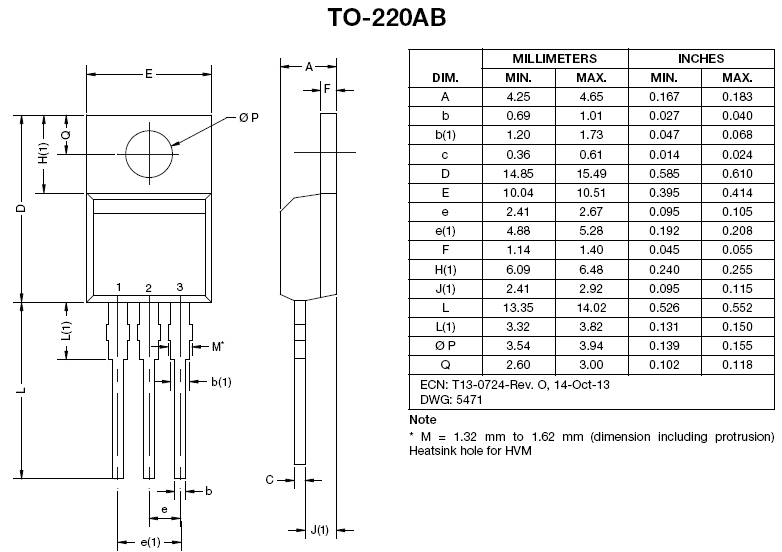

The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.
