9母+9母延長線1.8M

NT$72

Part No：

7455

Product No：

AS-DB-9(F/F)-28AWG-1.8M

品牌：

說明：

技術文件：

點擊下載

包裝單位：

1 條

門市據點	各店庫存	門市儲位	位置圖	倉庫儲位	位置圖
龍山門市	1	167-2-40
光復門市	5	168-1-21		A3-07

购买数量：

加入購物車

產品特性

規格說明
中文
English

特性

9FF-1.8M電腦延長線

Key Features

With DB9 cables you will no longer sacrifice convenience when it comes to the placement of computer peripherals in your work area! Let us give you the flexibility to add an existing piece of hardware wherever you need it. Our DB9 extension cables can convert your existing connections or replace the cables that restrict you. Each extension cable comes fully shielded to prevent against unwanted EMI/RFI interference, & its fully-molded design delivers excellent strain relief.

Specification

Cable:
●Length: 6ft

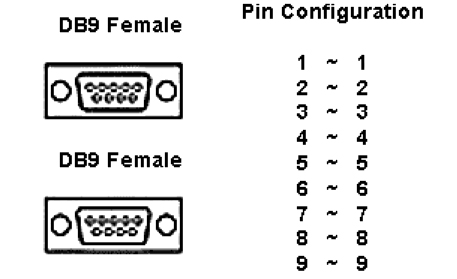

●Connectors: 2x DB9-Female
●Conductors: 28 Awg (7/0.12)
●Color: Beige Jacket

Materials:
●Contacts: Gold Flash 1u
●Shell: Tin-Plated
●Wire Insulation: PVC
●Foil Sheild: Aluminum Mylar
●Jacket: PVC
●Insulator Material: Polyester Resin & Glass Fiber Reinforced (UL94V--0)

Electrical:
●Current Rating: 1 Amp
●Dielectric Withstanding Voltage: AC 500V (for 1 minute)
●Insulation Resistance: 1000MOhms Min. @ 500V DC
●Contact Resistance: 15MOhms Max. Mated
●Working Temperature: -55 deg. C to 105 deg. C
●Safety: UL94V--0
