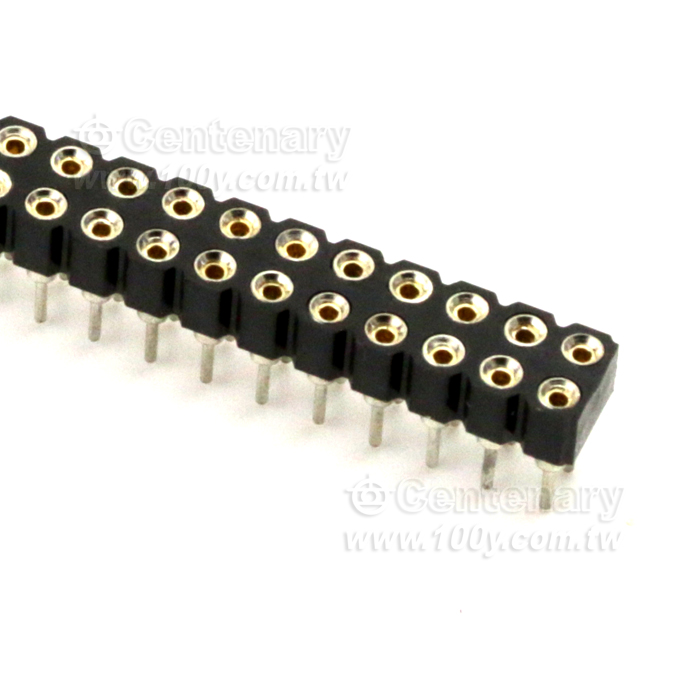

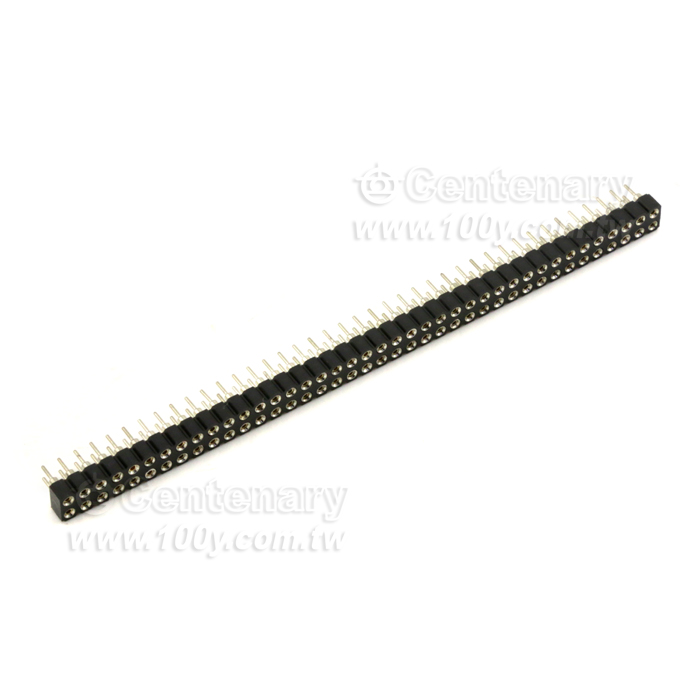

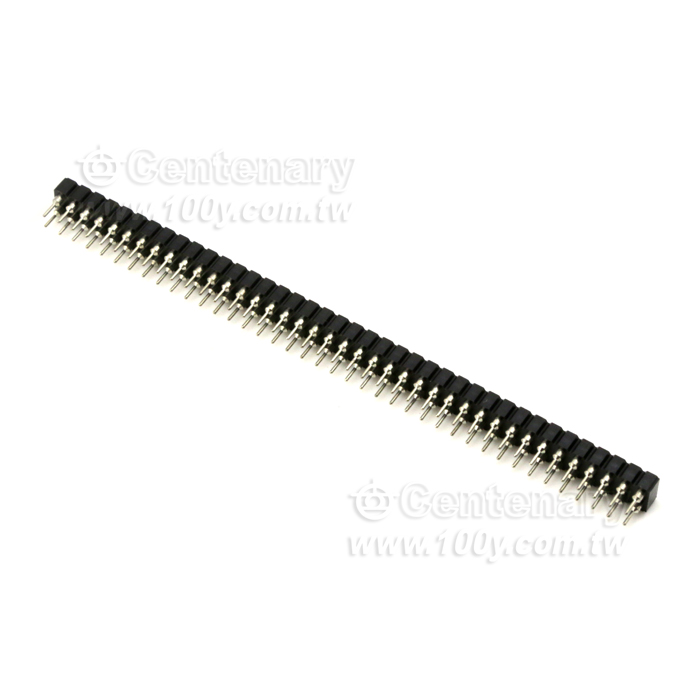

圓短針母雙排座2*40P【ROHS】
- 特性
C16-圓短針母雙排座
單排座
雙排座
商品規格
Matierial
Pin(outer sleeve):Brass,machined
Clip(cotact 4 finger):Beryllium Copper,heat treated
Plating(outer sleeve)
Tin plated:2mm/80u"Ni, 5mm/200μ"Sn
Plating(coctact):2mm/80u"Ni, gold or Tin plated
Insulator(black):Glass filled thermoplastic polyester UL94V-0
Electrical
Current rating:3Amps/contact max.
Contact resistance:≤4mΩ/contact
Insulation resistance:≥1000MΩ at V=100V
Operaing voltage:60VAC/DC
Mechanical
Average insertion force with steel pin of Φ0.43mm/0.017":<250g
Average withdrawal force with steel pin of Φ0.43mm/0.017":>50g min.
Mechanical life cycle:min.200
Operaing temperatures:Gold Plsted:-55°C to+ 150°C、Tin plated:-40°C to+ 150°C
Soldering temperature:+260°C,10s max.
