鋁合金水平氣泡儀
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 36 | 167-1-67 |  | | |
| 光復門市 | 0 | 170-1-13 | | A3-04 | |
- 特性

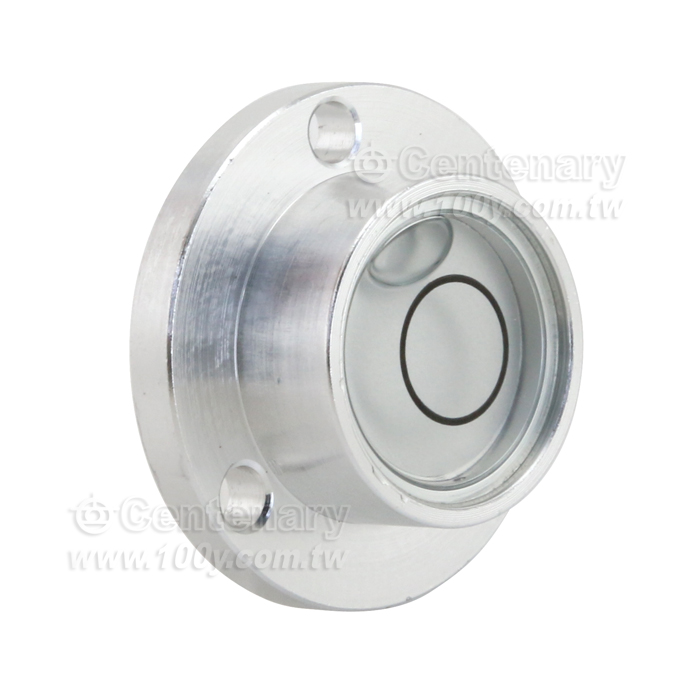

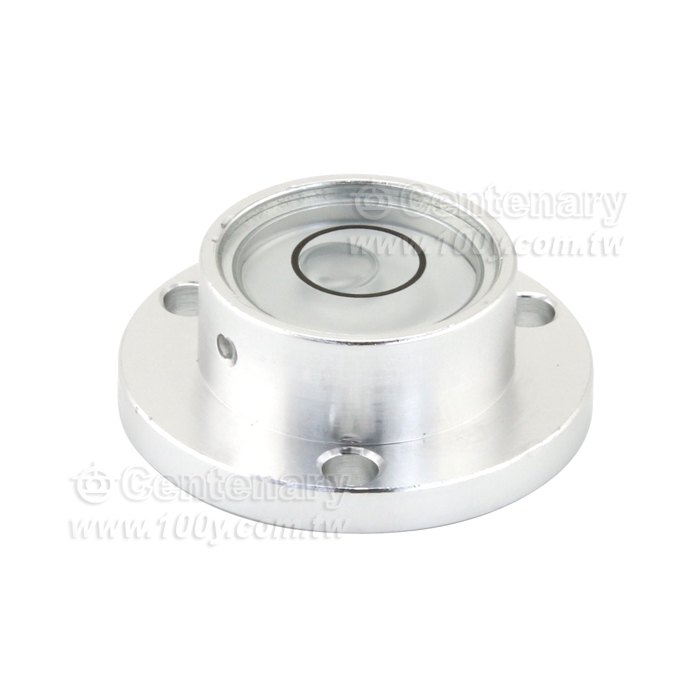

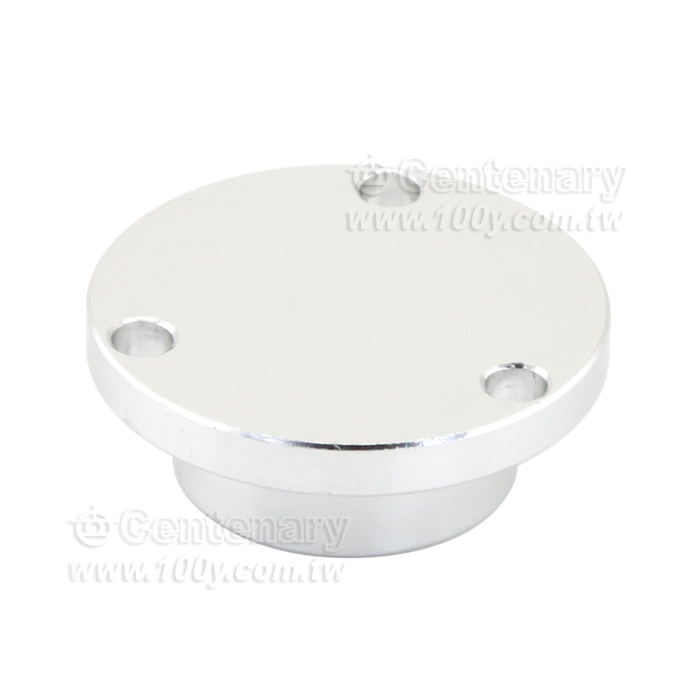

EP-ML02鋁合金水平氣泡儀
Specifications
Material：Lead-free glass
Diameter：4.5mm, 20mm±0.1,30mm±0.1
Wall Thickness：0.9mm
Length：16--150mm
Total Length：Add: 5-22.5mm
Precision：4S-30M/2mm（Tolerance±1’）
Bubble Size：XY mm（Tolerance±0.1）/20°C
Liquid in Side：ROHS purity solvents
Work Temperature：-40°C — +60°C
Store Temperature：-50°C — +70°C
Bubble change：0.02mm/°C
Bubble hit time：5S
Temperature：Blisters at minus 40 ° C or zero on the 70 ° C, do the 24 hours temperature, recovery at room temperature, the constant bubble size, liquid flow nabated.
Note
A :company’s annual production of different metal round blisters.
Diameter 6 - 200mm range
Accuracy 4’- 120 ’range
Height of 6 - 20mm range
B: materials: copper shell, aluminum, stainless steel shell, cast iron shell and other four materials
