RGB color sensor【ROHS】
NT$600
Part No：
19765
Product No：
S9032-02
品牌：
HAMAMATSU
說明：
技術文件：
包裝單位：
1 個
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 0 |  | | ||
| 光復門市 | 7 | 166-1-22 | | |
產品特性
- 特性

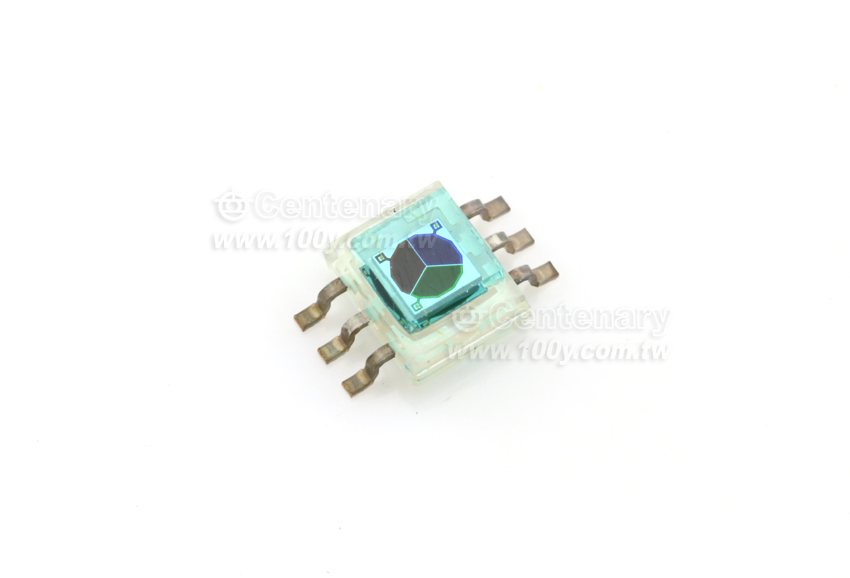

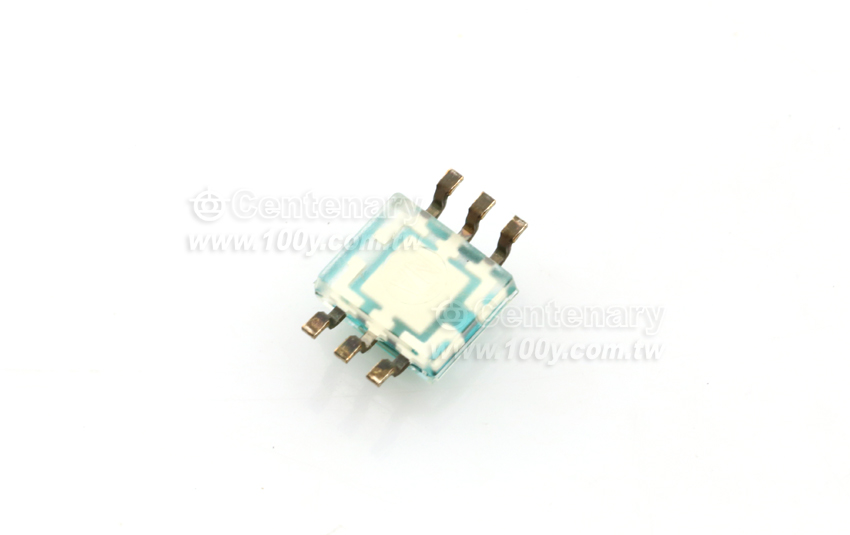

Si photodiode S9032-02 RGB color sensor
Description
S9032-02 is a color sensor molded into a plastic package having a 3-channel (RGB) photodiode sensitive to the blue (λp=460 nm), green (λp=540 nm) and red (λp=620 nm) regions of the spectrum. S9032-02 has a 3-segment (RGB) circular active area of φ2 mm.
Features
3-channel (R, G, B) Si photodiode
●Surface-mount small plastic package

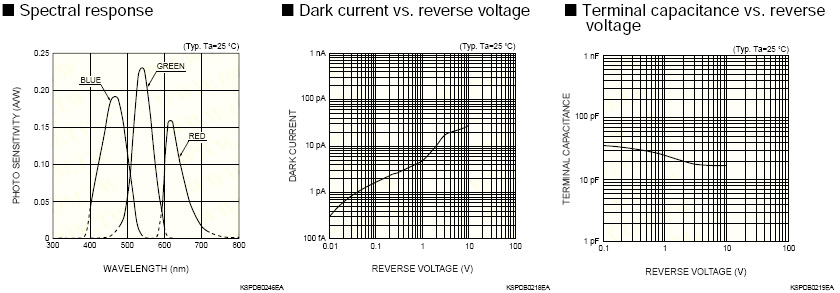

●Spectral response range close to the human eye sensitivity
●No sensitivity in the near IR region

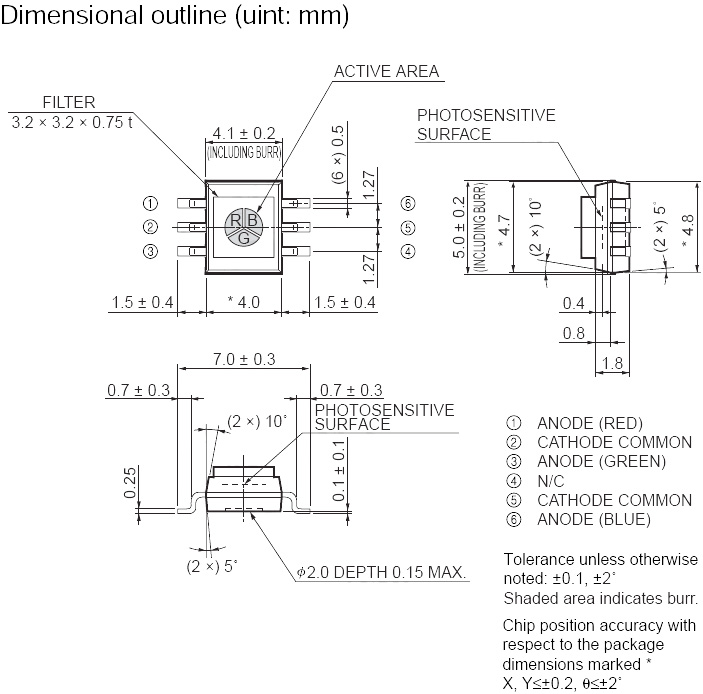

●Active area: 3-segment (RGB) circular active area of ?p2 mm
Applications
●Color adjustment for LED back light system for LCD
●Color adjustment for LCD projector
●Color tester
●Color detection
