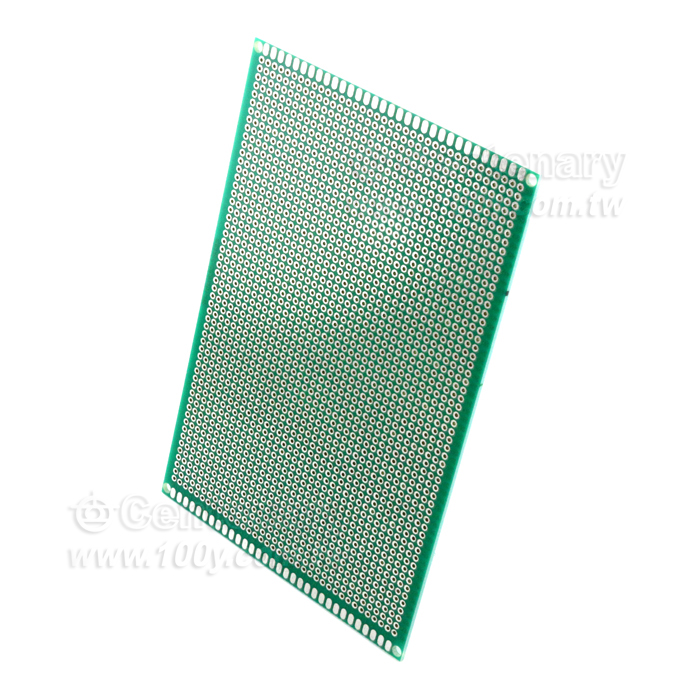

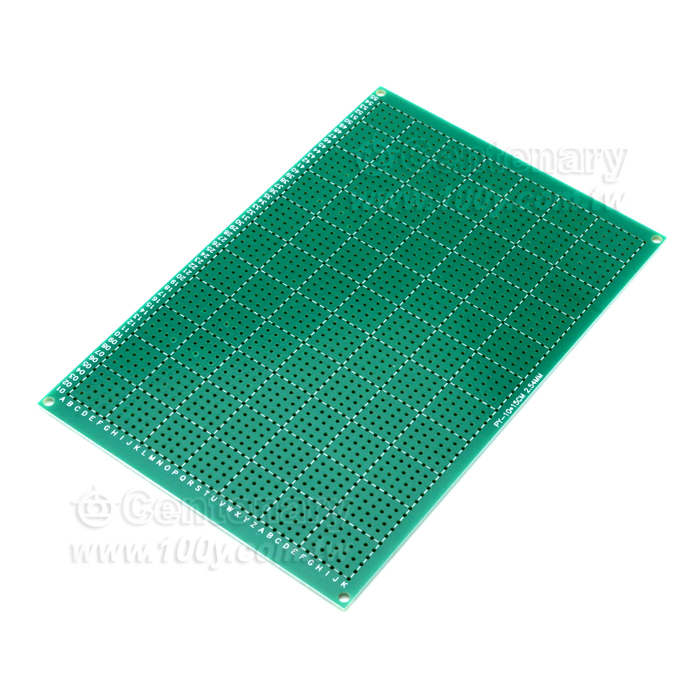

單面-萬用板150L*100Wmm (P:2.54mm)
NT$80
Part No：
2736
Product No：
S100150-1.6-2.54mm
品牌：
說明：
技術文件：
包裝單位：
1 片
| 門市據點 | 各店庫存 | 門市儲位 | 位置圖 | 倉庫儲位 | 位置圖 |
| 龍山門市 | 286 | 167-3-67 |  | 167-3-57D | |
| 光復門市 | 15 | 170-2-25-C | | 166-3-21-B | |
產品特性
- 特性

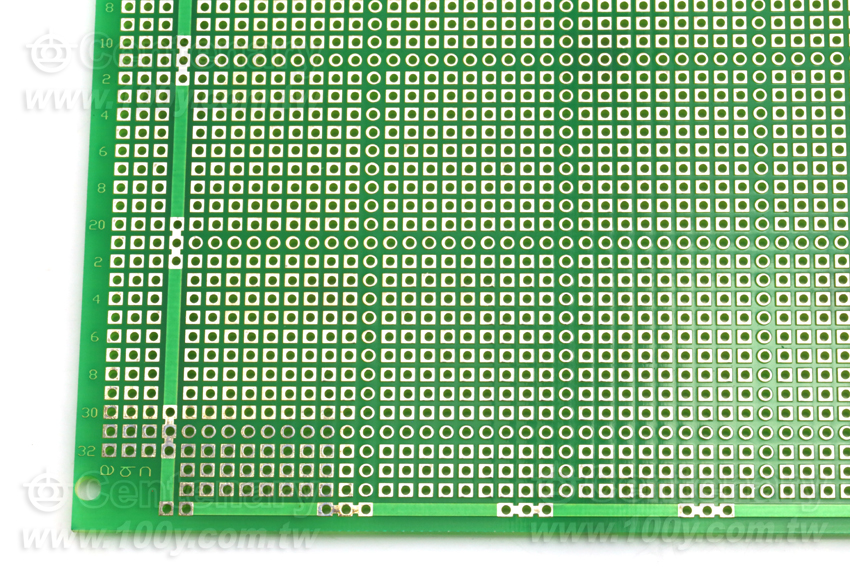

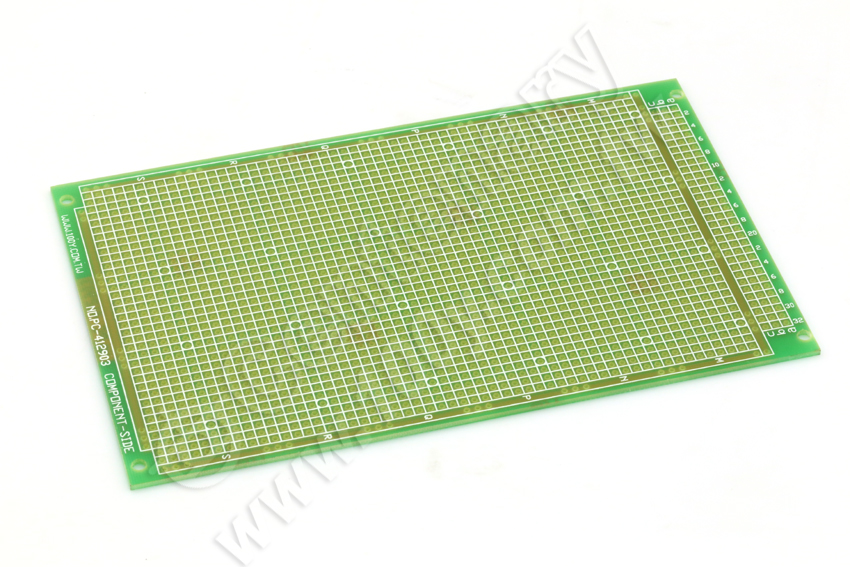

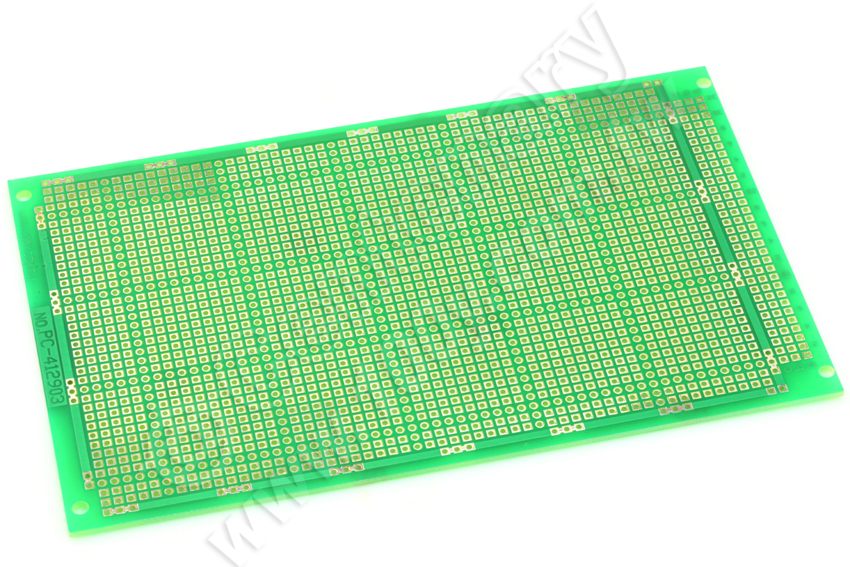

PC-BOARDS-PC-412903
VME-BUS
FEATURES OF VME-BUS SERIES BOARDS
●Standard VME-BUS Compatible board.
The Boards below feature:
●Board Length---------------6-5/16” (160mm)
●Board Width----------------3-15/16”(100mm)
●Power buses
●Single Sided
●Pad-per-Hole
STANDARDS
●FR-4 Epoxy glass base, 0.062” thick.
●Solder-plated, 2-ounce copper.
●Durable conformal coating.
●Gold plated edge connectors.
●Plated through holes.
●Accurate silk-screening & positional markings.
●0.042” DIA. Hole.
●0.1” Hole spacing.
