液晶式分厘錶12.7mm-數顯百分表

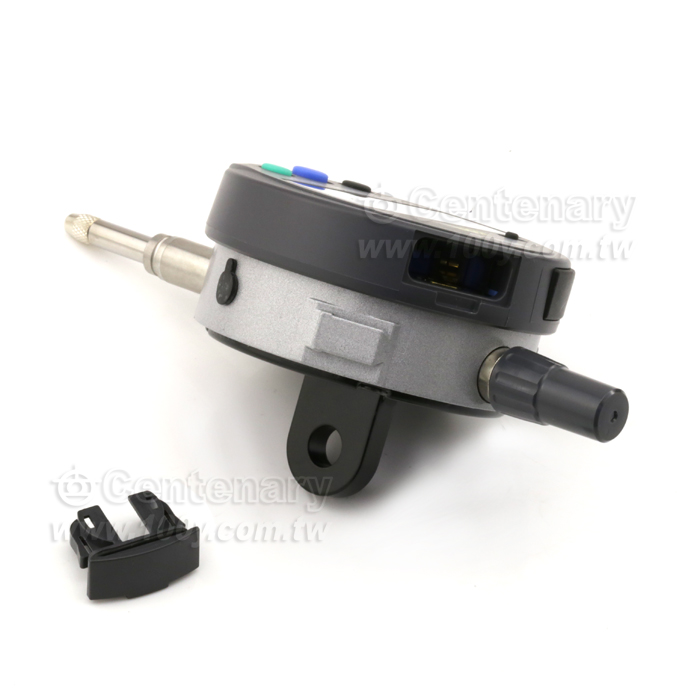

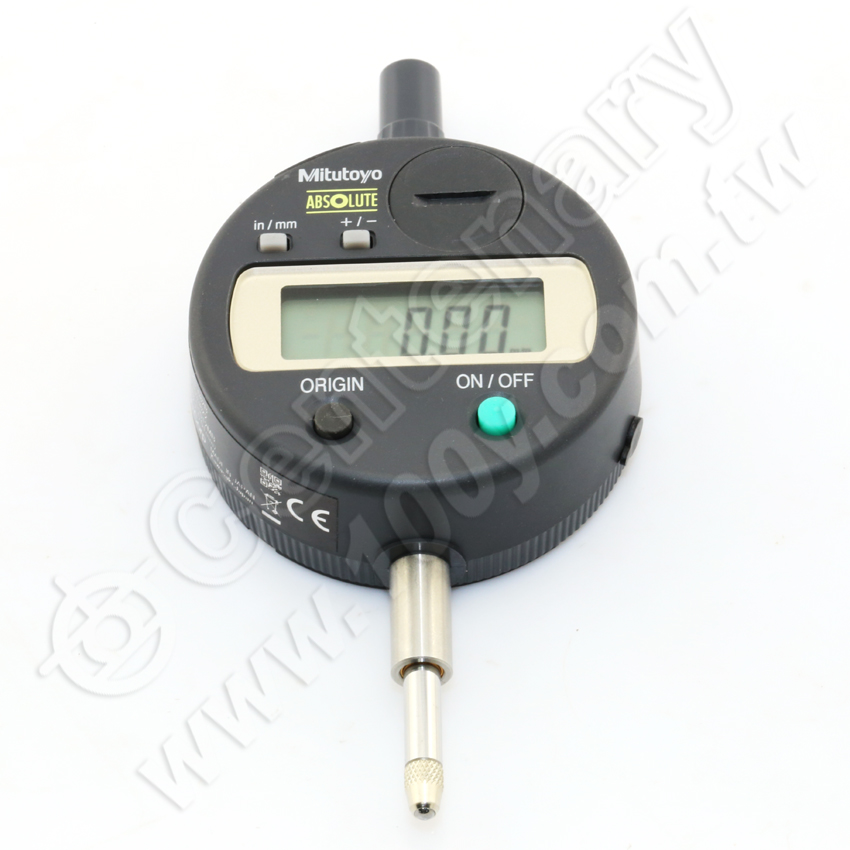

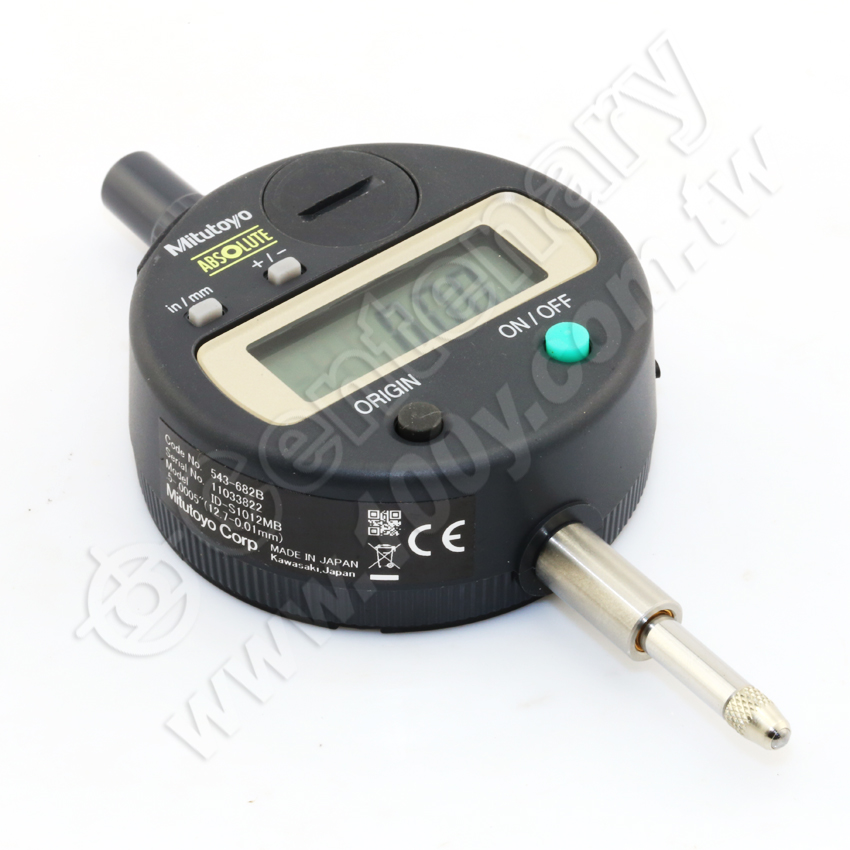

Mitutoyo 543-682 ID-S液晶分厘錶




FEATURES



●As compact as standard Series 2 dial indicators.
●The ID-S indicates the absolute position of the spindle from the origin point at power-on, allowing measurement to start immediately.
●Zero-setting is performed with the ORIGIN button, and this setting does not have to be repeated during the entire life of the battery, even after power-off.
●Measurement error due to spindle overspeed is eliminated with the ABSOLUTE Encoder.
●SPC data output.




Technical Data



Accuracy: Refer to the list of specifications (excluding quantizing error)
Resolution: 0.01mm, 0.001mm, .0005"/0.01mm, .0001”/0.001mm or .00005”/0.001mm
Display: LCD Character Height 8.5mm
Scale type: ABSOLUTE electrostatic linear encoder
Max. response speed: Unlimited
Measuring force: Refer to the list of specifications
Stem dia.: 8mm (ISO/JIS type) or 3/8” (ANSI/AGD type)
Contact point: Carbide ball with M2.5x0.45 (ISO/JIS type) / Carbide ball with #4-48UNF (ANSI/AGD type)
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 20,000 hours under normal use
Dust/Water protection level: IP42 (IP53: 543-694, 543-695, 543-696)




Function



Origin-set, (Zeroset), Counting direction switching, Power
ON/OFF, Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error




Optional Accessories



905338: SPC cable (1m)
905409: SPC cable (2m)
02AZD790F: SPC cable for U-WAVE(160mm)
903424: Spindle lifting lever (ISO/JIS type)
903425: Spindle lifting lever (ANSI/AGD type)
540774: Spindle lifting cable
02ACA376: Spare rubber boot (for dust-proof type)
02ACB610: Back with post
02ACB630: Adjustable back
02ACB640: Back with offset lug
02ACB650: Magnetic back
02ACB670: Back with screw mount
02ACB680: Back with adjustable bracket

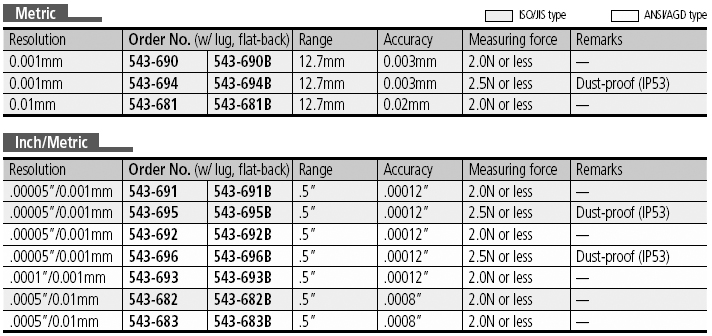

SPECIFICATIONS

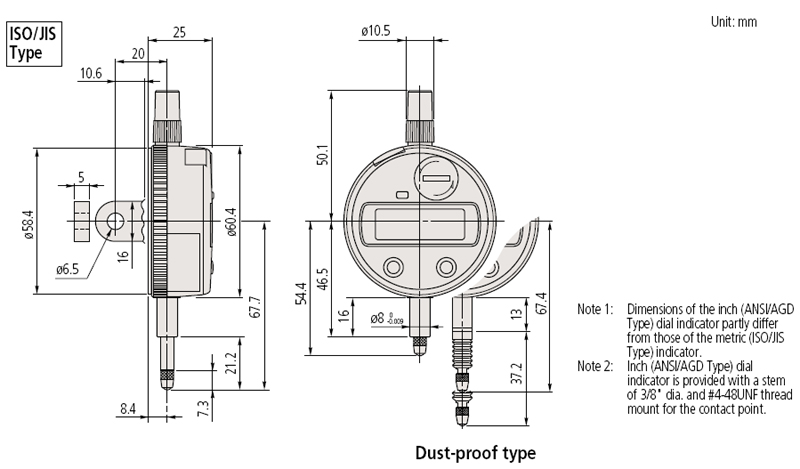

DIMENSIONS
